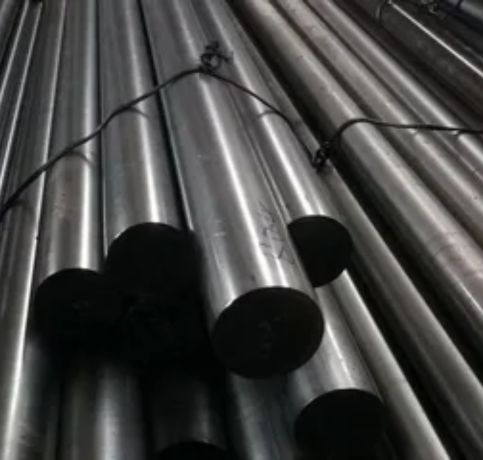

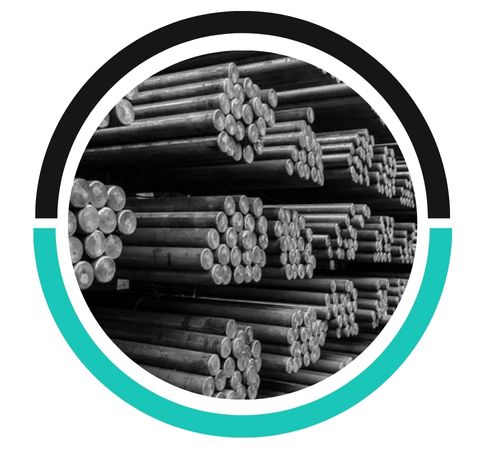

Aiman Metals stands out as a top manufacturer and supplier based in Kuala Lumpur, Malaysia, specializing in high-quality 1035 Round Bars that cater to a wide range of industrial and engineering needs. These bars are recognized for their medium carbon content, impressive strength, and excellent machinability, making them perfect for both structural and precision applications. At Aiman Metals, we take pride in crafting these bars to meet exacting standards, ensuring they deliver consistent performance and long-lasting durability. Our 1035 Round Bars come in various sizes, lengths, and finishes, all designed to meet strict industry standards, making them ideal for use in automotive, machinery, construction, and general fabrication sectors where strength and reliability are crucial.
The 1035 Round Bar features a composition of about 0.32–0.38% carbon, along with controlled amounts of manganese, phosphorus, and sulfur. This well-balanced mix results in a great combination of tensile strength, hardness, and machinability. Typically, you can expect mechanical properties like a tensile strength ranging from 570 to 700 MPa, a yield strength around 350 MPa, and good ductility, which allows for easy machining, welding, and heat treatment. These traits make the 1035 Round Bar a solid choice for applications that need moderate strength while still allowing for further processing.
|
Element |
Content |
|---|---|
|
Carbon, C |
0.310 – 0.380 % |
|
Iron, Fe |
98.63 – 99.09 % |
|
Manganese, Mn |
0.60 – 0.90 % |
|
Phosphorous, P |
0.040 % |
|
Sulfur, S |
0.050 % |
|
Properties |
Metric |
Imperial |
|---|---|---|
|
Tensile strength, ultimate |
585 MPa |
84800 psi |
|
Tensile strength, yield |
370 MPa |
53700 psi |
|
Modulus of elasticity |
190-210 GPa |
29700-30458 ksi |
|
Bulk modulus (typical for steel) |
140 GPa |
20300 ksi |
|
Shear modulus (typical for steel) |
80 GPa |
11600 ksi |
|
Poissons ratio |
0.27-0.30 |
0.27-0.30 |
|
Elongation at break (in 50 mm) |
30% |
30% |
|
Reduction of area |
53% |
53% |
|
Hardness, Brinell |
183 |
183 |
|
Hardness, Knoop (converted from Brinell hardness) |
204 |
204 |
|
Hardness, Rockwell B (converted from Brinell hardness) |
89 |
89 |
|
Hardness, Vickers (converted from Brinell hardness) |
192 |
192 |
|
Machinability (based on AISI 1212 steel. as 100 machinability) |
65 |
65 |
| EN Name | EN Number | DIN | JIS | UNI | BS |
|---|---|---|---|---|---|
| C35 | 1.0501 | C35, CM35 | S35C | C35 | 970 070M36 |
1035 Round Bar is not recommended for cryogenic applications as it may become brittle at extremely low temperatures.
To choose the right 1035 Round Bar, consider factors like the required strength, machinability, and specific application needs, ensuring it aligns with your project’s requirements.
Yes, 1035 Round Bar is recyclable and can be reused in various applications.
In the automotive industry, 1035 Round Bars are commonly used to create shafts, studs, bolts, and various machine components. In construction, they play a vital role as structural supports, reinforcement elements, and general-purpose frameworks. The machinery sector also benefits from these bars, using them to manufacture gears, axles, and crankshafts thanks to their ideal balance of strength and machinability. They are also well-suited for forging, heat treatment, and custom fabrication. With their dependable mechanical properties and versatility, 1035 Round Bars are a smart and cost-effective option for a multitude of industrial applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
