Aiman Metals, located in Kuala Lumpur, Malaysia, is a reputable manufacturer and supplier that specializes in top-notch Alloy 20 forgings. With years of expertise and a keen eye for precision engineering, Aiman Metals delivers exceptional forgings designed to meet the rigorous demands of various industries. The company prides itself on its unwavering commitment to quality, timely delivery, and customer satisfaction. Alloy 20, known for its corrosion-resistant properties, is a highly sought-after nickel-iron-chromium alloy, perfect for challenging environments. Aiman Metals guarantees that each forging adheres to strict industry standards, making them a dependable partner for industrial metal solutions in Malaysia and beyond.
Alloy 20, often referred to as Carpenter 20, primarily consists of nickel (32–38%), chromium (19–21%), iron (the balance), along with molybdenum (2–3%), copper (3–4%), and trace amounts of manganese and silicon. This unique blend provides outstanding resistance to sulfuric acid and chloride stress corrosion cracking. In terms of mechanical properties, Alloy 20 boasts a tensile strength of about 80 ksi (550 MPa), a yield strength of around 35 ksi (240 MPa), and an elongation of 30–35%. It maintains excellent mechanical integrity across a broad temperature range, making it perfect for high-stress, corrosive environments.
| Specifications | ASTM B462, ASME SB462 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |

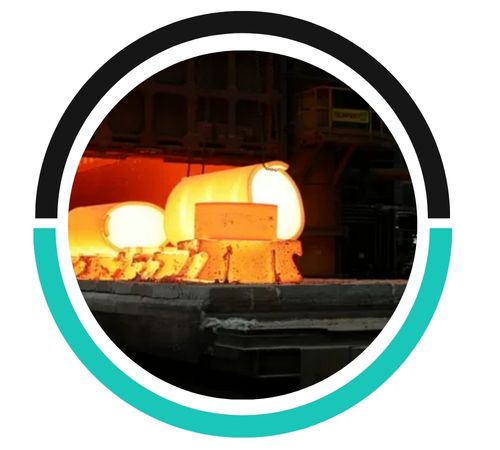

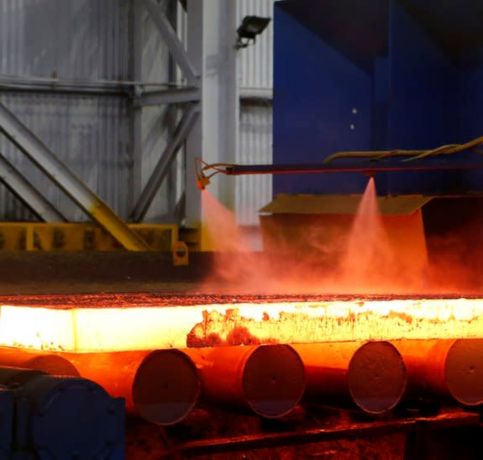

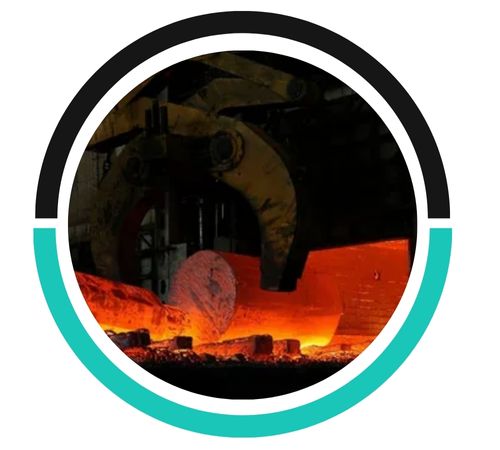

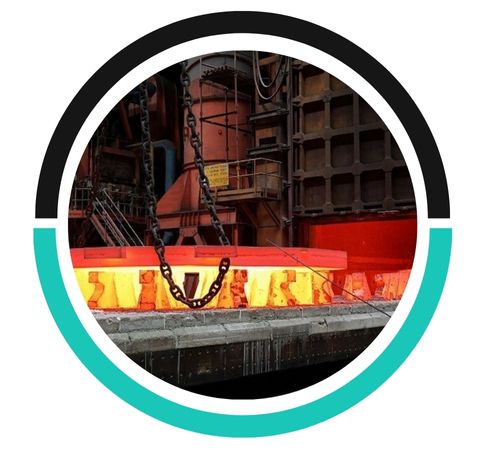

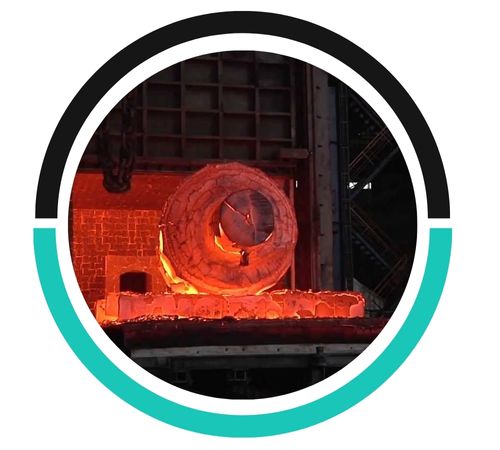

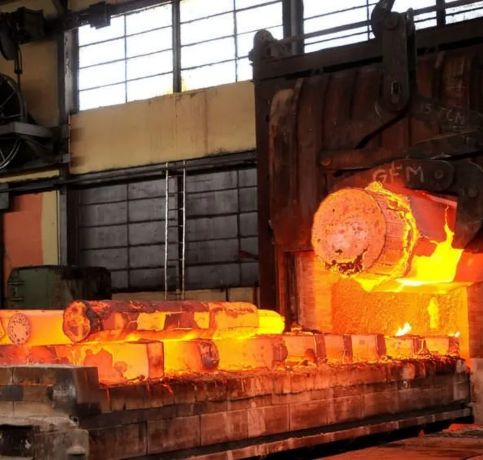

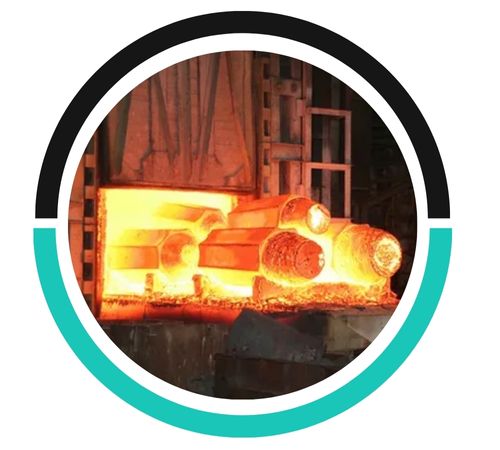

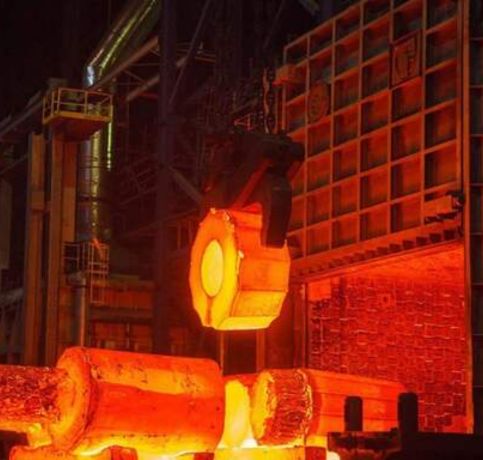

| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | C | Mn | Si | S | Cu | Ni | Cr | Fe | Mo | P |
| Alloy 20 | 0.07 max | 2.00 max | 1.00 max | 0.035 max | 3.00 – 4.00 | 32.00 – 38.00 | 19.00 – 21.00 | 29.85 min* | 2.00 – 3.00 | 0.045 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy 20 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi – 35,000, MPa – 241 | 30 % |
| STANDARD | WERKSTOFF NR. | UNS | EN | AFNOR |
| Alloy 20 | 2.4660 | N08020 | NiCr20CuMo | Z2NCUD31-20AZ |
Alloy 20 forgings find extensive use in industries where resistance to acidic and corrosive conditions is essential. They are commonly utilized in chemical processing equipment, heat exchangers, pickling equipment, as well as in pharmaceutical and food processing machinery, and storage tanks for sulfuric acid. Thanks to its remarkable resistance to pitting, crevice corrosion, and stress corrosion cracking, Alloy 20 is ideal for managing harsh chemicals and high-pressure systems. Additionally, its durability and long service life make it a popular choice in marine and power generation sectors.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
