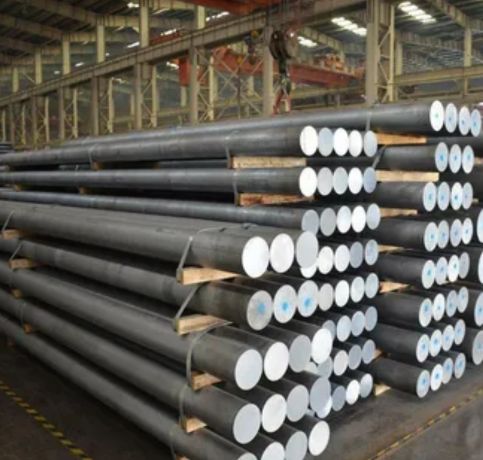

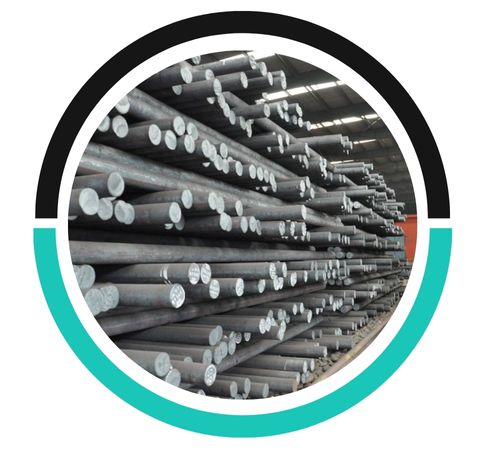

Aiman Metals is a well-respected manufacturer and supplier of Alloy 20 round bars located in Kuala Lumpur, Malaysia. Known for providing top-notch metal products, Aiman Metals focuses on delivering corrosion-resistant Alloy 20 round bars that adhere to international standards. The company caters to a diverse array of industries, including chemical processing, pharmaceuticals, and marine engineering. With a strong dedication to precision, durability, and customer satisfaction, Aiman Metals guarantees that every Alloy 20 round bar is produced under strict quality control, making them a trustworthy partner for high-performance metal solutions in both local and global markets.
Alloy 20 round bars are primarily made up of nickel (32–38%), iron (the balance), chromium (19–21%), copper (3–4%), and molybdenum (2–3%), along with trace amounts of manganese and silicon. This well-balanced composition provides exceptional resistance to sulfuric acid and general corrosion. In terms of mechanical properties, Alloy 20 boasts a tensile strength of about 80 ksi (550 MPa), a yield strength of roughly 35 ksi (240 MPa), and an elongation of 30–35%. These characteristics make it ideal for high-stress environments while ensuring excellent structural integrity across a range of temperatures and chemical exposures.
Alloy 20 Round Bar Specification : ASTM B473 , ASME SB473
Dimension Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Size : 14mm-300mm
Thickness : 50 mm to 6000 mm Long
Length : 1 To 6 Meters, Custom Cut Length

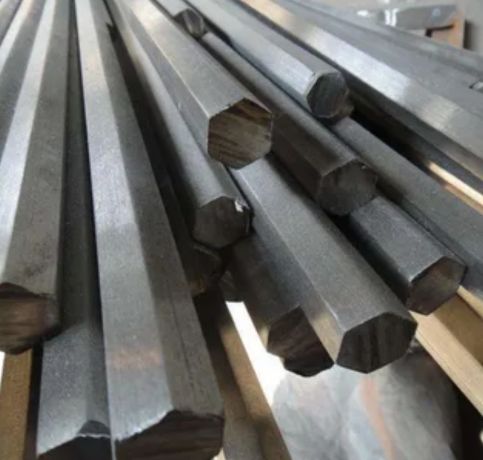

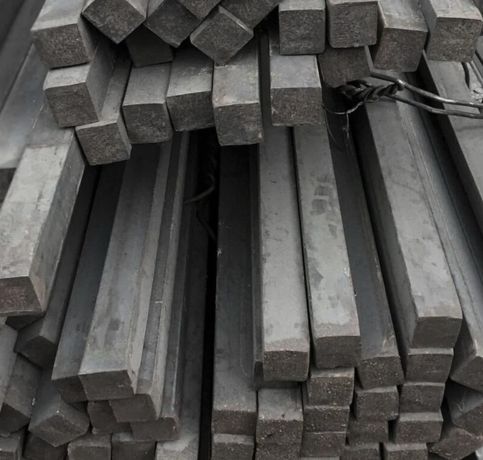

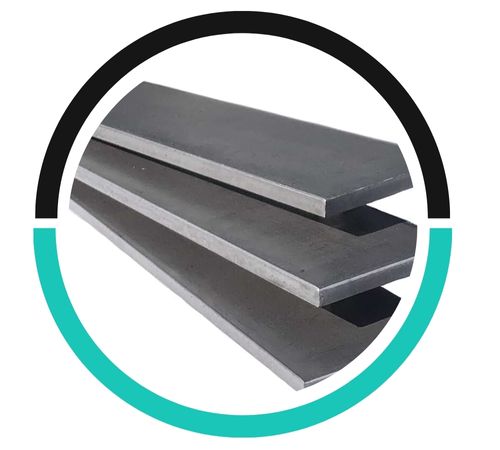

Form : Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc.
| Grade | C | Mn | Si | S | Cu | Ni | Cr | Fe | Mo | P |
|---|---|---|---|---|---|---|---|---|---|---|
| Alloy 20 | 0.07 max | 2.00 max | 1.00 max | 0.035 max | 3.00 – 4.00 | 32.00 – 38.00 | 19.00 – 21.00 | 29.85 min* | 2.00 – 3.00 | 0.045 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Alloy 20 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi – 35,000, MPa – 241 | 30 % |
| STANDARD | UNS | WNR. | EN | AFNOR |
|---|---|---|---|---|
| Alloy 20 | N08020 | 2.4660 | NiCr20CuMo | Z2NCUD31-20AZ |
Type | SIZES (mm) | ISO Tolerance | SIZES (Inches) |
|---|---|---|---|
Peeled and Polished | 40.00 to 150.00 | h11-DIN 1013 | 1.50″ to 6.00″ |
Cold Drawn and Ground | 10.00 to 75.00 | h9-h8-h11-h10 | 5/6″ to 2.50″ |
Cold Drawn and Polish | 3.00 to 75.00 | h9-h8-h11-h10 | 1/8″ to 3.00″ |
Peeled and Ground | 20.00 to 50.00 | h10-h9-h11 | 3/4″ to 2.00″ |
Cut to size on request (tolerance +2/-0 mm). Standard lengths of Alloy 20 Bars 2000 mm up to 6000 mm available
50.0 | 6.0 |
65.0 | 9.0 |
55.0 | 7.0 |
45.0 | 5.0 |
70.0 | 10.0 |
60.0 | 8.0 |
75.0 | 12.0 |
90.0 | 20.0 |
80.0 | 16.0 |
130.0 | 30.0 |
100.0 | 25.0 |
160.0 | 35.0 |
120.0 | 40.0 |
Alloy 20 round bars find extensive use in industries that demand outstanding corrosion resistance. They are frequently employed in the production of chemical process equipment, food and beverage manufacturing systems, pharmaceutical machinery, and marine components. Thanks to their remarkable resistance to sulfuric acid, pitting, and chloride-induced corrosion, these bars are perfect for applications in heat exchangers, reactor vessels, tanks, and piping systems. Their strong mechanical properties and excellent weldability also make them suitable for structural applications in challenging environments
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
