Aiman Metals supplies Aluminium 3003 Bars and Rods, a versatile and corrosion-resistant alloy commonly used in general-purpose applications throughout Malaysia. Manufactured in Kuala Lumpur, our 3003 products are recognized for their great workability and moderate strength. This manganese-alloyed grade is perfect for both decorative and structural purposes, offering excellent formability and resistance to oxidation. Aiman Metals produces these bars and rods in custom shapes and sizes to ensure they meet your technical needs for strength, appearance, and performance.
Aluminium 3003 consists mainly of aluminium (about 96.8–99%) with manganese (1.0–1.5%) and traces of iron and copper. It has a tensile strength ranging from approximately 130 to 200 MPa. This alloy cannot be heat-treated but gains moderate strength through cold working. It offers good corrosion resistance, excellent formability, and weldability, making it suitable for applications requiring easy fabrication and surface finishing.
| Aluminium Alloy | ASTM B211, B211, B565, B316 5082, AMS 4121 |
| Standard | ASTM, ASME, AMS, GB/T, JIS |
| Aluminium Round Bar Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |

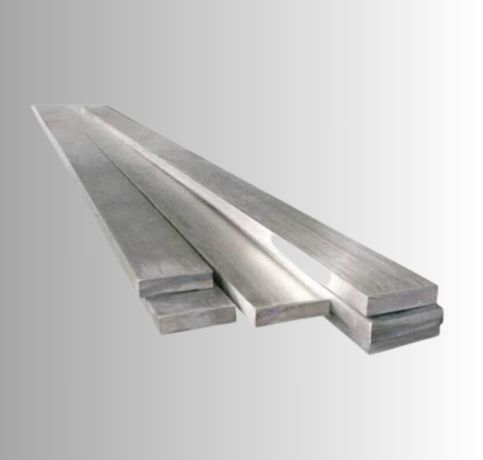

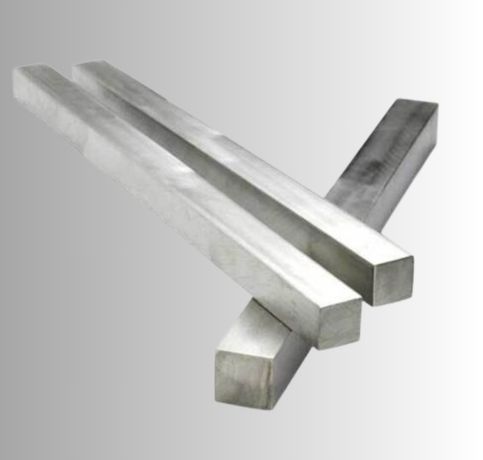

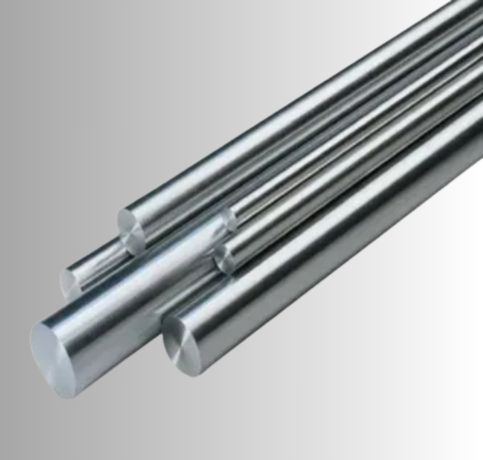

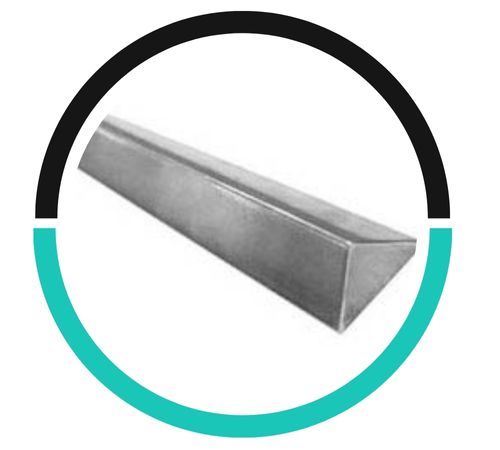

| Aluminium Bar Form | Aluminium Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |
| Aluminium Round Bar Diameter | 0.1-600mm,etc |
| Aluminium Hexagonal Bar | 0.1-600mm,etc |
| Aluminium Angle Bar Size | 0.5mm*40mm*40mm-20mm*400mm*400mm |
| Aluminium Flat Bar Thickness | 0.1-600mm,etc |
| Aluminium Flat Bar Size | 1-2500mm, etc |
| Aluminium Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |

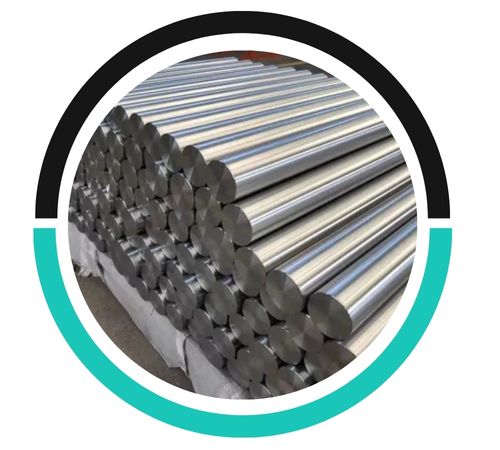

| Aluminium Bar | Bright, Polish & Black |
| Grade | Al | Cr | Cu | Fe | Mg | Mn | Other Total | Si | Ti | Zn |
| min. | Remainder | – | 0.05 to 0.20% | 0.7% | – | 1.0 to 1.5% | 0.15% | 0.6% | – | 0.10% |
| Properties | Metric | Imperial |
| Tensile strength | 130 MPa | 18855 psi |
| Yield strength | 125 MPa | 18130 psi |
| Shear strength | 83 MPa | 12039 psi |
| Fatigue strength | 55 MPa | 7977 psi |
| Elastic modulus | 70-80 GPa | 10153-11603 ksi |
| Poisson’s ratio | 0.33 | 0.33 |
| Elongation | 10% | 10% |
| Hardness | 35 | 35 |
| STANDARD | UNS | WERKSTOFF NR. |
| Aluminium 3003 | A93003 | 3.0517 |
| Size in mm | Average Weight | |
| KG/MTR | KG/FT | |
| 10 | 0.62 | 0.18 |
| 12 | 0.90 | 0.30 |
| 14 | 1.20 | 0.40 |
| 16 | 1.60 | 0.50 |
| 18 | 2.00 | 0.60 |
| 20 | 2.50 | 0.80 |
| 22 | 3.00 | 0.90 |
| 24 | 3.56 | 1.08 |
| 25 | 3.90 | 1.20 |
| 28 | 4.80 | 1.50 |
| 30 | 5.55 | 1.69 |
| 32 | 6.30 | 1.90 |
| 34 | 7.14 | 2.18 |
| 36 | 8.00 | 2.44 |
| 40 | 9.90 | 3.00 |
| 45 | 12.49 | 3.81 |
| 50 | 15.40 | 4.70 |
| 56 | 19.34 | 5.89 |
| 60 | 22.20 | 6.80 |
| 63 | 24.47 | 7.46 |
| 63.5 | 24.86 | 7.58 |
| 65 | 26.05 | 7.94 |
| 70 | 30.20 | 9.20 |
| 73 | 32.86 | 10.00 |
| 75 | 34.72 | 10.58 |
| 78 | 37.51 | 11.43 |
| 80 | 39.50 | 12.00 |
| 83 | 42.47 | 12.95 |
| 85 | 44.55 | 13.58 |
| 90 | 50.00 | 15.20 |
| 92 | 52.19 | 15.91 |
| 93 | 53.39 | 16.27 |
| 95 | 55.65 | 16.95 |
| 100 | 61.66 | 18.79 |
| 105 | 67.98 | 20.72 |
| 110 | 74.60 | 22.74 |
| 115 | 81.64 | 24.88 |
| 125 | 96.34 | 29.36 |
Yes, Aluminium 3003 bars can be welded using standard welding techniques, such as TIG or MIG welding. Its excellent corrosion resistance and weldability make it ideal for various applications.
Yes, Aluminium 3003 bars and rods are suitable for hygienic and sanitary applications due to their corrosion resistance, lightweight nature, and excellent ability to withstand moisture and chemical exposure.
Aluminium 3003 bars have excellent corrosion resistance due to their manganese content, making them highly resistant to rust and chemical exposure in most environments, including marine and industrial settings.
Aluminium 3003 Bars and Rods are great for roofing sheets, kitchen equipment, decorative trims, siding, gutters, and storage tanks. In HVAC systems, it is used for air ducts and coil stock because of its corrosion resistance and ductility. It is also used in fuel tanks, cooking utensils, and cladding panels. Its non-toxic, non-sparking, and lightweight qualities make it suitable for various consumer and industrial applications that do not require high structural strength.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Aiman Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Kuala lumpur, Malaysia
