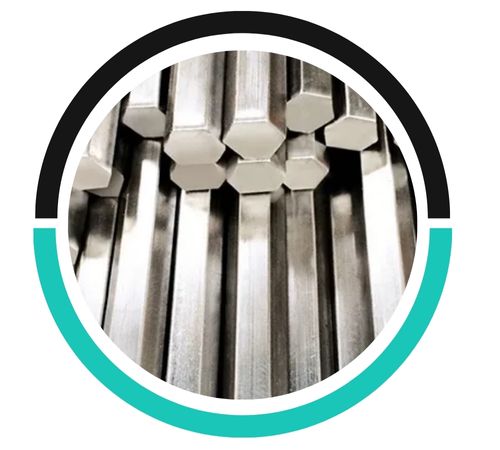

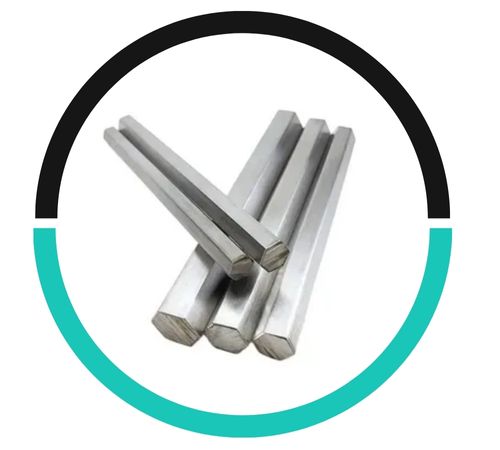

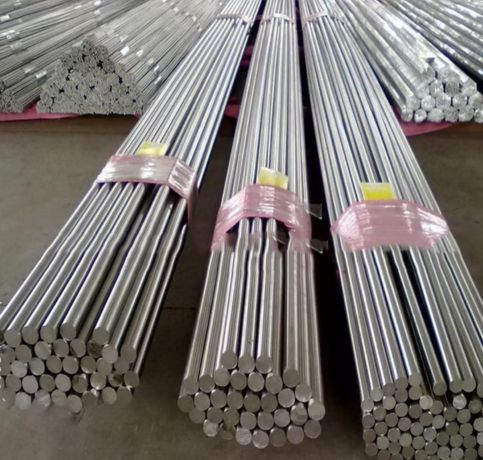

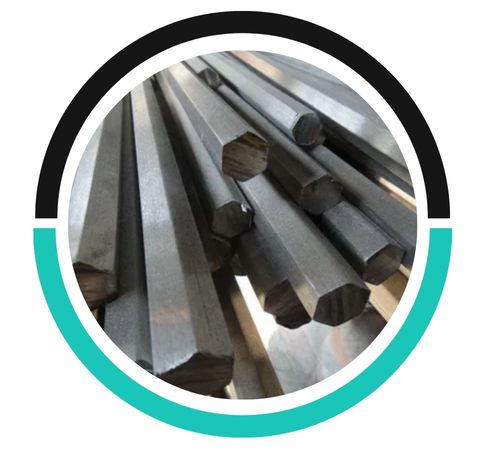

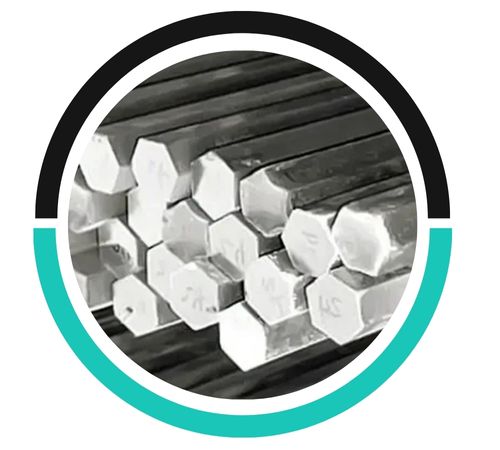

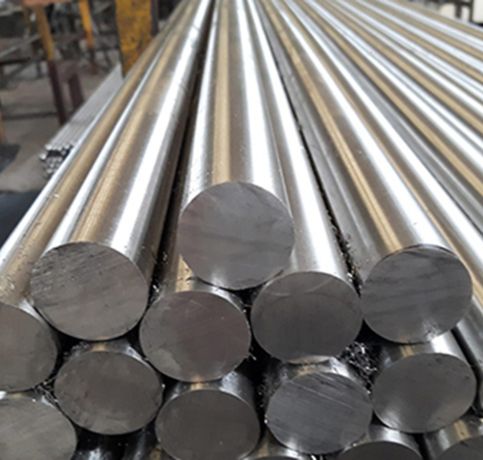

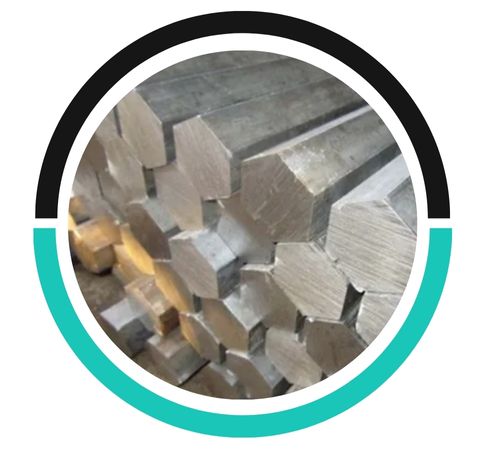

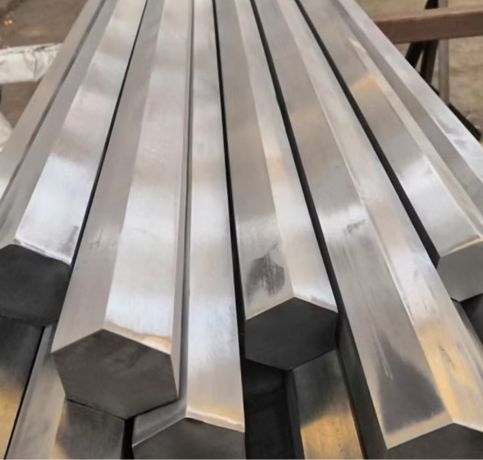

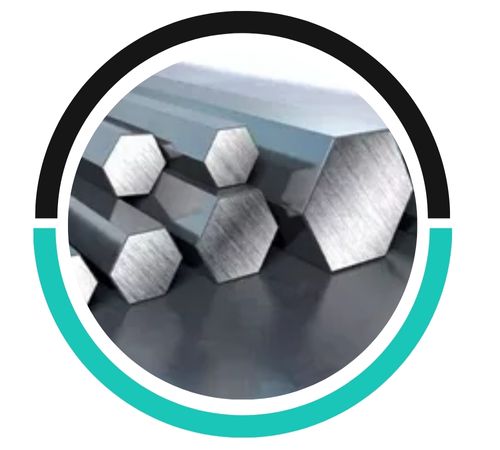

Aiman Metals distributes top-quality Aluminium Hex Bar and Rods in Kuala Lumpur, Malaysia, for mechanical, decorative, and fasteners use. Aluminium hexagonal bars have six-sided cross-sections, offering high grip and torque characteristics when applied to nuts, bolts, and connectors. Produced in different grades of alloys and diameters, the aluminium hex bars provide strength, corrosion resistance, and smooth machinability. Aiman Metals supplies aluminium hex bars that meet stringent tolerance and industry standards, suitable for machining, assembling, and architectural fittings where functionality and aesthetics matter.
Aluminium Hex Bars are generally produced from alloys such as 6061, 2011, or 7075 based on strength and machinability requirements. They provide tensile strength of 200–550 MPa and very good surface finish. Their shape provides even force distribution, perfect for fasteners and high-torque fittings. Aluminium Hex Bars are resistant to corrosion, weld– and anodize-friendly, and ideal for both architectural and decorative usage. Mechanical properties differ according to alloy, enabling adaptability between light-duty and high-performance industrial applications.
Standards : ASTM B221, B211, B565, B316, AMS 4121 2014
Temper : O
Standard : ASTM, ASME, AMS, GB/T, JIS
Length : 1000-6000
Size : 5 mm To 500 mm
Diameter : 6-150
Finish : Bright, Polish & Black
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
| Alloy | Fe | Si | Mg | Mn | Cu | Zn | Ti | Cr | Others | AI |
| 1100 (min) | 0.35 | 0.25 | 0.01 | 0.01 | 0.05 | 0.01 | 0.020 | Trace | 0.05 (each) | 99.60% |
| 1100 (max) | 0.50 | 0.35 | 0.03 | 0.05 | 0.20 | 0.05 | 0.030 | Trace | 0.15 (total) | remainder |
| 5083 | 0.40 max | 0.40 max | 4.0 / 4.90 | 0.40 / 1.0 | 0.10 max | 0.25 max | 0.15 max | 0.05 / 0.25 | 0.05 max | Bal |
| 6061 | 0.7 | 0.4-0.8 | 0.8-1.2 | 0.15 | 0.15-0.4 | 0.25 | 0.15 | 0.15-0.35 | 0.005/0.15 | Remainder |
| 6068 | 0.50 max | 0.7 – 1.3 | 0.06-1.20 | 0.40-1.00 | 0.10 max | 0.20 max | 0.10 max | 0.25 max | 0.05 max | Bal |
| 7075 min | 2.10 | 1.20 | 5.10 | 0.18 | ||||||
| 7075 max | 0.50 | 0.40 | 2.90 | 0.30 | 2.00 | 6.10 | 0.20 | 0.28 | 0.05 |
| Alloy | Temper | UTS(Mpa) | % Elongation | Tensile Strength | Hardness Brinell | Proof Stress | Yield Strength (PSI) | Shear Strength (PSI) | Brinell Hardness | |||
| Min | Max | 0.5 mm -0.8 mm | 0.81 mm – 1.30 mm | 1.30 mm – above | ||||||||
| 1100 | O | 75 | 110 | 20 | 25 | 29 | ||||||
| H12 | 95 | 130 | 5 | 6 | 7 | |||||||
| H14 | 110 | 145 | 3 | 4 | 5 | |||||||
| H16 | 130 | 165 | 2 | 3 | 4 | |||||||
| H18 | 150 | — | 2 | 2 | 3 | |||||||
| 5083 | 12 Min % | 275 – 350 MPa | 75 HB | 125 Min MPa | ||||||||
| 6061 | – | 45,000 | 12 | 40,000 | 31,000 | 95 | ||||||
| 6082 | 8 | 295 | 95 | – | 240 | – | – | |||||
| 7075 T6, T651 | 11 | 83-572 | 73- 503 | 150 | ||||||||
| 7075 T73, T7351 | 13 | 73-503 | 63-434 | NA | ||||||||
| Grade | UNS | USA | Japan | France | ISO | WNR | EN | DIN | ISO | BS (OLD) |
| 1100 | A91100 | AA1100 | JIS A1100P | NF 1100 | Al 99.0 Cu. | – | – | – | – | – |
| 6082 | A96082 | AA6082 | – | – | – | 3.2315 | AW-6082 | AlMgSi1 | AlSi1MgMn | HE30 |
| 5083 | A95083 | 5083 | – | – | AlMg4,5Mn0,7 | 3.3547 | AW-AlMg4,5Mn0,7 | AlMg4,5Mn | – | – |
| 6061 | A96061 | AA6061 | – | – | – | 3.3211 | AW-AlMg1SiCu EN AW-6061 | AlMgSiCu | AlMg1SiCu | HE20 |
| 7075 | A97075 | 7075 | 3.4365 | ENAW-AlZn5.5MgCu EN AW-7075 | AlZnMgCu1.5 | AlZn6MgCu | 7075 L95 L96, V95 |
| HEXAGONS | ||
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Aluminium hex bar/rod is commonly used in aerospace, automotive, marine, construction, and manufacturing industries for lightweight structures, electrical components, fasteners, and precision machining due to its strength and corrosion resistance.
Aluminum hex bars are produced through extrusion, casting, or forging, followed by heat treatment and machining. This process enhances strength, dimensional accuracy, and surface finish, ensuring consistent quality and performance.
Yes, aluminum hex bar/rod can be welded. Recommended techniques include Tungsten Inert Gas (TIG) welding for precision, and Metal Inert Gas (MIG) welding for faster, more robust welds.
Aluminium Hex Bars and Rods are applied in fasteners, nuts, bolts, valve stems, hardware parts, and fasteners. They are also designed for use in automotive components, hydraulic fittings, machine parts, and ornamental buildings. In construction and fabrication, hex bars provide a good look as well as dependable mechanical properties. Because of their shape, they are simple to grip and machine due to their symmetrical shape and thus ideal for high-speed turning operations. Industries like aerospace, marine, and electronics are also served by the corrosion-resistant and light properties of these bars.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
