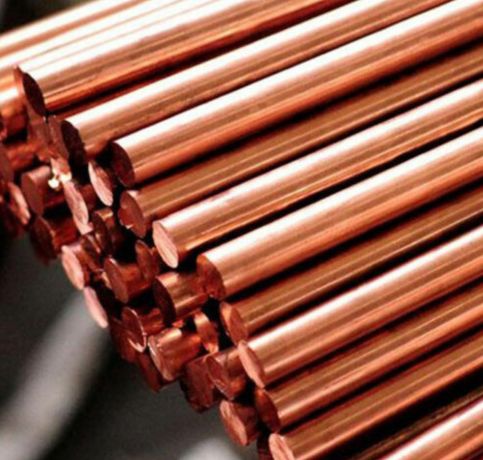

Chuck Metals is a reliable manufacturer and supplier of Beryllium Chromium Copper Bars and Rods based in Singapore, Pulau Ujong. They provide high-strength, high-conductivity materials that cater to the aerospace, automotive, electronics, and tooling industries. This advanced copper alloy boasts an impressive mix of mechanical strength, electrical and thermal conductivity, along with resistance to wear and corrosion. Chuck Metals offers Beryllium Chromium Copper in precision-forged and machined bar and rod forms, adhering to international standards like ASTM B441 or B534. With a strong emphasis on material traceability, dimensional accuracy, and quick delivery, Chuck Metals has established itself as a trusted partner for top-notch copper alloy solutions.
Beryllium Chromium Copper Bars and Rods mainly consist of copper (~97.5%), beryllium (~1.8–2.0%), and chromium (~0.3%), merging the strength of beryllium copper with the enhanced thermal and corrosion resistance provided by chromium. This alloy achieves a tensile strength of up to 1400 MPa (after heat treatment) and retains electrical conductivity of up to 45% IACS. It also features high hardness (~38–44 HRC), good fatigue resistance, and excellent dimensional stability under thermal cycling, making it perfect for complex, high-performance applications.
Standard & Material | CDA 110 ETP, ASTM B124, ASTM B152, ASTM B187, ASTM B188, ASTM B272 |
HOLLOW RODS | Min Bore Size 20 mm and Max OD 100 mm |

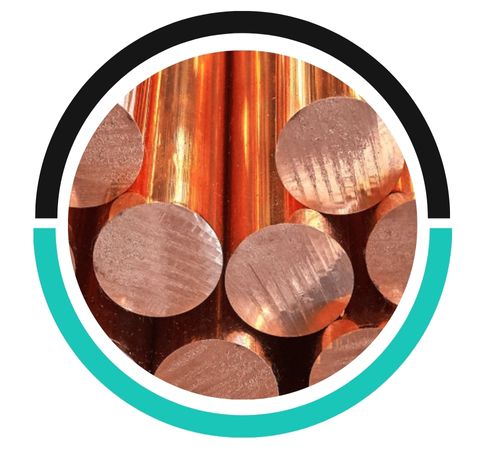

ROUND RODS | 8mm To 100 mm |

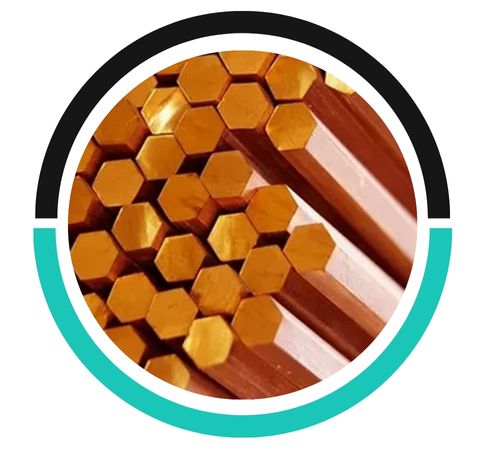

HEX | 10mm To 60mm |

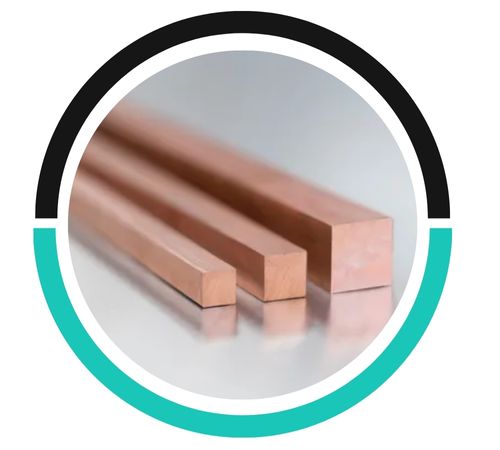

SQUARE | 10mm To 60mm |

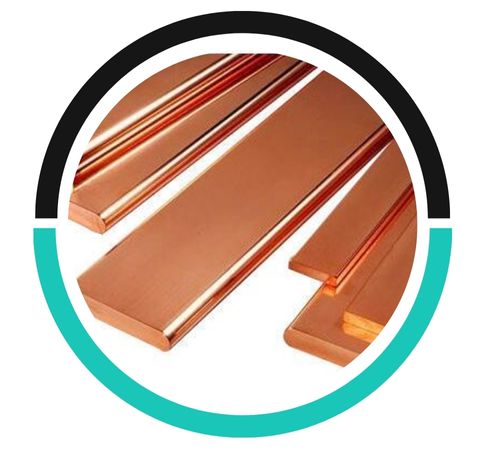

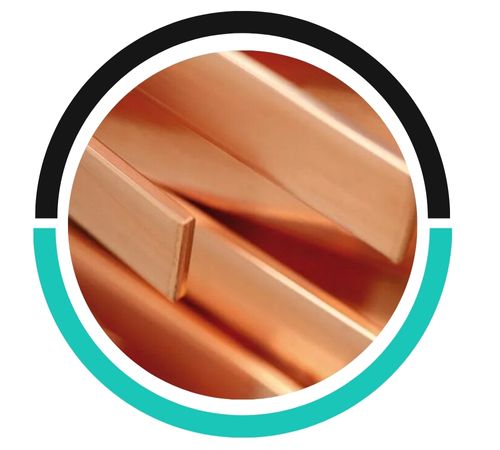

FLAT | 10mm Min Thickness and max Width 120mm |
BILLETS | Up to 200 mm |
INGOTS | As per Specification |
|
Cu |
O |
|
|
Min/Max |
99.90 min |
|
|
Nominals |
– |
0.04 |
Product Property | US Customary | Metric |
Coefficient of Thermal Expansion | 9.4 · 10 6? per °F (68-212 F) | 16.9 · 10 6? per °C (20-100 C) |
Coefficient of Thermal Expansion | 9.6 · 10 6? per °F (68-392 F) | 17.3 · 10 6? per °C (20-200 C) |
Coefficient of Thermal Expansion | 9.8 · 10 6? per °F (68-572 F) | 17.6 · 10 6? per °C (20-300 C) |
Density | 0.322 lb/in3 @ 68 F | 8.91 gm/cm3 @ 20 C |
Electrical Conductivity | 101%IACS @ 68 F | 0.591 MegaSiemens/cm @ 20 C |
Electrical Resistivity | 10.3 ohms-cmil/ft @ 68 F | 1.71 microhm-cm @ 20 C |
Melting Point Liquid US | 1981 F | 1083 C |
Melting Point Solid US | 1949 F | 1065 C |
Modulas of Elasticity in Tension | 17000 ksi | 117000 MPa |
Modulas of Rigidity | 6400 ksi | 44130 MPa |
Specific Gravity | 8.91 | 8.91 |
Specific Heat Capacity | 0.092 Btu/lb/ °F at 68 F | 393.5 J/kg · °K at 293 K |
Thermal Conductivity | 226.0 Btu · ft/(hr · Ft2 · °F) at 68 F | 391.1W/m · °K at 20 C |
End Product | Specification |
Bar | ASME SB133, ASTM B152, SAE J461, J463 |
Bar, Bus | ASTM B187 |
Bar, Forging | ASTM B124 |
Rod | ASME SB133, MILITARY MIL-C-12166, SAE J461, J463 |
Rod, Bus | ASTM B187 |
These Beryllium Chromium Copper Bars and Rods are commonly utilized in high-load, high-temperature settings such as plastic mold tooling, resistance welding electrodes, aerospace bushings, oil and gas components, and military-grade electrical connectors. Their outstanding strength and conductivity make them ideal for critical components that demand both durability and performance. In the electronics sector, they find use in precision contacts and spring connectors. The alloy’s resistance to thermal fatigue and galling makes it particularly effective in tooling that endures repeated heating and mechanical stress.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
