Aiman Metals in Kuala Lumpur, Malaysia, is a prominent manufacturer and exporter of high-quality Carbon Steel Bright Bars and Rods. They are known for superior strength, durability, and precision, with products that have superior surface finish and high dimensional accuracy. Blending the latest manufacturing technologies with industry know-how, Aiman Metals offers trusted metal solutions to diverse industries. From construction and engineering to machinery and automotive, the organization provides a reliable supply of high-quality carbon steel products. Our dedication to quality and customer satisfaction establishes Aiman Metals as a reliable option for precision-engineered metal components.
Carbon Steel Bright Bars and Rods generally comprise 0.10–0.30% carbon, 0.30–0.90% manganese, up to 0.04% phosphorus, up to 0.05% sulfur, and iron as balance. Such compositions provide high strength and superior machinability. The mechanical properties encompass tensile strength of 400–600 MPa, yield strength of 250–450 MPa, elongation of up to 20%, and Brinell hardness of 120–180 HB. All these converge to contribute the high precision, strength, and durability that make these bright bars and rods suitable for the production of shafts, axles, gears, and structural parts while having a great surface finish for critical industrial use.

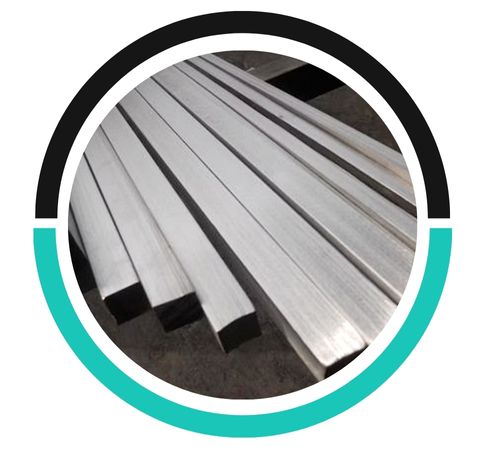

Carbon Steel Bright Square Bar Size: 4 to 100mm

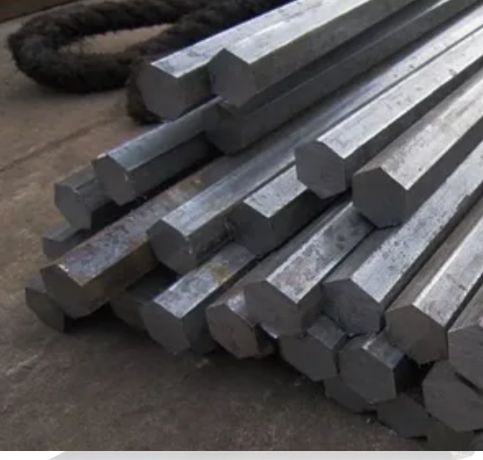

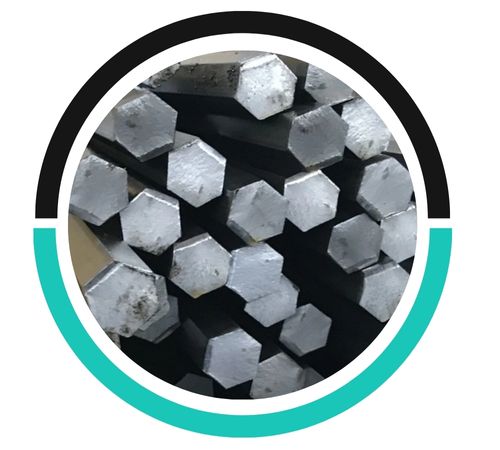

Steel Low Carbon Bright Hex Bar Sizes : 2 to 100 mm A/F
Medium Carbon Steel Bright Angle Bar Size : 3*20*20~12*100*100 mm
Quenching High Carbon Steel Billet Sizes : 1/2″ – 495 mm Dia
Killed Carbon Steel Bright Cold Drawn Bar Processing : Bar cutting to 650mm
Plain Carbon Steel Section Bar Size Range : 3 to 12 mm thickness
| Carbon Steel Grades | C | Mn | Si | S Max. | P Max. |
|---|---|---|---|---|---|
| Ck 45 | 0.42/0.50 | 0.50/0.80 | 0.15/0.35 | 0.04 | 0.04 |
| Ck 55 | 0.52/0.60 | 0.60/0.90 | 0.15/0.35 | 0.04 | 0.04 |
| Ck 60 | 0.57/0.65 | 0.60/0.90 | 0.15/0.35 | 0.04 | 0.04 |
| SAE1006 | 0.08 max | 0.25/0.40 | 0.10/0.30 | 0.05 | 0.04 |
| SAE1008 | 0.10 max | 0.30/0.50 | 0.10/0.30 | 0.05 | 0.04 |
| SAE1010 | 0.08/0.13 | 0.30/0.60 | 0.10/0.30 | 0.05 | 0.04 |
| SAE1018 | 0.15/0.20 | 0.60/0.90 | 0.10/0.30 | 0.05 | 0.04 |
| SAE1020 | 0.18/0.23 | 0.30/0.60 | 0.10/0.30 | 0.09 | 0.04 |
| SAE1030 | 0.28/0.34 | 0.60/0.90 | 0.10/0.40 | 0.05 | 0.04 |
| SAE1035 | 0.32/0.38 | 0.60/0.90 | 0.10/0.40 | 0.05 | 0.04 |
| SAE1040 | 0.37/0.44 | 0.60/0.90 | 0.10/0.40 | 0.05 | 0.04 |
| SAE1045 | 0.40/0.50 | 0.60/0.90 | 0.10/0.40 | 0.05 | 0.04 |
| En-8D | 0.40/0.45 | 0.70/0.90 | 0.05/0.35 | 0.06 | 0.06 |
| En-9 | 0.50/0.60 | 0.50/0.80 | 0.05/0.35 | 0.06 | 0.06 |
| Grade | Yield Strength, | Tensile Strength, | Elongation at Break (in 50 mm) | Bulk Modulus (typical for steel) | Modulus of Elasticity | HBW | Poissons Ratio | Fatigue strength coefficient, of (Mpa) | Shear Modulus | Impacting Energy | Reduction of area, min: |
|---|---|---|---|---|---|---|---|---|---|---|---|
| a36 | 250 MPa | 400 – 550 MPa | 23.00% | 140 GPa | 200 GPa | 0.26 | 79.3 GPa | ||||
| 36300 psi | 58000 – 79800 psi | 23.00% | 20300 ksi | 29000 ksi | 0.26 | 11500 ksi | |||||
| EN45 | 35 (241) | 80 (551) | 40% | 204 Gpa | 948 | ≥63 | |||||
| EN19 | ≥930 Mpa | ≥1080 Mpa | ≥12 | 217 | ≥45 | ||||||
| 105 | 36,000 psi [250 MPa] | 70,000 psi (485 MPa] | 187 | 30% min | |||||||
| EN8 | ≥210 | ≥380 | ≥25 | ≤111HB | ≥50 |
Yes, carbon steel bright bars can attract magnets. Carbon steel is generally magnetic due to its iron content, which exhibits magnetic properties when in a solid, non-alloyed form.
Carbon steel bright bars and rods come in various grades, including mild steel, medium carbon steel, high carbon steel, alloy steel, and tool steel. These types vary in strength, hardness, and flexibility.
Yes, carbon steel bright bars can be recycled after use. The recycling process involves melting down the material, removing impurities, and then reusing it to produce new steel products.
Carbon Steel Bright Rods and Bars are widely applied in high-strength, long-lasting, and precision-demanding industries. They are utilized for application in automotive parts like shafts, gears, axles, and fasteners. Machinery and engineering industries apply them to structural parts, mechanical components, and machines with close tolerance requirements. Their fine machinability and surface finish also qualify them for application in bolts, screws, and precision instruments. They are also used in construction, aeronautics, agriculture, and power generation sectors, where performance as well as reliability is of paramount importance. These bright bars and rods are appreciated for their uniform quality and superior durability.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Aiman Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Kuala lumpur, Malaysia
