Carbon Steel EN-9 Bars

Aiman Metals is a reliable manufacturer and supplier of Carbon Steel EN-9 Bars in Kuala Lumpur, Malaysia. EN-9 is a medium carbon steel grade that possesses good tensile strength, hardness, and wear resistance. It finds extensive application in engineering uses where greater strength and toughness are needed as compared to mild steel. Aiman Metals supplies EN-9 bars in diverse sizes and conditions like hot rolled, cold drawn, or heat-treated for various applications in automotive, construction, and general engineering sectors. Our EN-9 bars are made to a strict tolerance and satisfy international quality requirements regarding strength and endurance.

Carbon Steel EN-9 Rods Dealer in West Kuala lumpur, Carbon Steel EN-9 Bars Manufacturer in West Kuala lumpur, Carbon Steel EN-9 Square Bars Supplier in Kuantan, Carbon Steel EN-9 Flat Bars Price List in Kuala lumpur, Carbon Steel EN-9 Rectangular Bars Supplier in Ipoh, Carbon Steel EN-9 Bars Price List in Malaysia, Carbon Steel EN-9 Round Bars Weight Calculator Exporter Stockist in Kuala lumpur.

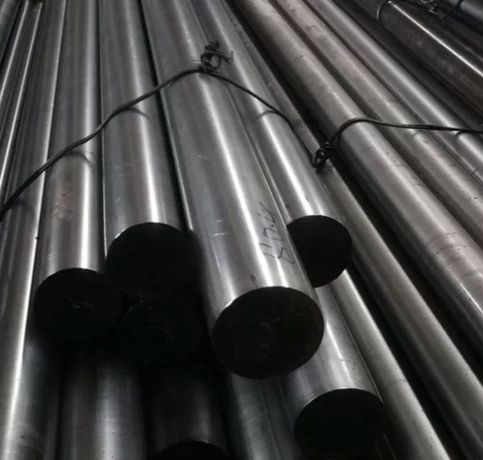

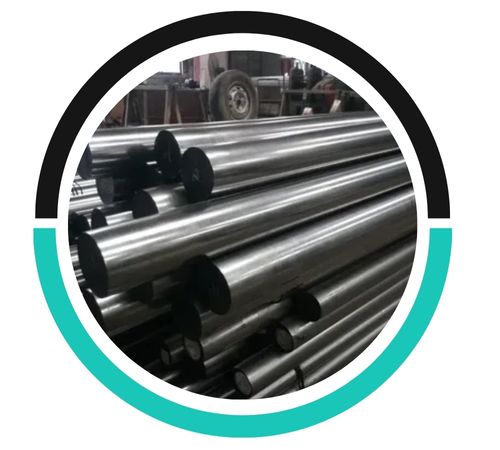

Carbon Steel EN-9 Round Bars

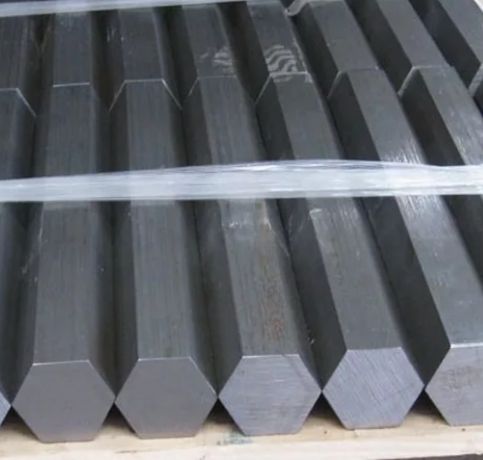

Carbon Steel EN-9 Hex Bars

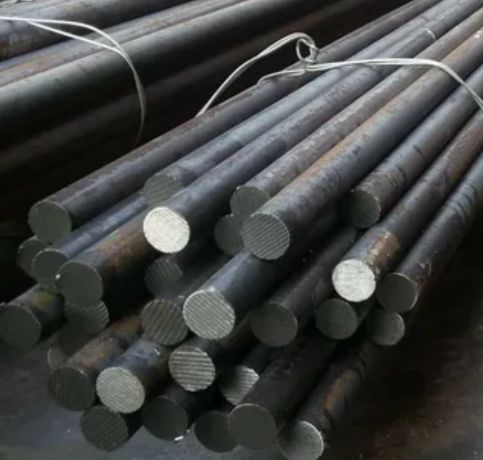

Carbon Steel EN-9 Series Rods

What is Carbon Steel EN-9 Series Bars ?

EN-9 steel generally has 0.50–0.60% carbon content and 0.60–0.80% manganese, with trace elements of silicon, phosphorus, and sulfur. It provides tensile strength of 550–700 MPa and Brinell Hardness of about 200–250 HB in as-received condition. Under optimum heat treatment (e.g., hardening and tempering), EN-9 reaches hardness values greater than 55 HRC. It possesses reasonable machinability, moderate weldability (preheating advised), and superior wear resistance. Flame or induction hardening can be done on the steel for enhancing surface toughness with a tough and ductile core remaining. Uses & Applications (100 words):

Carbon Steel EN-9 Rods Exporter in Malaysia, Carbon Steel EN-9 Round Bars Stockist in Kuala lumpur, Carbon Steel EN-9 Hex Bars Supplier in Malaysia, Carbon Steel EN-9 Cold Drawn Round Bars Distributor in Malaysia, Carbon Steel EN-9 Rods Stockist Ipoh Carbon Steel EN-9 Rods Price in Ipoh, Carbon Steel EN-9 Round Bars Price List, Carbon Steel EN-9 Rectangular Bars Supplier in Malaysia, Carbon Steel EN-9 Bars DimEN-8sions in Malaysia.

Carbon Steel EN-9 Bars Specifications

EN9 / 070M55 Bars and Rods Conforms To NACE MR0175/ISO 15156
Grade	070M55 / EN-9
Specification	BS 970 1991
Round Bar Size	Diameter: 3-~800mm

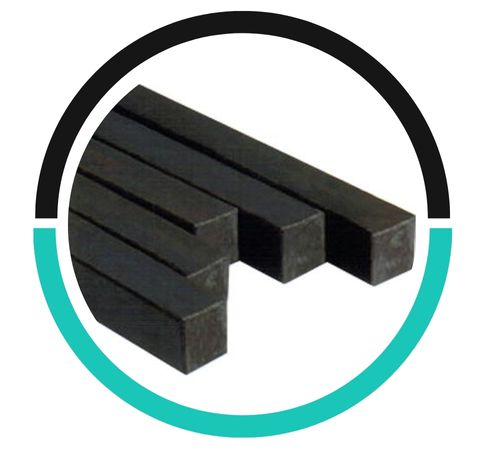

Square Bar size	4 to 100mm
Flat Bar Size	Thickness: 2 -100mm
Flat Bar Size	Width: 10 to 500mm
Hex Bar Size	2-100mm A/F
Rectangles Size	33 x 30mm to 295 x 1066mm

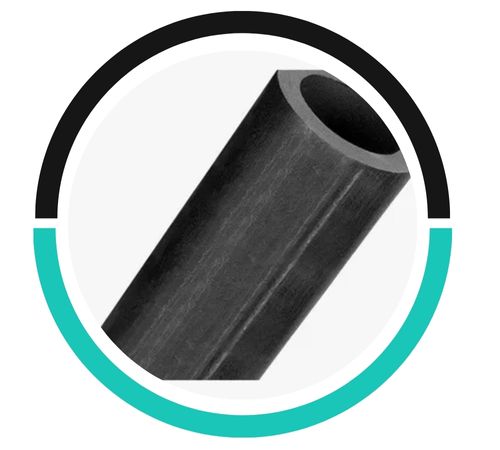

Hollow Bar	32mm OD x 16mm ID to 250mm OD x 200mm ID)
Angle Bar Size	3mm20mm20mm~12mm100mm100mm
Channel Bar	80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness
Section	3.0 to 12.0mm thickness
Billet Size	1/2″ to 495mm Diameter
Finish	Cold (bright) drawn, centreless ground,smooth turned, Rough Turned, Bright, peeled, hot rolled, hot rolled annealed, slit rolled edge, Polish, Grinding, Centreless Ground & Black
Tolerance	K9, K10, K11, K12, H8, H9, H10, H11, H12, H13, or as per clients’ requirements
Surface	Polished, Bright, Cold Drawn, Hot Rolled Pickled, Sand Blasting Finished, Hairline
Condition	Hardened & Tempered, Annealed
Technique	en9 Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rods
Processing	Bar cutting to 650mm
Form	en9 Welding Rod, Round, Round Rod, Rings, Hollow, Rod, T-Bar, Channel Bar, Flat Bar, Square, Blocks, Precision Ground Bar, Triangle, Rectangle, Hex (A/F), Threaded, Ingot, I/H Bar, Half Round Bar, Profiles, Billet, Forging etc.

Chemical Compositions of Carbon SteelEN-9 Bars

Grade	Cr	C	Ni	Si	S	Mn	P	Mo
EN – 9	–	.50 – .60	–	.05 – .35	.040 MAX	.50 – .80	.040 MAX	–

Mechanical Properties of Carbon Steel EN-9 Bars

Heat Treatment	Condition Tons/SQ.inch	Tensile Stress RE MPA	RP0.2 MPA	A min on 5.65so	Impac		Hardness HB	Limited Ruling Section mm
					IZODFT.L.b	KCV Joules
Normalise	45	700	–	12	–	–	201-255	63
	39	600	–	13	–	–	170/223	250
R	45/55	700/850	385	14	–	–	201/277	100
S	50/60	775/925	450	14	–	–	223/277	63
T	55/65	850/1000	555	12	–	–	248/302	19

You Need Our Support, to Have Any Projects?

Test Certificate

Why Aiman Metals?

Packaging

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Carbon Steel EN-9 Bars Types

Stockist of Carbon Steel EN-9 Round Bars in Kuala lumpur, Carbon Steel EN-9 Bars Supplier in Malaysia, Carbon Steel EN-9 Rods Price List in Kuala lumpur, Carbon Steel EN-9 Rectangular Bars Supplier in Kuala lumpur, Carbon Steel EN-9 Hexagonal Bars Exporter in West Kuala lumpur, Carbon Steel EN-9 T-Bars Exporter in Malaysia, Carbon Steel EN-9 Cold Rolled Rods Exporter in Kuantan, Carbon Steel EN-9 Round Bar Manufacturer in Ipoh, Carbon Steel EN-9 Round Bars Distributor in Malaysia, Carbon Steel EN-9 Polished Rods Dealer in West Kuala lumpur

Equivalent Grades Carbon Steel EN-9 Bars

Standard	CS EN-9
UNS	–
WERKSTOFF NR.	CK55
BS	070M55
IS	C55
JIS	–
EN	EN9
SAE/AISI	1055

Frequently Asked Questions (FAQ)

What is Carbon Steel EN-9 used for?

Carbon Steel EN-9 is commonly used for manufacturing bolts, nuts, fasteners, and structural components in heavy-duty applications like automotive and construction industries.

What are the mechanical properties of Carbon Steel EN-9?

EN-9 offers excellent tensile strength, wear resistance, and hardenability, making it suitable for components subjected to mechanical stresses and heavy-duty environments.

Can Carbon Steel EN-9 be heat-treated?

Yes, Carbon Steel EN-9 can be heat-treated to enhance its hardness and strength, making it versatile for various engineering applications.

Carbon Steel EN-9 Bars Uses

Carbon Steel EN-9 Bars find wide applications in the production of shafts, gears, keys, studs, axles, spindles, crankshafts, and couplings. It is suitable for operations where there is a need for moderate wear resistance and strength greater than in mild steel. EN-9 in automotive engineering is utilized in components that are exposed to dynamic loads, e.g., steering knuckles, levers, and linkages. It is also applied in farm and mining machinery, heavy equipment, and general mechanical parts. The balance of strength and machinability of the material allows it to be used for both standard and custom-engineered parts in heavy-duty applications.
