Copper C10200 Bars/Rods

Aiman Metals is a trustworthy supplier of Copper C10200 Bars and Rods in Kuala Lumpur, Malaysia. C10200 or OFE (Oxygen-Free Electronic) copper is famous for its purity, outstanding electrical conductivity, and hydrogen embrittlement resistance. It has no deoxidizers added to it, which allows it to provide maximum cleanliness and perfect suitability for electronic and high-vacuum applications. Aiman Metals provides C10200 bars and rods with close tolerances, high surface finish, and adjustable lengths for application in high-performance electrical, thermal, and structural systems where maximum reliability and low electrical resistance are essential.

C10200 Copper Round Bars Malaysia, Copper C10200 Hexagonal Bars Supplier in Malaysia, C10200 Copper Bus Bars Exporter in Malaysia, Copper C10200 Hex Bars Stockist in Kuala lumpur, C10200 Copper Alloy Rectangular Bars Supplier in Malaysia,Copper C10200 Square Bars Distributor in Malaysia, 3/16" Copper C10200 Rod Stockist Ipoh, C10200 3/8" Copper Alloy Round Rod Price in Ipoh, Copper Flat Bars Malaysia

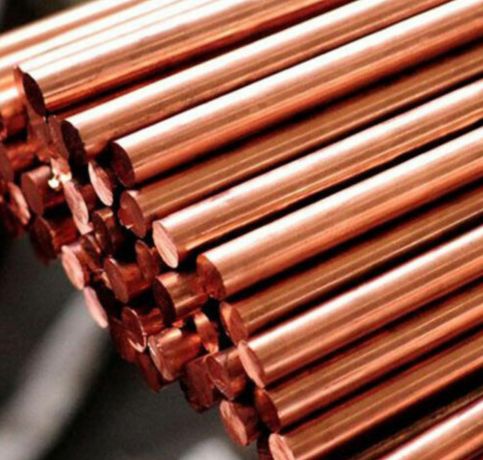

Copper C10200 Bus Bars

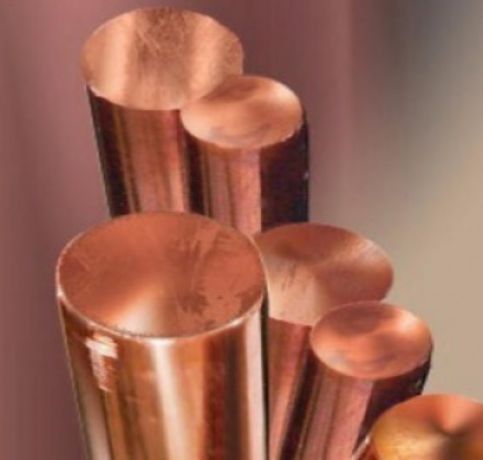

C10200 Copper Bright Rods

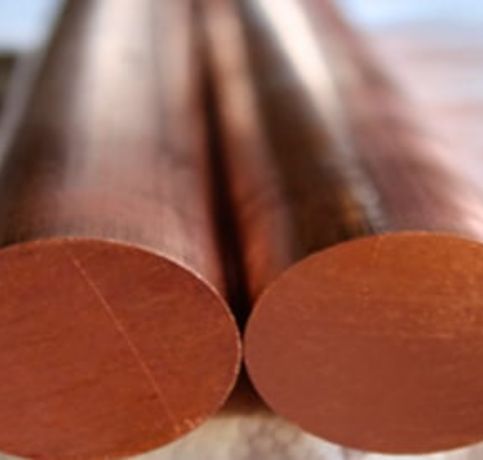

Copper C10200 Forging Rod

What is Copper C10200 Bars and Rods

Copper C10200 is comprised of 99.95% copper with very little oxygen (<0.001%). It has more than 100% IACS electrical conductivity and superior thermal transfer characteristics. C10200 has tensile strengths ranging from 200–400 MPa based on temper. It is non-magnetic, corrosion-resistant, and extremely ductile. The grade is utilized in hydrogen-rich or high-vacuum conditions because it resists embrittlement and contamination. It can be machined, brazed, and cold-formed readily without sacrificing superior mechanical stability.

C10200 Copper Forging Rod Price List in Kuala lumpur, Copper C10200 Threaded Bars Supplier in Kuala lumpur, Copper C10200 Copper Hexagonal Bars Exporter in West Kuala lumpur, C10200 Pure Copper Rods Exporter in Malaysia, C10200 Copper Round Bars Manufacturer in Ipoh, Copper C10200 Round Bars Distributor in Malaysia, C10200 Copper Half Round Bars Dealer in West Kuala lumpur, Stockist of C10200 Copper Forged Bar in Kuala lumpur, 20mm Copper C10200 Round Bar Supplier in Malaysia, C10200 Oxygen Free Copper Rectangle Rods Exporter in Kuantan

Copper C10200 Bar/Rods Specifications

Specifications	ASTM B187, ASTM B301 / ASME SB187, SB301
Range	3.17 MM TO 350 MM DIA
Form	Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc.
Copper Grades	C10200

Copper Alloy C10200 bars Physical Properties

Melting Point – Solidus ⁰F	1981
Melting Point – Liquidus ⁰F	1981
Density lb/cu in. at 68⁰F	0.323
Electrical Conductivity % IACS at 68⁰F	101
Specific Gravity	8.94
Specific Heat Capacity Btu/lb/⁰F @ 68 ⁰F	0.092
Thermal Conductivity Btu/sq ft/ft hr/ ⁰F at 68⁰F	226
Coefficient of Thermal Expansion 10-6 per ⁰F (68-392 ⁰F)	9.6
Modulus of Rigidity ksi	6400
Coefficient of Thermal Expansion 10-6 per ⁰F (68-212 ⁰F)	9.4
Modulus of Elasticity in Tension ksi	17000
Coefficient of Thermal Expansion 10-6 per ⁰F (68-572 ⁰F)	9.8

Copper Alloy C10200 Rods Equivalent

Standards	Country	Value
EN	Europe	Cu-OF
DIN CEN/TS 13388	Germany	CW008A
UNS	–	C10200
JIS	Japan	C1020
GB	China	TU1
BS	England	C102

You Need Our Support, to Have Any Projects?

Copper C10200 Bars & Rods Thermal Properties

Thermal Properties	Metric	English
Annealing Point	>= 371 °C	>= 700 °F
CTE, linear	17.0 µm/m-°C @Temperature 20.0 – 100 °C	9.44 µin/in-°F @Temperature 68.0 – 212 °F
	17.7 µm/m-°C @Temperature 20.0 – 300 °C	9.83 µin/in-°F @Temperature 68.0 – 572 °F
	17.3 µm/m-°C @Temperature 20.0 – 200 °C	9.61 µin/in-°F @Temperature 68.0 – 392 °F
Thermal Conductivity	391 W/m-K @Temperature 20.0 °C	2710 BTU-in/hr-ft²-°F @Temperature 68.0 °F
Melting Point	1083 °C	1981 °F
Specific Heat Capacity	0.385 J/g-°C @Temperature 20.0 °C	0.0920 BTU/lb-°F @Temperature 68.0 °F

Test Certificate

Why Aiman Metals?

Packaging

Copper C10200 Bar/Rods Chemical Composition

Property/unit	Condition	Min	Max
Tensile Strength (N/mm2)	1/2H	290
Elongation in 5.65 Cross sectional area	O	32
Tensile Strength (N/mm2)	H	350
Tensile Strength (N/mm2)	O		260
Elongation in 5.65Cross sectional area	1/2H	4

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

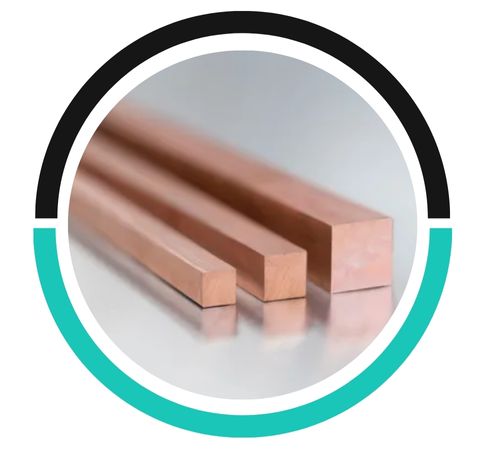

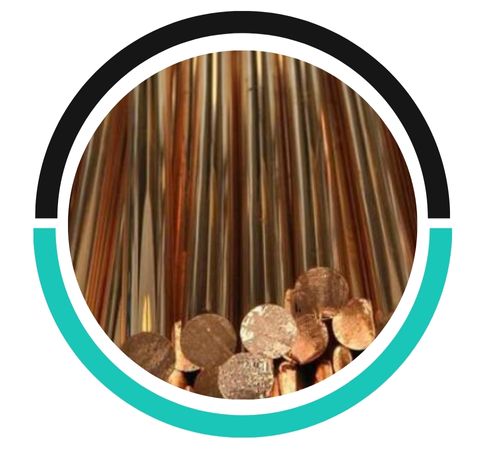

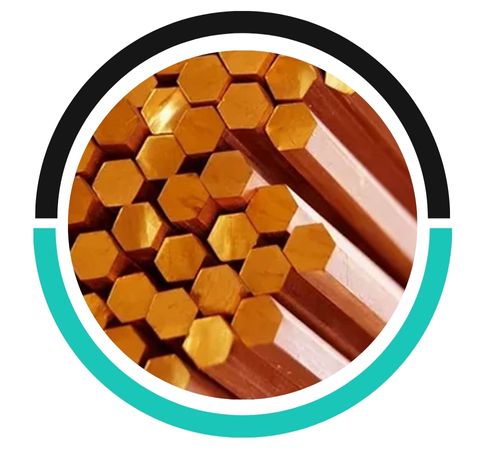

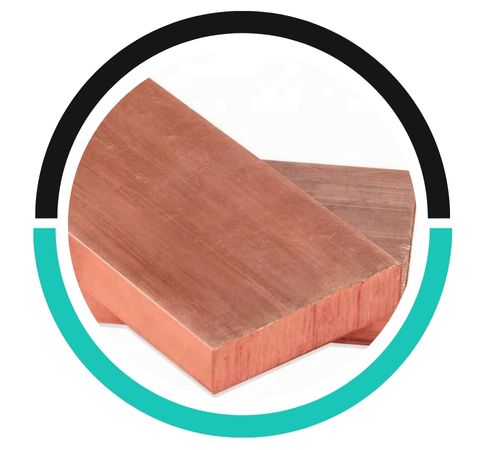

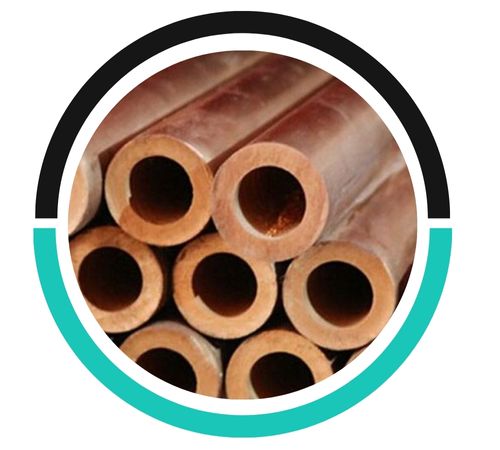

Copper C10200 Bar/Rods Types

C10200 Wrought Copper Alloy Rod & Bar Size Chart, C10200 Copper Round Rods Price in Ipoh, Copper C10200 Round Bars Supplier in Malaysia, C10200 Copper Bus Bar Stockist in Kuala lumpur, Copper C10200 Half Round Bar Supplier in Kuala lumpur, C10200 Copper Forged Bar Dealer in West Kuala lumpur, 20mm Copper C10200 Round Bar Manufacturer in West Kuala lumpur, C10200 Copper Round Rods Supplier in Kuantan

Frequently Asked Questions (FAQ)

Can Copper C10200 Bars and Rods Be Recycled After Use?

Yes, Copper C10200 Bars and Rods are fully recyclable. Copper retains its properties after recycling, making it an environmentally friendly and sustainable material for repeated use in various industries.

Do Copper C10200 Bars and Rods Require Corrosion Protection Coatings?

Copper C10200 Bars and Rods generally do not require corrosion protection coatings as copper naturally resists corrosion. However, in certain aggressive environments, protective coatings may be used to enhance durability.

Can Copper C10200 Bars and Rods Be Welded?

Yes, Copper C10200 Bars and Rods can be welded using techniques like TIG and MIG welding. Their high conductivity and low oxygen content ensure strong and reliable welds for various applications.

Copper C10200 Bar & Rods Uses

C10200 Bars and Rods of Copper are employed in precision electronic components, vacuum tube circuits, medical equipment, RF transmission, and scientific instruments. It is the preferred material in aerospace and semiconductor uses requiring ultra-pure, low-resistance conductors. It is utilized in superconducting magnets, particle accelerators, and waveguides. C10200 is ideal for cryogenic and high-frequency systems because of its superior conductivity and low outgassing. Its performance both in high-voltage and low-temperature settings guarantees mission-critical reliability in technologies.
