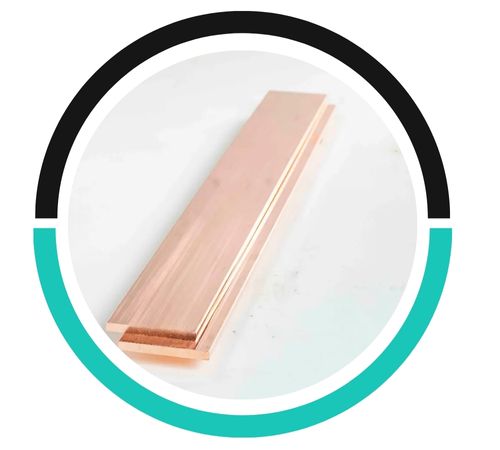

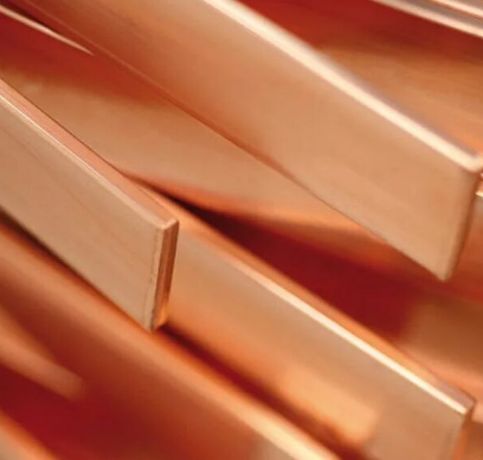

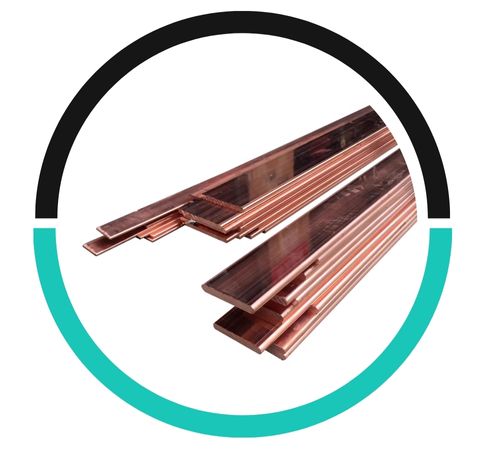

Aiman Metals, a Kuala Lumpur, Malaysia-based company, is one of the leading manufacturers and suppliers of high-quality metal products. Known for precision engineering and reliable services, the organization serves various industries. Amongst its large product list, Copper Nickel Flat Bars are notable due to higher corrosion resistance, strength, and superior thermal and electrical conductivity. These bars are perfect for tough conditions in marine, chemical, and power generation applications. Dedicated to quality and customer satisfaction, Aiman Metals guarantees that each Copper Nickel Flat Bar is produced to strict industry standards, ensuring long-term performance and reliability in critical use.
Copper Nickel Flat Bars are usually made of 90% copper and 10% nickel, with small additions of iron and manganese to enhance strength and toughness. This alloy provides superior corrosion resistance in seawater and chemical environments, as well as a high thermal conductivity. Mechanical properties are a tensile strength of 370–550 MPa, yield strength of 140–300 MPa, and elongation of up to 40%. The alloy is stress corrosion cracking resistant and biofouling resistant and is, therefore, extremely durable. Its strength, ductility, and corrosion resistance make it a good option for demanding industrial applications.
tandards: EN, DIN, JIS, ASTM, BS, ASME, AISI
Size: 5 mm to 200 mm
Length : 100 mm to 3660 mm Long
Specifications : ASTM / ASME SB 111
Form : Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc.
Finish : Bright, Polish & Black
| Grade | Mn | Cu | Pb | Fe | Ni | Zn |
|---|---|---|---|---|---|---|
| 90/10 | 1.0 max | 88.6 min | 0.5 max | 1.8 max | 9-11 max | 1 max |
| 70/30 | 1 max | 65.0 min | 0.5 max | 0.4-1.0 | 29-33 | 1 max |
| Grade | Melting point | Density | Tensilestrength | Elongation | Yieldstrength(0.2%Offset) |
|---|---|---|---|---|---|
| 90/10 | 2260°F | 8.8g/cm3 | 50000 PSi | 30% | 20000 PSi |
| 70/30 | 2260°F | 0.323 lb/in3 at 68°F | 50000 PSi | 30% | 20000 PSi |
| BD | Bright drawn | SRE | Slit rolled edge |
| CF | Cold finished | HRAP | Hot rolled annealed / pickled |
| CG | Centreless ground | HF | Hot finished |
| ST | Smooth turned | PR | Peeled / reeled |
| CD | Cold drawn | P | Polished |
| P&T | Peeled / turned | RT | Rough turned and peeled |
| Flat bar – metric sizes ( weights ) | |||
|---|---|---|---|
| Flat size | Standard length (metres) | KG’s / metre | Colour code |
| 16 x 3 | 6.0 | 0.38 | Blue |
| 13 x 3 | 6.0 | 0.31 | Blue |
| 13 x 5 | 6.0 | 0.46 | Orange |
| 16 x 5 | 6.0 | 0.64 | Orange |
| 20 x 3 | 6.0 | 0.48 | Blue |
| 16 x 8 | 6.0 | 1.03 | Red |
| 20 x 5 | 6.0 | 0.81 | Orange |
| 20 x 10 | 6.0 | 1.61 | Yellow |
| 20 x 6 | 6.0 | 0.97 | White |
| 25 x 3 | 6.0 | 0.60 | Blue |
| 25 x 6 | 6.0 | 1.21 | White |
| 10 x 3 | 6.0 | 0.24 | Blue |
| 25 x 5 | 6.0 | 1.01 | Orange |
| 25 x 8 | 6.0 | 1.61 | Red |
| 25 x 12 | 6.0 | 2.41 | Pink |
| 25 x 10 | 6.0 | 2.01 | Yellow |
| 32 x 3 | 6.0 | 0.77 | Blue |
| 32 x 6 | 6.0 | 1.55 | White |
| 32 x 5 | 6.0 | 1.29 | Orange |
| 32 x 8 | 6.0 | 2.06 | Red |
| 32 x 12 | 6.0 | 3.09 | Pink |
| 32 x 10 | 6.0 | 2.58 | Yellow |
| 40 x 3 | 6.0 | 0.97 | Blue |
| 40 x 6 | 6.0 | 1.93 | White |
| 40 x 5 | 6.0 | 1.61 | Orange |
| 40 x 8 | 6.0 | 2.58 | Red |
| 40 x 12 | 6.0 | 3.86 | Pink |
| 40 x 10 | 6.0 | 3.22 | Yellow |
| 40 x 16 | 6.0 | 5.15 | Grey |
| 50 x 3 | 6.0 | 1.21 | Blue |
| 40 x 20 | 6.0 | 6.14 | Green |
| 50 x 5 | 6.0 | 2.01 | Orange |
| 50 x 8 | 6.0 | 3.22 | Red |
| 50 x 6 | 6.0 | 2.41 | White |
| 50 x 10 | 6.0 | 4.02 | Yellow |
| 50 x 16 | 6.0 | 6.44 | Grey |
| 50 x 12 | 6.0 | 4.83 | Pink |
| 50 x 20 | 6.0 | 8.05 | Green |
| 65 x 3 | 6.0 | 1.57 | Blue |
| 50 x 25 | 6.0 | 10.1 | Purple |
| 65 x 5 | 6.0 | 2.62 | Orange |
| 65 x 8 | 6.0 | 4.18 | Red |
| 65 x 6 | 6.0 | 3.14 | White |
| 65 x 10 | 6.0 | 5.23 | Yellow |
| 65 x 16 | 6.0 | 8.37 | Grey |
| 65 x 12 | 6.0 | 6.28 | Pink |
| 65 x 20 | 6.0 | 10.5 | Green |
| 75 x 5 | 6.0 | 3.02 | Orange |
| 65 x 25 | 6.0 | 13.1 | Purple |
| 75 x 6 | 6.0 | 3.62 | White |
| 75 x 10 | 6.0 | 6.04 | Yellow |
| 75 x 8 | 6.0 | 4.83 | Red |
| 75 x 12 | 6.0 | 7.24 | Pink |
| 75 x 20 | 6.0 | 12.1 | Green |
| 75 x 16 | 6.0 | 9.66 | Grey |
| 75 x 25 | 6.0 | 15.1 | Purple |
| 90 x 5 | 6.0 | 3.62 | Orange |
| 75 x 40 | 6.0 | 24.1 | Yellow |
| 90 x 6 | 6.0 | 4.35 | White |
| 90 x 10 | 6.0 | 7.24 | Yellow |
| 90 x 8 | 6.0 | 5.79 | Red |
| 90 x 12 | 6.0 | 8.69 | Pink |
| 100 x 6 | 6.0 | 4.83 | White |
| 100 x 5 | 6.0 | 4.02 | Orange |
| 100 x 8 | 6.0 | 6.44 | Red |
| 100 x 12 | 6.0 | 9.66 | Pink |
| 100 x 10 | 6.0 | 8.05 | Yellow |
| 100 x 16 | 6.0 | 12.9 | Grey |
| 100 x 25 | 6.0 | 20.1 | Purple |
| 100 x 20 | 6.0 | 16.1 | Green |
| 100 x 50 | 6.0 | 40.2 | Green |
| 110 x 8 | 6.0 | 7.08 | Red |
| 110 x 6 | 6.0 | 5.31 | White |
| 110 x 10 | 6.0 | 8.85 | Yellow |
| 130 x 5 | 6.0 | 5.23 | Orange |
| 110 x 12 | 6.0 | 10.6 | Pink |
| 130 x 6 | 6.0 | 6.28 | White |
| 130 x 10 | 6.0 | 10.5 | Yellow |
| 130 x 8 | 6.0 | 8.37 | Red |
| 130 x 12 | 6.0 | 12.6 | Pink |
| 130 x 20 | 6.0 | 20.9 | Green |
| 130 x 16 | 6.0 | 16.7 | Grey |
| 130 x 25 | 6.0 | 26.2 | Purple |
| 150 x 6 | 6.0 | 7.24 | White |
| 150 x 5 | 6.0 | 6.04 | Orange |
| 150 x 8 | 6.0 | 9.66 | Red |
| 150 x 12 | 6.0 | 14.5 | Pink |
| 150 x 10 | 6.0 | 12.1 | Yellow |
| 150 x 16 | 6.0 | 19.3 | Grey |
| 150 x 25 | 6.0 | 30.1 | Purple |
| 150 x 20 | 6.0 | 24.1 | Green |
| 150 x 50 | 6.0 | 60.4 | Green |
| 180 x 6 | 6.0 | 8.69 | White |
| 180 x 5 | 6.0 | 7.24 | Orange |
| 180 x 10 | 6.0 | 14.5 | Yellow |
| 180 x 16 | 6.0 | 23.2 | Grey |
| 180 x 12 | 6.0 | 17.4 | Pink |
| 180 x 20 | 6.0 | 29.0 | Green |
| 200 x 6 | 6.0 | 9.66 | White |
| 180 x 25 | 6.0 | 36.2 | Purple |
| 200 x 8 | 6.0 | 12.9 | Red |
| 200 x 12 | 6.0 | 19.3 | Pink |
| 200 x 10 | 6.0 | 16.1 | Yellow |
| 200 x 16 | 6.0 | 25.7 | Grey |
| 200 x 25 | 6.0 | 40.3 | Purple |
| 200 x 20 | 6.0 | 32.2 | Green |
| 250 x 6 | 6.0 | 12.1 | White |
| 250 x 10 | 6.0 | 20.1 | Yellow |
| 250 x 8 | 6.0 | 16.1 | Red |
| Grade | UNS | Werkstoff Nr. |
| 90/10 | C70600 | 2.0872 |
| 70/30 | C71500 | 2.0882 |
Yes, Copper Nickel Flat Bars are customizable. They can be manufactured to specific dimensions, thicknesses, and lengths based on customer requirements. Additionally, they can be tailored for particular applications, such as varying alloy compositions or surface finishes, to meet performance needs in industries like marine, chemical, and power generation.
Copper Nickel Flat Bars are extensively utilized in sectors needing superior corrosion resistance and mechanical strength. In the shipping industry, they are utilized in ship construction, seawater piping, and desalination plants, where anti-biofouling and seawater corrosion resistance is indispensable. In chemical processing, they are utilized for heat exchangers, condensers, storage tanks, and piping subjected to severe chemicals. In oil & gas and power generation industries, bars are used in valves, offshore platforms, pumps, and high-pressure systems to meet long-term performance in adverse conditions. Their resistance to corrosion, high strength, and thermal conductivity make them vital in harsh industrial applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
