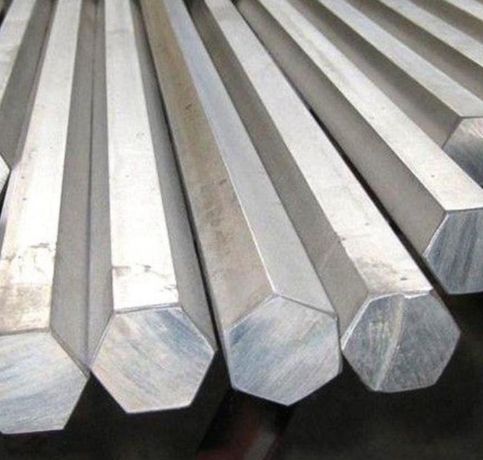

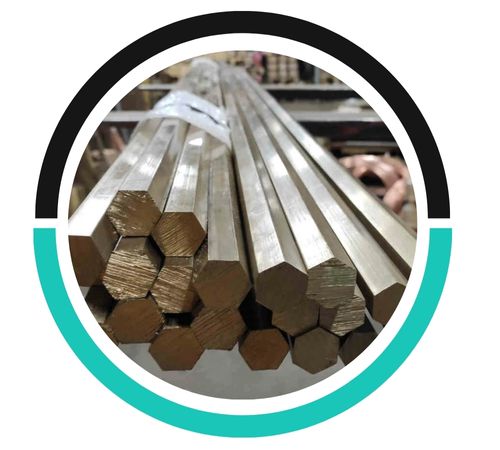

Aiman Metals is a major supplier in Kuala lumpur, Malaysia. The company specializes in high-quality engineering materials. Such as the strong and versatile duplex steel hex bar. It is one of the unique materials characterized by high strength, corrosion resistance, and weldability. Applications are found across various industries, including construction, marine engineering, and the oil and gas sector. Duplex Steel Hex Bar with its hexagonal profile is ideal for bolted connections and applications. High torsional strength is required. We are committed to supplying a wide range of sizes and grades of this material. Assuring customers receive the precise solutions needed for their specific projects backed by expert knowledge and reliable service.
Duplex steel hex bars are a unique type of metal product characterized by their dual-phase microstructure. Comprising roughly equal parts of austenite and ferrite. This combination gives them superior strength and corrosion resistance compared to standard austenitic or ferritic stainless steels. Typically duplex alloys include around 22-25% chromium, 5-7% nickel, 3-3.5% molybdenum. and a small amount of nitrogen. The hexagonal shape allows for easy gripping and torque application. Making these bars ideal for applications requiring high mechanical strength, such as fasteners, shafts and structural components in harsh environments like the oil and gas, chemical and marine industries.
Standards : EN, DIN, JIS, ASTM, BS, ASME, AISI
Size : 10 mm To 100 mm Dia in
Length : 100 mm TO 6000 mm Length.
Specifications : ASTM A276, A479 / ASME SA276, SA479
Form : Rectangular
Finish : Bright, Polish & Black
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
S31803 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 22.0 – 23.0 | 3.0 – 3.5 | 4.50 – 6.50 | 0.14 – 0.20 | 63.72 min |
S32205 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21.0 – 23.0 | 2.50 – 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min |
| S31803 / S32205 | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
Yes, Duplex Steel Hex Bars are fully recyclable. They can be melted down and reused without losing their essential properties, making them an environmentally sustainable option for various applications.
Duplex Steel Hex Bars have inherent corrosion resistance due to their composition. However, in highly aggressive environments, additional coatings or treatments may be necessary to enhance their longevity and performance.
To choose the right Duplex Steel Hex Bar, consider factors such as mechanical strength, corrosion resistance, temperature conditions, and compatibility with your application’s specific industry standards and environmental factors.
Duplex steel hex bars, known for their exceptional strength and corrosion resistance, find wide application across diverse industries. Their unique properties make them useful for demanding environments. Key uses include structural supports in offshore platforms, fasteners in marine engineering, components in chemical processing plants, and parts in pulp and paper production equipment. The oil and gas, marine, chemical, and paper industries are the primary consumers of duplex hex bars, leveraging their superior performance in harsh and corrosive conditions to ensure longevity and reliability.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Aiman Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Kuala lumpur, Malaysia
