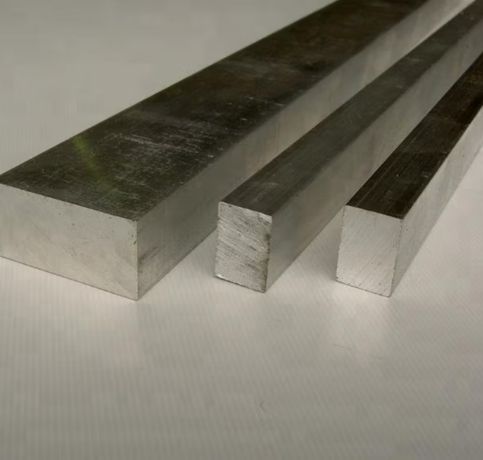

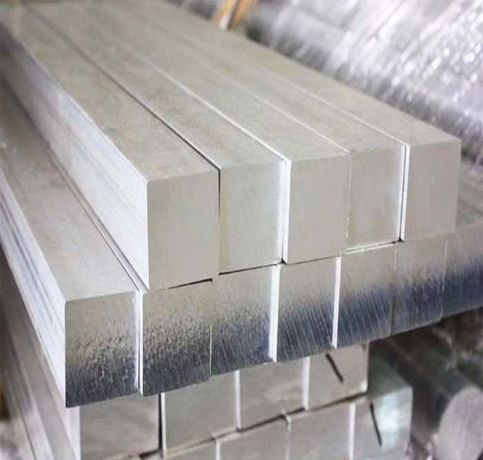

Aiman Metals, Kuala Lumpur, Malaysia, is a premier supplier of specialty metals and is renowned to supply high-quality Duplex Steel Rectangular Bars. Well-known for their superior strength, corrosion resistance, and toughness, these bars are extensively applied in harsh industrial processes. Made from duplex stainless steel, a harmonious mixture of austenitic and ferritic microstructures, they possess enhanced mechanical properties over usual stainless steels. Engineered to withstand extreme conditions in which other materials will not survive, our Duplex Steel Rectangular Bars provide long-term performance and dependability. From oil & gas and construction to marine and chemical processing industries, they provide the strength necessary for high-criticality projects.
Our Duplex Steel Rectangular Bars are made from duplex stainless steel with a microstructure consisting of a two-phase mixture of roughly equal austenite and ferrite. Grades such as Duplex 2205 are usually composed of 22% chromium, 5–6% nickel, 3% molybdenum, and nitrogen to help improve performance. The composition has twice the yield strength of austenitic stainless steels, high toughness, and better resistance to pitting, crevice corrosion, and chloride-induced stress corrosion cracking. They also have good weldability and dimensional stability and can be fabricated. These combined mechanical and resistance-to-corrosion properties provide reliable service in extremely aggressive and corrosive conditions.
Standards : EN, DIN, JIS, ASTM, BS, ASME, AISI
Size : 10 mm To 100 mm Dia in
Length : 100 mm TO 6000 mm Length.
Specifications : ASTM A276, A479 / ASME SA276, SA479
Form : Rectangular

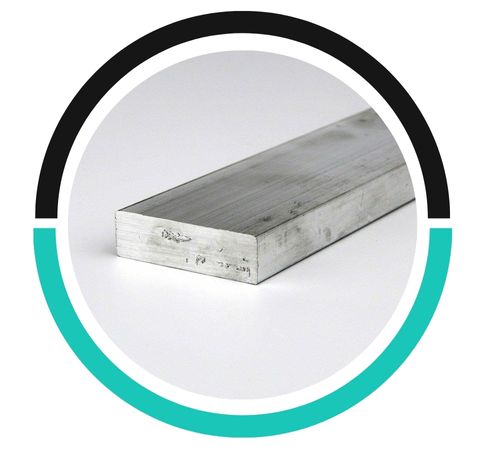

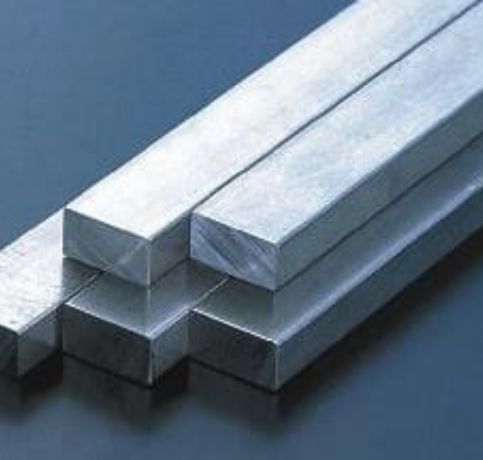

Finish : Bright, Polish & Black
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
S31803 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 22.0 – 23.0 | 3.0 – 3.5 | 4.50 – 6.50 | 0.14 – 0.20 | 63.72 min |
S32205 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21.0 – 23.0 | 2.50 – 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min |
| S31803 / S32205 | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
Duplex Steel Rectangular Bars can withstand moderate to high temperatures, but their performance may degrade at temperatures above 300°C (572°F). For extreme heat, other alloys like austenitic stainless steel are preferred.
Yes, Duplex Steel Rectangular Bar are highly recyclable. Their durable composition allows them to be melted down and repurposed in various applications without significant loss of material properties.
Duplex Steel Rectangular Bars have excellent natural corrosion resistance due to their alloy composition. However, in highly aggressive environments, additional coatings or treatments may be recommended for enhanced protection.
Duplex Steel Rectangular Bars form an essential part of industries that require strength, toughness, and resistance to corrosion. In construction, they find application in load-bearing structures, frameworks, and architectural features subjected to severe conditions. The oil and gas sector uses them for offshore structures, subsea pipelines, and drilling equipment due to their capability to withstand chloride-rich environments. They depend on them for chemical storage tanks, reactors, and equipment that come in contact with harsh chemicals. In the marine industry, they cannot do without using them in ship construction, harbor buildings, and desalination plants. They are also used in pulp & paper mills and manufacturing for machinery parts and essential equipment.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
