Hastelloy Bars and Rods

Aiman Metals stands out as a top-notch manufacturer and supplier located in Kuala Lumpur, Malaysia, focusing on high-quality Hastelloy bars and rods. We pride ourselves on our dedication to excellence, meeting a variety of industrial needs with our corrosion-resistant, high-performance alloys that are known for their durability and reliability. Our vast inventory, combined with rigorous quality control measures, guarantees timely delivery and consistent product quality. With a wealth of expertise and years of experience in the industry, Aiman Metals has earned the trust of clients both in Malaysia and around the globe for providing Hastelloy bars and rods that are perfectly suited for the most challenging engineering and chemical processing tasks.

Hastelloy Alloy Rods Dealer in West Kuala lumpur, Hastelloy Round Bars Manufacturer in West Kuala lumpur, Hastelloy Square Bars Supplier in Kuantan, Hastelloy Alloy Flat Bars Price List in Kuala lumpur, Hastelloy Rectangular Bars Supplier in Ipoh, Hastelloy Alloy Bars Price List in Malaysia, Hastelloy Round Bars Exporter Stockist in Kuala lumpur, Stockist of Hastelloy Round Bars in Kuala lumpur

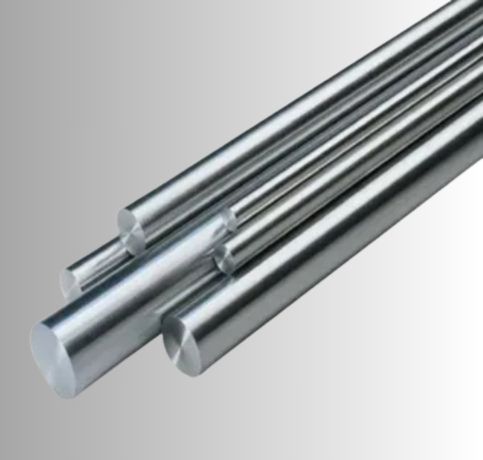

Hastelloy Round Bars

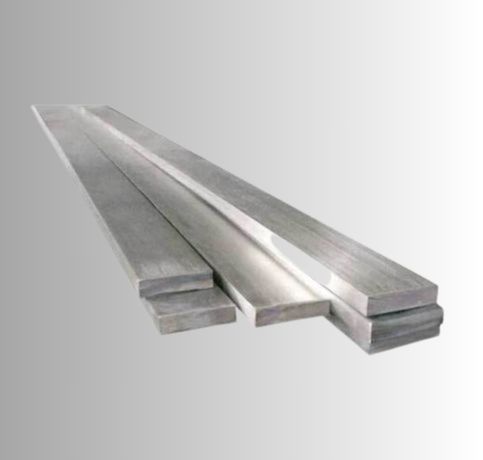

Hastelloy Rectangular Bars

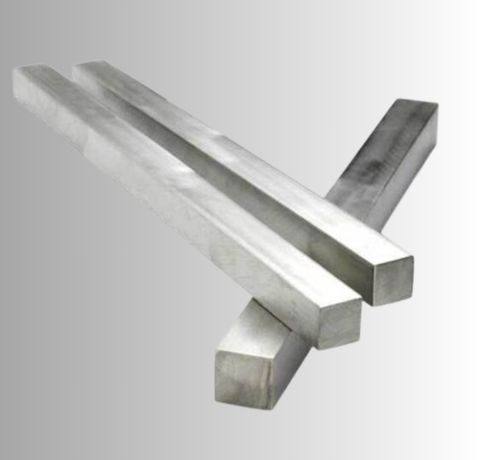

Hastelloy Square Rods

What is Hastelloy Bars and Rods?

Hastelloy bars and rods are mainly made up of nickel, along with different proportions of molybdenum, iron, chromium, cobalt, and other elements, depending on the specific grade (like C-22 or C-276). These alloys are crafted for exceptional corrosion resistance, particularly in tough chemical settings. Hastelloy boasts impressive mechanical properties, such as high tensile strength, low thermal expansion, and good ductility. Typically, the tensile strength falls between 690 MPa and 785 MPa, with a yield strength around 310 MPa. Their strength under high temperatures and pressure makes them perfect for critical industrial applications.

Hastelloy Alloy Flat Rods Exporter in Kuantan, Hastelloy Flat Bars Malaysia, Hastelloy Hollow Bar Manufacturer in Ipoh, Hastelloy Alloy Round Bars Distributor in Malaysia, Hastelloy Polished Rods Dealer in West Kuala lumpur, Hastelloy Alloy Bars Supplier in Malaysia, Hastelloy Hollow Rods Price List in Kuala lumpur, Hastelloy Rectangular Bars Supplier in Kuala lumpur, Hastelloy Hexagonal Bars Exporter in West Kuala lumpur, Hastelloy Alloy T-Bars Exporter in Malaysia

Hastelloy Bars and Rods Specification

Dimensions	DIN, EN, ASTM, JIS, ASME, BS, AISI
Hastelloy Round Bar size	Diameter: 3-~800mm
Hastelloy Flat bar size	Thickness: 2 -100mm
Hastelloy Flat bar size	Width: 10 to 500mm
Hastelloy Bar Angle size	3mm20mm20mm~12mm100mm100mm
Channel Bar	80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness
Rectangular Bars Section	3.0 to 12.0mm thickness
Billet Size	1/2 to 495mm Diameter
Rectangles Size	33 x 30mm to 295 x 1066mm
Hollow Bar	32mm OD x 16mm ID to 250mm OD x 200mm ID)
Dimensions	Diameter / Height
Tolerance	H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Finish	Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black
Surface	Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished
Condition	Hardened & tempered, annealed
Technique	Stainless Steel Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod
Processing	Bar cutting to 650mm
Form	Rod, Round, Channel Bar, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc.

Chemical Compositions of Hastelloy Rods

Grade	UNS	Cr	Mo	Fe	C≤	Si≤	Co≤	Mn≤	P≤	S≤
B2	N10665	1.0max	26.0-30.0	2.0max	0.02	0.10	1.0	1.0	0.04	0.03
B3	N10675	1.0-3.0	27.0-32.0	1.0-3.0	0.01	0.10	3.0	3.0	0.03	0.01
X	N06002	20.5-23.0	8.0-10.0	17.0-20.0	0.05-0.15	1.0	0.5-2.5	1.0	0.04	0.03
C22	N06022	20.0-22.5	12.5-14.5	3.0-6.0	0.015	0.08	2.5	0.5	0.02	0.02
C2000	N06200	22.0-24.0	15.0-17.0	3.0max	0.01	0.08	2.0	0.5	0.025	0.01
C276	N10276	14.5-16.5	15.0-17.0	4.0-7.0	0.01	0.08	2.5	1.0	0.04

Hastelloy Alloy Bars Mechanical Properties

Mechanical properties	Tensile, min, ksi[MPa]	Yield, min, ksi[MPa]	Elongation, %(min)
B2	110[760]	51[350]	40
B3	110[760]	51[350]	40
X	100[690]	40[276]	35
C22	100[690]	45[310]	45
C2000	100[690]	45[310]	45
C276	100[690]	41[283]	40

You Need Our Support, to Have Any Projects?

Test Certificate

Why Aiman Metals?

Packaging

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Hastelloy Bars and Rods Types

Hastelloy Alloy Rectangular Bars Supplier in Malaysia, Hastelloy Rectangular Rods Exporter in Malaysia, Hastelloy Alloy Round Bars Stockist in Kuala lumpur, Hastelloy Hex Bars Supplier in Malaysia, Hastelloy Alloy Cold Drawn Round Bars Distributor in Malaysia, Hastelloy Alloy Rods Stockist Ipoh Hastelloy Rods Price in Ipoh, Hastelloy Alloy Round Bars Malaysia

Hastelloy Bars and Rods Uses

Hastelloy bars and rods find their place in industries where top-notch corrosion resistance is a must. You’ll often see them in chemical processing, marine engineering, power generation, and pharmaceutical manufacturing. In these fields, Hastelloy is utilized to create reactors, heat exchangers, pressure vessels, pumps, and valves that face aggressive chemicals or extreme temperatures. Its ability to resist pitting, stress corrosion cracking, and both oxidizing and reducing environments makes it a go-to choice for tough conditions. Plus, Hastelloy is highly favored in the aerospace and nuclear sectors.
