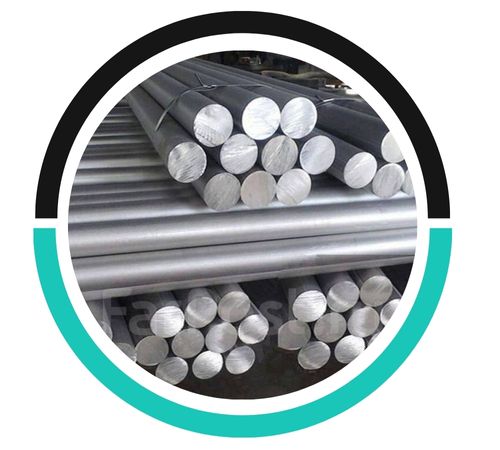

Aiman Metals, with its head office in Kuala Lumpur, Malaysia, is a well-known producer and supplier of high-quality metal products catering to various industries. The company, boasting strong experience in precision engineering and metallurgy, provides innovative and trustworthy solutions on a consistent basis as per global standards. Among its high-quality products, High-Speed Steel (HSS) M35 Bars are particularly notable for their superior hardness, strength, and wear resistance. Manufactured to operate under harsh conditions, these bars are commonly relied upon in demanding applications that involve accuracy and durability. Aiman Metals continues to strive for materials that offer long-term efficiency, productivity, and customer satisfaction.

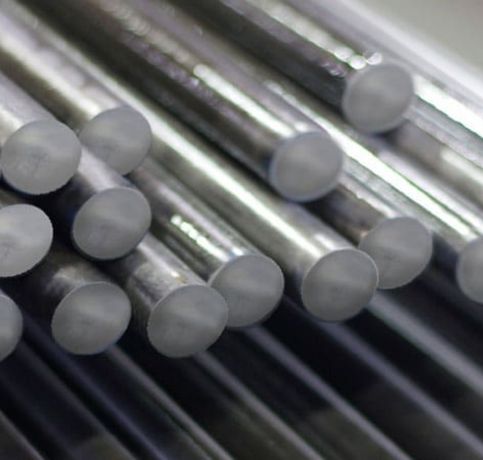

High-Speed Steel M35 Bar is a cobalt-alloyed grade that is renowned for its balance of hardness and toughness. The composition has 1.35% Carbon, 5% Cobalt, 6% Molybdenum, 4% Tungsten, 4% Chromium, and in addition 1.35% Vanadium and traces of Manganese. This optimized mixture provides superior wear resistance and thermal stability. Mechanically, M35 bars have a Rockwell hardness of approximately 67 HRC, tensile strength of up to 2500 MPa, and better resistance to abrasion. Their excellent durability, dimensional stability, and resistance to heavy stresses make them suitable for high-precision cutting and tooling operations.
| ASTM A600 | C | Mn | P | S | Si | Cr | V | Mo | W | Co | ||||||||
| M35 | 0.82 | 0.95 | 0.15 | 0.40 | 0.03 | 0.03 | 0.20 | 0.45 | 3.80 | 4.50 | 1.75 | 2.15 | 4.75 | 5.25 | 5.50 | 6.50 | 4.60 | 5.00 |
| DIN ISO 4957 | C | Mn | P | S | Si | Cr | V | Mo | W | Co | ||||||||
| 1.3243/HS6-5-2-5 | 0.87 | 0.95 | … | 0.40 | 0.03 | 0.03 | … | 0.45 | 3.80 | 4.50 | 1.70 | 2.10 | 4.70 | 5.20 | 5.90 | 6.70 | 4.50 | 5.00 |
| JIS G4403 | C | Mn | P | S | Si | Cr | V | Mo | W | Co | ||||||||
| SKH55 | 0.87 | 0.95 | … | 0.40 | 0.03 | 0.03 | … | 0.45 | 3.80 | 4.50 | 1.70 | 2.10 | 4.70 | 5.20 | 5.90 | 6.70 | 4.50 | 5.00 |
| Temperature °C / °F | |||||||
| 20 / 70 | 400 / 750 | 600 / 1110 | |||||
| Density | Kg/m³ lbs/in³ | 8150 .294 | 8050 .290 | 7990 .228 | |||
| Modulus of Elasticity | kN/mm³² psi | 230 34 · 10 6 | 205 31 · 10 6 | 184 27 · 10 6 | |||
| Coefficient of Thermanl expansion from 20°C / 70°F | per °C per °F | – | 11.6 · 10-6 6.4 · 10-6 | 11.9 · 10-6 6.6 · 10-6 | |||
| Thermal Conductivity | W/m °C Btu/sq. ft. h °F/in. | 24 166 | 28 194 | 27 187 | |||
| Specific Heat | J/kg °C Btu/lb °F | 420 0.10 | 510 0.12 | 600 0.14 | |||
| Country | USA | German | Japan |
| Standard | ASTM A600 | DIN EN ISO 4957 | JIS G4403 |
| Grades | M35 | 1.3243/HS6-5-2-5 | SKH55 |
| Thermal properties | Metric | Imperial |
| CTE, linear (@21 – 399°C / 69.8 – 750°F) | 11.4 μm/m°C | 6.33 μin/in°F |
| CTE, linear (@21 – 593°C /69.8 – 1100°F) | 11.5 μm/m°C | 6.39 μin/in°F |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Yes, High-Speed Steel M35 can be welded, but it requires careful control of heat and preheating. Post-weld heat treatment is often necessary to restore its hardness and performance.
Yes, High-Speed Steel M35 bars can be customized in terms of dimensions, shape, and surface finish. Machining and heat treatment processes can also be tailored to meet specific performance requirements.
High-Speed Steel M35 Bars have widespread use in high-performance cutting tools and parts industries. Their better hardness retention and thermal resistance make them ideal for use in the manufacture of drill bits, taps, milling cutters, reamers, and inserts. In the automotive industry, they are utilized in the production of precise components and machining tools, whereas in aerospace, they provide reliability under stress and temperature. The bars also find application in metalworking, shaping, and grinding operations, providing extended tool life and reliable performance. Production facilities like M35 due to its capacity to enhance productivity, efficiency, and general quality of machining.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
