Incoloy 330 bars and rods are nickel-chromium-iron high-temperature alloys intended for superior oxidation, carburization, and scaling resistance at very hot environments. Frequently utilized for thermal processing and industrial furnace use, Incoloy 330 exhibits excellent structural strength and resistance to creep at temperatures in excess of 1000°C. The alloy is stable during periodic heating, and therefore suited for parts subjected to cyclic thermal as well as mechanical loading. Its thermal shock, corrosion, and carburization-induced embrittlement resistance provides long service life. These bars are manufactured to exacting standards to sustain high-temperature, high-stress operations in metallurgical and energy industries.
Incoloy 330 has a composition of about 35–37% nickel, 17–20% chromium, and the remainder iron with minor silicon and manganese. It yields a tensile strength of 500–650 MPa and superior creep strength. The alloy remains oxidation- and scale-resistant to 1150°C. Its microstructure is resistant to grain growth, embrittlement, and long-term heat exposure degradation. The material has good weldability and can be formed through conventional methods. Its resistance to carburizing and nitriding environments positions it as the best for high-heat structural components.
| Grade | Incoloy 330 – UNS N08330 |
|---|---|
| Specification | ASTM B511 UNS N08330, AMS 5716, ASTM B511, ASME SB511 |

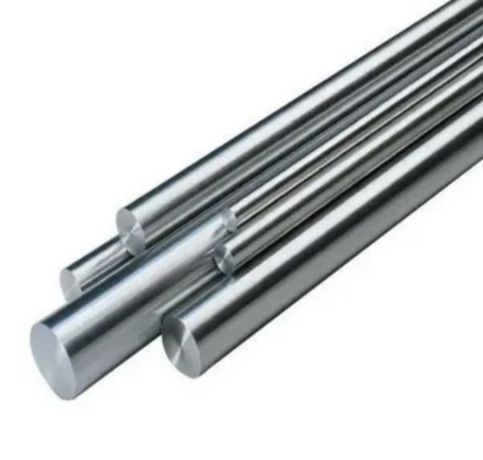

| Round bar size | Diameter: 3-~330mm |

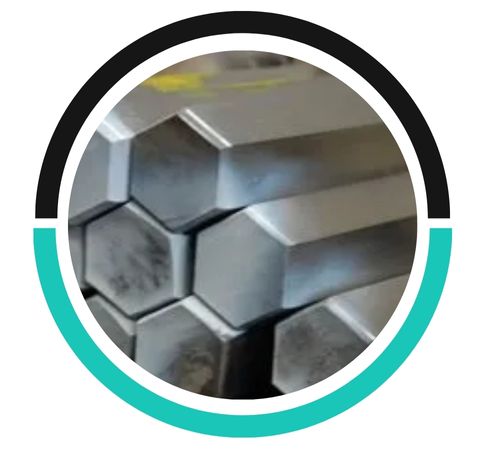

| Hex Bar size | 2-100mm A/F |

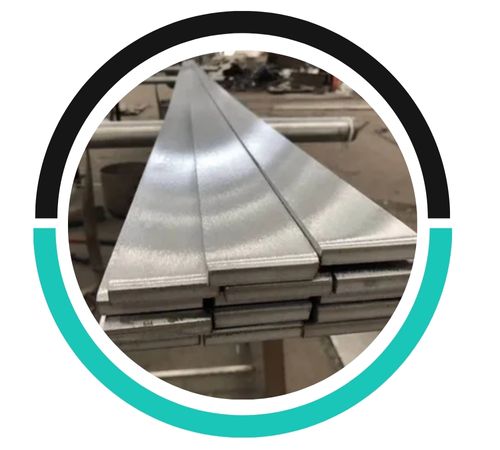

| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |

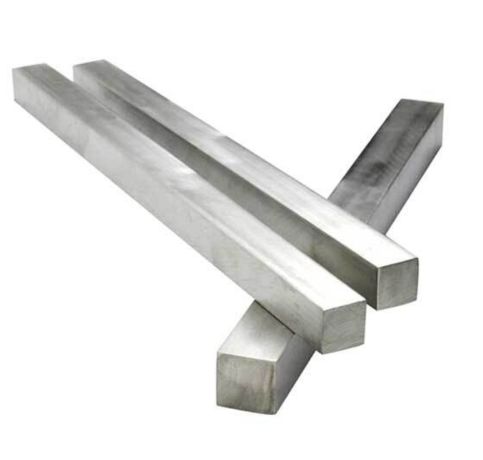

| Square bar size | 4 to 100mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Section | 3.0 to 12.0mm thickness |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |

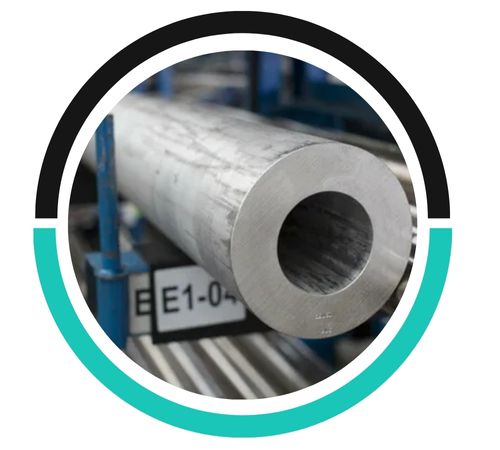

| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Billet Size | 1/2″ to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Round Bar Standard Dimensions | Diameter / Height: |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Condition | Hardened & tempered, annealed |
| Technique | Incoloy 330 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Processing | Bar cutting to 650mm |

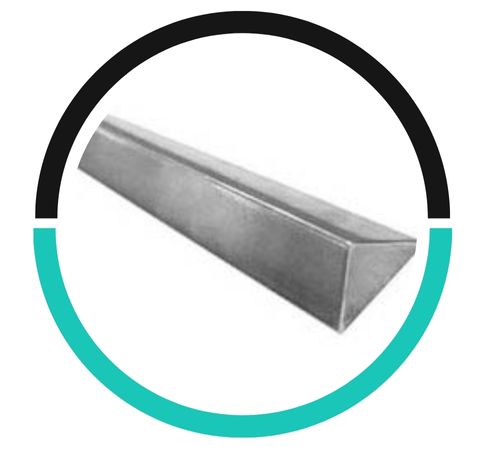

| Form | Incoloy 330 Rod,Channel Bar, Forging, Precision Ground Bar, Flat Bar, Round, Rod, T-Bar, Square, Blocks, Round Rod, Rings, Hollow, Threaded, Half Round Bar, Profiles, Triangle, Rectangle, Hex (A/F), Billet, Ingot, I/H Bar etc. |
| Our stockyad location for fast delivery across India | Shivamogga, Agra, Ahmedabad, Mumbai, Dhanbad, Thiruvananthapuram, Bengaluru, Tiruchirappalli, Pune, Noida, Tirunelveli, Bhubaneswar, Chennai, Coimbatore, Pimpri-Chinchwad, Hyderabad, Navi Mumbai |
| Our Incoloy 330 Round bar conforms to NACE MR0175/ISO 15156 | |
|
Element |
Average Nominal % |
|---|---|
|
Chromium |
18.00 – 22.00 |
|
Nickel |
34.00 37.00 |
|
Carbon |
0.08 Max |
|
Silicon |
1.00 – 1.50 |
|
Manganese |
2.00 Max |
|
Phosphorus |
0.03 Max |
|
Sulfur |
0.03 Max |
|
Copper |
1.00 Max |
|
Iron |
Balance |
|
Tensile Strength – ksi (min.) |
0.2% Offset Yield Strength – ksi (min.) |
Elongation in 2 inches – % (min.) |
Hardness – Rockwell B |
|---|---|---|---|
|
70 |
30 |
30 |
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Incoloy 330 | 1.4886 | N08330 |
Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
Yes, Incoloy 330 bars and rods offer excellent corrosion resistance, especially in high-temperature environments. They are highly resistant to oxidation, carburization, and sulfidation.
Yes, Incoloy 330 bars and rods can be customized in various sizes and lengths to meet specific requirements. They are available in different diameters, lengths, and shapes as per client specifications.
Incoloy 800, 800H, and 800HT bars and rods perform exceptionally well in high-temperature environments, maintaining their strength and resistance to oxidation and carburization. They are ideal for applications in furnaces, heat exchangers, and gas turbines.
Industrial furnace components, retorts, baskets, heat treatment fixtures, and combustion chambers utilize Incoloy 330 bars. They are also utilized in petrochemical reformers, recuperators, and high-temperature conveyor systems. The alloy finds application in carburizing or nitriding atmosphere components like radiant tubes, muffles, and flare stacks. Its thermal fatigue strength is beneficial in burner rings and annealing boxes. In the melting of metals, it is applied in crucibles and heating element supports. It is employed in boiler supports, exhaust ducts, and flue gas systems by power plants. Its performance at high temperatures qualifies it as essential for metallurgical and thermal engineering applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
