Located in Kuala Lumpur, Malaysia, Aiman Metals is a major producer and supplier of Incoloy 925 Bars and Rods that offer high-quality products for exacting industrial processes. Incoloy 925 is a nickel-based high-performance alloy widely known for its superior strength, corrosion resistance, and resistance to oxidation and carburization at high temperatures. Designed to meet the demanding specifications of aerospace, chemical, petrochemical, marine, and power generation applications, our rods and bars guarantee exceptional performance, reliability, and longevity. In Aiman Metals, we prioritize precision manufacturing, strict quality control, and total customer satisfaction in delivering materials that function flawlessly in hostile and severe service conditions.
Incoloy 925 Rods and Bars consist mainly of Nickel (40–50%), Iron (30–40%), and Chromium (19–23%) with the addition of Molybdenum (3–4%), Titanium (1.5–2.5%), and Aluminum (1–2%). The combination gives excellent corrosion resistance, particularly towards seawater, sulfuric acid, and chloride stress corrosion cracking. The alloy is high in tensile strength, possess good weldability, and has a high resistance against compression, oxidation, creep, and fatigue. Engineered for high-temperature application, Incoloy 925 retains structural integrity at severe mechanical and thermal stresses and is suited for long-term performance under harsh operating conditions.
| Standards | ASTM B805, ASME SB 805 |
|---|---|
| Specifications | DIN, EN, ASTM, JIS, ASME, BS, AISI |

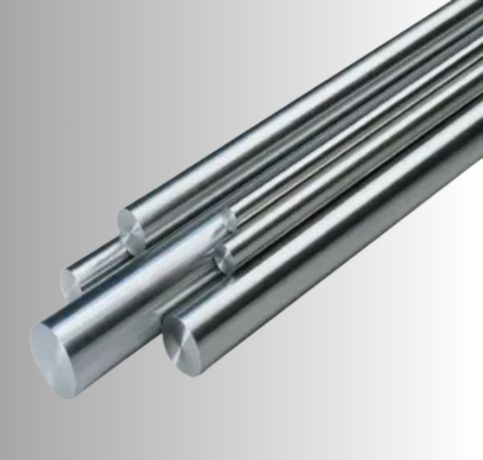

| 925 Incoloy Round Bars size | Diameter: 3-~800mm |

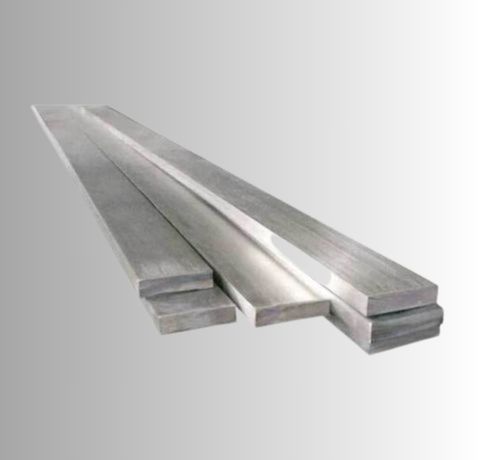

| Incoloy 925 Flat Bars size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Incoloy 925 Angle Bars size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Incoloy 925 Channel Bars | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Alloy 925 Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Incoloy 925 Billet Size | 1/2 to 495mm Diameter |
| Incoloy 925 Rectangle Bar Size | 33 x 30mm to 295 x 1066mm |
| Incoloy 925 Hex Bar size | 2-100mm A/F |
| Incoloy 925 Hollow Bars | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Diameter | 20mm, 30mm, 50mm, 80mm, 100mm, 150mm, 200mm, 500mm |
| Length | 1m-12m or as required |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish | hot rolled annealed, peeled, Bright, hot-worked and cold-worked rod and bar, centreless ground, Centreless Ground and Black, Polish, Cold Rolled (CR), hot rolled ( R), smooth turned, Cold (bright) drawn, Grinding, slit rolled edge, Rough Turned. |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Cold Drawn, Hot Rolled, Forged Round Bars, Cold Rolled, Rod |
| Processing | Bars cutting to 650mm |
| Form | Rod, Round, Channel Bars, T-Bars, Flat Bars, Precision Ground Bars, Blocks, Square, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bars, Ingot, Billet, I/H Bars, Forging etc. |
| Grade | Ni | Cr | Fe | Si | Mo | Cu | Mn | C | S | Al |
| Incoloy 925 | 42 – 46 | 19.55 – 22.5 | 22 min | 0.5 max | 2.5 – 3.5 | 1.5 – 3.0 | 1.0 max | 0.03 max | 0.03 max | 0.1 – 0.5 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.14 g/cm3 | 1343°C | 650 | 300 | 30 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Incoloy 925 | – | N09925 |
Yes, Incoloy 925 rods are highly corrosion-resistant, particularly in aggressive environments such as acidic and chloride-containing media. Their composition includes nickel, iron, and chromium, enhancing their resistance to corrosion, pitting, and stress corrosion cracking.
Yes, Incoloy 925 bars can be customized in size and length to meet specific requirements. They are available in various dimensions and can be tailored for different industrial applications.
Incoloy 925 bars perform exceptionally well in high-temperature environments, maintaining strength and stability. Their high nickel and chromium content provides excellent resistance to oxidation and carburization at elevated temperatures.
Incoloy 925 Bars and Rods are extensively applied in strength-intensive industries with heat resistance and superior corrosion protection. In the aerospace industry, they are used for parts subjected to harsh temperatures and pressures. In chemical processing, they are best suited to reactors, heat exchangers, and piping systems that deal with aggressive chemicals. In the oil and gas sector, they are used in equipment of wellheads, valves, and tubulars because they are resistant to acid gas and chloride stress corrosion cracking. In sea environments, they work well in seawater systems and offshore platforms. They are also used in the power generation sector for parts of boilers and turbine components.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
