Jethete Steel M152 Bars are martensitic stainless steel bars with high performance, which are specifically designed for applications in aerospace, turbine, and high-temperature engineering. These bars are well known for their high mechanical strength, thermal fatigue resistance, and long-term dimensional stability, which make them suitable for harsh environments. Jethete M152 has a good balance of toughness, creep resistance, and corrosion resistance in moderately aggressive environments. These bars are provided in precision-engineered shapes, which are appropriate for use in high fatigue strength and performance in applications at high temperatures. Their structural integrity and metallurgical composition make them a reliable material used in components of jet engines, power plants, and heavy industry.
Jethete M152 Bars consist mainly of chromium, nickel, and molybdenum with minor additions of vanadium, carbon, manganese, and silicon. This controlled alloying is satisfactory in terms of hardenability and heat resistance. Upon heat treatment, these bars generally have a tensile strength of 1000 to 1250 MPa and a yield strength of 850 to 1050 MPa. They are in the hardness range of 30 to 36 HRC. Jethete M152 possesses mechanical stability and creep resistance up to 550°C, with exceptional performance under cyclic thermal stress and sustained mechanical loading, making it suitable for high-reliability use.
| Specification : | EN, DIN, JIS, ASTM, BS, ASME, AISI |

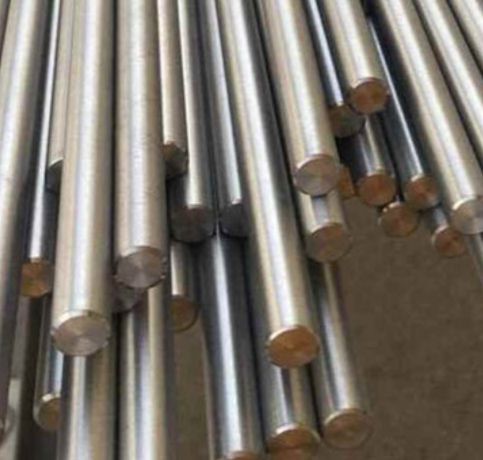

| Standard Specification : | ASTM A565 / ASME SA565 |
| Size : | 15NB to 150NB IN |
| Diameter : | 3.17mm to 350mm diameter |
| Length : | 100 mm to 3000 mm Long & Above |

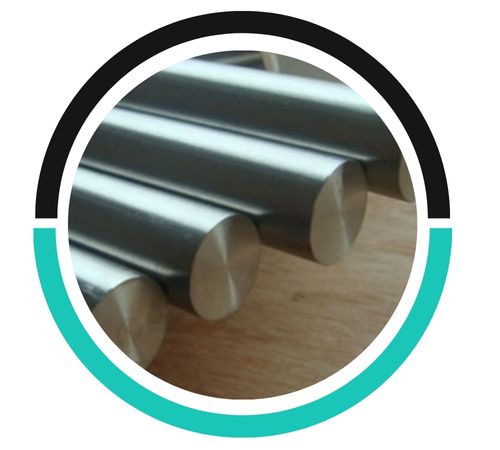

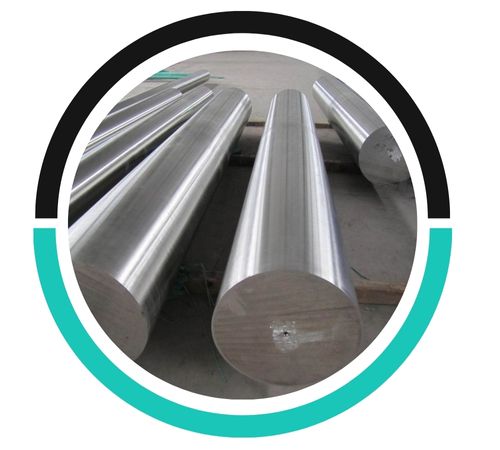

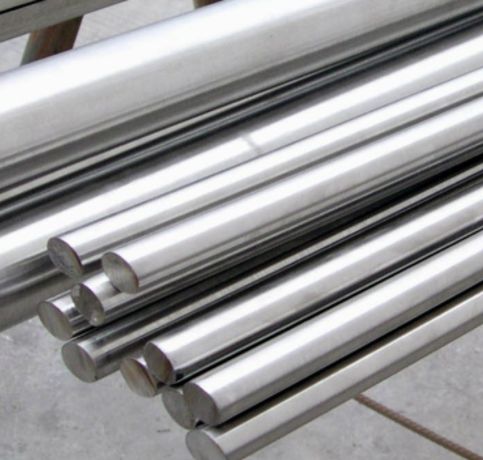

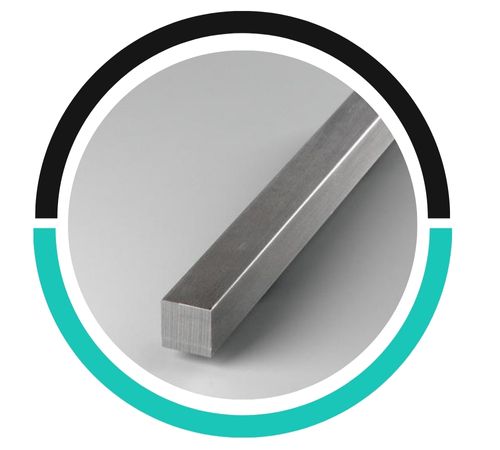

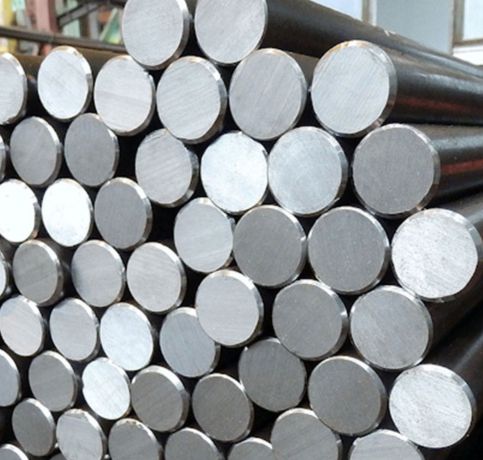

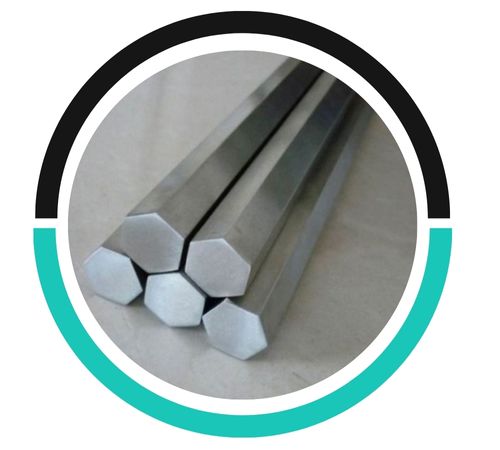

| Form : | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |

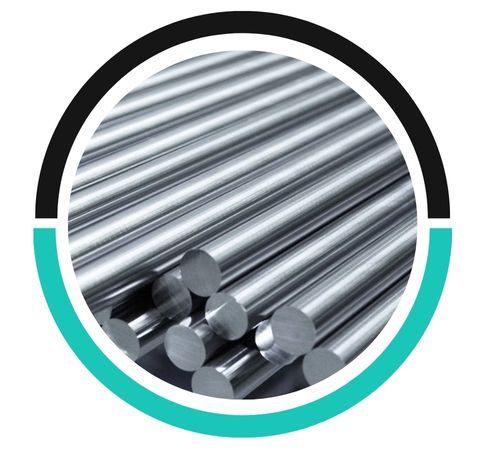

| Surface : | Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline |
| Condition : | Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished |
| C | Si | Mn | P+S max | Cr | Mo | Ni | N | V |
| 0.08-0.13 | 0.35 max | 0.50-0.90 | P 0.030 S 0.025 | 11-12.5 | 1.50-2.0 | 2-3 | 0.02-0.04 | 0.25-0.40 |
| Grade | Treatment | Tensile Strength Mpa | Yield Strength Mpa | Elongation % | Hardness HB | Ruling Section |
| S151A S151D | Softened Finally Heat Treated | 930-1130 | 780 | 14 | 311max 286-311 | – 150mm |
| S159A S159D | Softened Finally Heat Treated | 1100-1300 | 900 | 8 | 311 max 321-388 | 50mm |
| AMS 5719 AMS 5719 | Annealed Hardened & Double Templerd | 1069 min | 896 | 12 | 311 341-375 | – – |
| STANDARD | UNS | WERKSTOFF NR. |
| Jethete M152 | S64152 | 1.4933 |
Yes, Jethete M152 steel bars are available in various sizes and forms, including round bars, sheets, and plates, tailored to specific industrial applications like aerospace and power generation.
Yes, Jethete M152 steel bars can be welded. Preheating (typically ~200°C) and post-weld heat treatment are recommended to minimize residual stresses and maintain mechanical properties. Use compatible filler material.
Jethete Steel M152 Bars are employed extensively in aerospace parts such as turbine blades, jet engine shafts, and structural components that need high strength and heat resistance. In the field of power generation, they are utilized in gas turbines, combustion chamber components, and high-temperature bolts and fasteners. Their superior creep and fatigue characteristics suit their application in nuclear power plant internals and high-pressure process valves. They are further utilized in motorsport and performance engineering, where weight, accuracy, and thermal resistance are paramount. These bars are used where elements have to withstand excessive mechanical and thermal stress with long-term reliability.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
