Aiman Metals is a reputable manufacturer and supplier of Monel 400 bars and rods, proudly based in Kuala Lumpur, Malaysia. With years of experience in providing high-performance metal alloys, Aiman Metals has built a solid reputation for delivering top-notch Monel 400 products that adhere to international standards. Monel 400, a nickel-copper alloy, is highly regarded for its exceptional resistance to corrosion, particularly in marine and chemical settings. Aiman Metals crafts Monel 400 bars and rods with precise dimensions and impressive mechanical properties, catering to a variety of industries such as oil and gas, marine engineering, and chemical processing, both in Malaysia and beyond.
These Monel 400 bars and rods are primarily made up of nickel (about 63%) and copper (around 28–34%), along with trace amounts of iron, manganese, and other elements. This solid-solution alloy showcases remarkable mechanical properties, boasting a tensile strength of 480–620 MPa, yield strength of 170–345 MPa, and an elongation of up to 35%. It retains good ductility and toughness across a wide temperature range, with Brinell hardness typically falling between 110 and 180 HB. Monel 400 also excels in resisting stress-corrosion cracking, pitting, and acid attacks, making it perfect for extreme environments.
| Standard | ASTM B164, ASME SB164 |

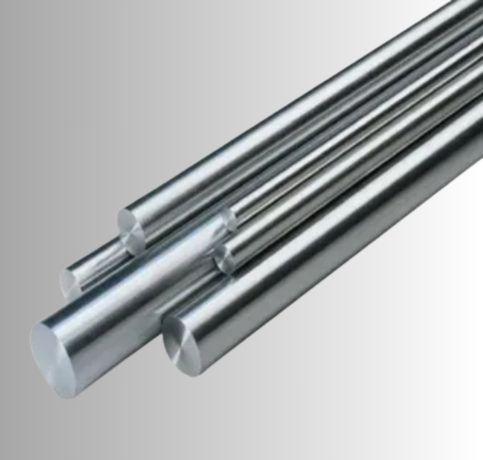

| Round Bar Size | 3mm~ 800mm |

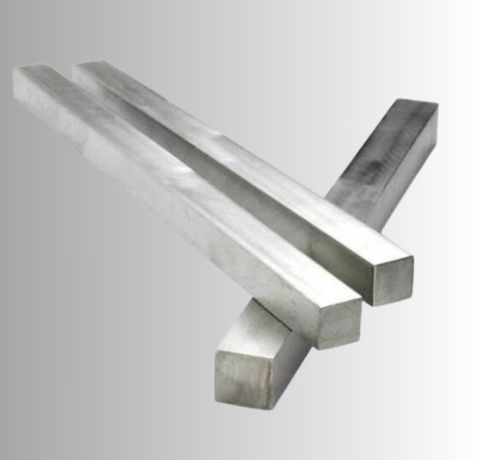

| Square Bar Size | 4mm* 4mm ~100mm* 100mm |
| Flat Bar Size | 2mm ~ 100mm |

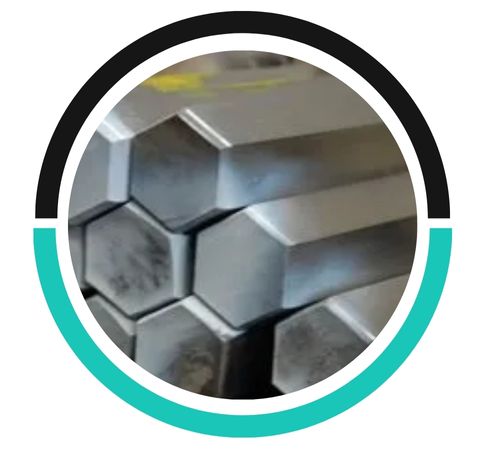

| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| Grade | Ni | Fe | C | Mn | Si | Cu | Al | S |
| Monel 400 | 63.0 min | 1.0 – 2.5 | 0.3 max | 2.0 max | 0.5 max | 28.0 – 34.0 | 0.50 max | 0.02 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 35000 , MPa – 240 | 40 % |
| STANDARD | WERKSTOFF NR. | UNS | GOST | AFNOR | JIS | BS | EN |
| Monel 400 | 2.4360 | N04400 | МНЖМц 28-2,5-1,5 | NU-30M | NW 4400 | NA 13 | NiCu30Fe |
Yes, Monel Alloy 400 Bars are highly corrosion-resistant, especially in seawater and acidic environments. Their excellent resistance to pitting, crevice corrosion, and stress corrosion cracking makes them ideal for harsh conditions.
Yes, Monel 400 rods can be customized in size and length according to specific requirements. They are available in various diameters and lengths to suit different industrial applications.
Monel Alloy 400 Bars and Rods perform well in high-temperature environments, maintaining strength and resistance to oxidation. They can withstand temperatures up to 1,000°F (538°C) without significant degradation.
Monel 400 bars and rods are extensively utilized in industries that require exceptional corrosion resistance and mechanical durability. They are particularly suited for marine engineering applications, such as propeller shafts, seawater valves, and pump components, thanks to their ability to withstand saltwater corrosion. In the chemical and petrochemical industries, Monel 400 is employed in heat exchangers, piping systems, and chemical processing equipment that deal with sulfuric and hydrofluoric acids. Furthermore, it is also used in oil and gas extraction, aerospace components, and power generation systems, where both strength and corrosion resistance are essential.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
