Monel K500 Forgings

Aiman Metals stands out as a trusted manufacturer and supplier of Monel K500 Forgings right in Kuala Lumpur, Malaysia. They specialize in delivering top-notch nickel alloy solutions tailored for industries like marine, oil & gas, aerospace, and chemical processing. Monel K500 is a remarkable precipitation-hardened nickel-copper alloy, celebrated for its outstanding corrosion resistance, impressive strength, and toughness—even in freezing temperatures. Aiman Metals offers Monel K500 forgings in a variety of custom sizes, shapes, and specifications, all crafted to meet ASTM standards and rigorous service demands. With their in-house machining capabilities and a commitment to strict quality control, Aiman Metals guarantees precision-forged products that can handle the toughest and most corrosive environments.

Monel K500 Compression Forging Kuantan, Monel N05500 Impression Die Forging Size Chart, Monel 2.4375 Upset Forging Dealer in Kuantan, ASTM B564 Monel K500 Forgings Price in Malaysia, Stockist of Monel UNS N05500 Forgings in Kuala lumpur, Monel Alloy K500 Closed Die Forging Price List in Kuala lumpur, Monel UNS N05500 Open Die Forging Weight Chart, Monel UNS N05500 Closed Die Hammer Forging Supplier in Malaysia, Monel Alloy K500 Press Forging Manufacturer in West Kuala lumpur

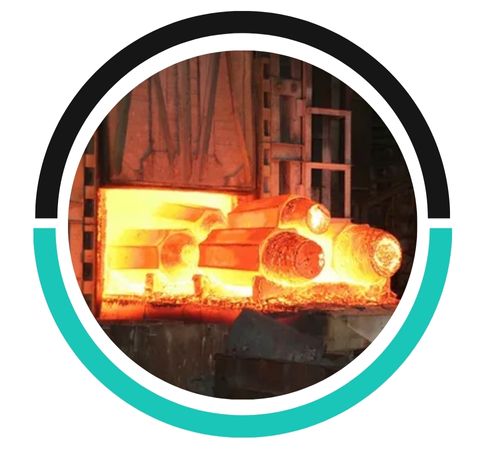

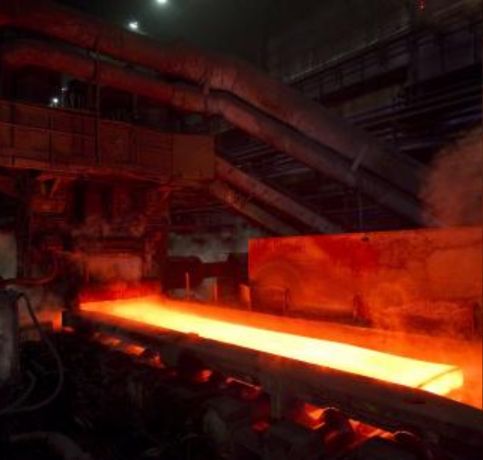

Monel K500 Hot Forging

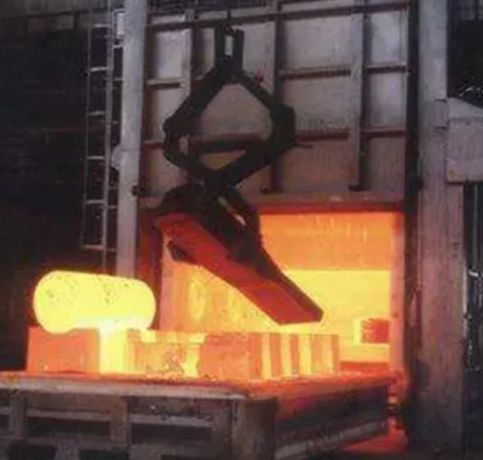

Monel K500 Open Die Forging

Monel K500 Closed Die Forging

What is Monel K500 Forgings?

Monel K500 Forgings are primarily made up of nickel (about 63%) and copper (30%), with a touch of aluminum and titanium that allows for age-hardening, boosting strength even further. After undergoing heat treatment, this alloy can achieve tensile strengths of up to 1100 MPa and yield strengths exceeding 750 MPa. It maintains excellent corrosion resistance, much like Monel 400, but with nearly double the strength. This material is non-magnetic, resistant to stress-corrosion cracking, and boasts good mechanical stability across a wide temperature range.

Monel K500 Open Die Hammer Forging Supplier in Kuala lumpur, Monel Alloy N05500 Press Forgings in West Kuala lumpur, Monel DIN 2.4375 Open Die Hammer Forging Stockist in Kuala lumpur, ASTM A182 Monel N05500 Forging Price List West Kuala lumpur, Monel UNS N05500 Impression Die Forging Distributor in Malaysia, Monel Alloy UNS N05500 Cold Forging Stockist Ipoh, UNS N05500 Monel K500 Open Die Forging Exporter in Malaysia, Monel UNS N05500 Compression Forging Price in Ipoh, 2.4375 Monel Upset Forging Dimensions, UNS N05500 Monel Forgings Supplier in Malaysia

Monel K500 Forgings Specification

Specifications ASTM B564 / ASME SB564

Flat bar blocks up to 27″ width and 15,000 lbs.

Cylinders and sleeves up to 50″ maximum O.D. and 65″ maximum length

Discs and hubs up to 50″ diameter and 20,000 lbs.

Rolled, hand forged or mandrel forged rings up to 84″ maximum O.D. and 40″ maximum length

Rounds, shafts and step shafts up to 144″ maximum length and 20,000 lbs.

Grades Monel K500 Forging UNS (N05500), DIN (2.4375)

BS3072 NA18, QQ-N-286, DIN 17750, ISO 6208

AMS 4676, BS3076 NA18, ASTM B 865, DIN 17752, QQ-N-286, ISO 9723

AMS 4676, ISO 6208, ASTM B 865, DIN 17752, QQ-N-286

BS3076, NA18, DIN 17753, QQ-N-286, ISO 9724

DIN 17754, QQ-N-286, ISO 9725

UNS N05500, BS6076 NA13, Werkstoff Nr. 2.4375, MIL-N-24549, NACE MR-01-75

Chemical Compositions of Monel Alloy K500 Forgings

Grade	C	Mn	Si	S	Cu	Fe	Ni
Monel K500	0.25 max	1.5 max	0.5 max	0.010 max	27.00 – 33.00	0.5 – 2	63.00 min

You Need Our Support, to Have Any Projects?

Test Certificate

Why Aiman Metals?

Packaging

Monel K500 Forgings Mechanical Properties

Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
8.44 g/cm3	1350 °C (2460 °F)	Psi – 115000 , MPa – 790	Psi – 160000 , MPa – 1100	20 %

Monel K500 Forgings Equivalent Grades

STANDARD	UNS	WNR.
Monel K500	N05500	2.4375

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Monel K500 Forgings Types

ASME SB564 Monel N05500 Hot Forging Exporter in Kuantan, Monel K500 Forgings Manufacturer in Ipoh, N05500 Monel Industrial Forgings Distributor Exporter in Malaysia, Monel UNS N05500 Seamless Rolled Forging Supplier in Kuala lumpur, UNS N05500 Monel Cold Forging Size Chart in Kuala lumpur, Monel 2.4375 Compression Forging Size Chart in Malaysia, Monel K500 Open Die Forging Stockist in Kuala lumpur, ASTM B564 Monel K500 Forgings Supplier in Malaysia

Monel K500 Forgings Uses

You’ll find Monel K500 Forgings in essential components such as pump shafts, valve parts, fasteners, marine propeller shafts, oil-well tools, and heat exchanger components. Its ability to endure high-pressure, high-temperature, and aggressive chemical environments makes it a perfect fit for subsea, offshore, and petroleum refining applications. In marine engineering, Monel K500 is particularly valued for parts that come into contact with saltwater and face biofouling challenges. Its remarkable mechanical properties and corrosion resistance also make it an excellent choice for aerospace structural components, nuclear systems, and cryogenic environments where reliability is crucial.

Our Products

Other Products

Other Material

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
