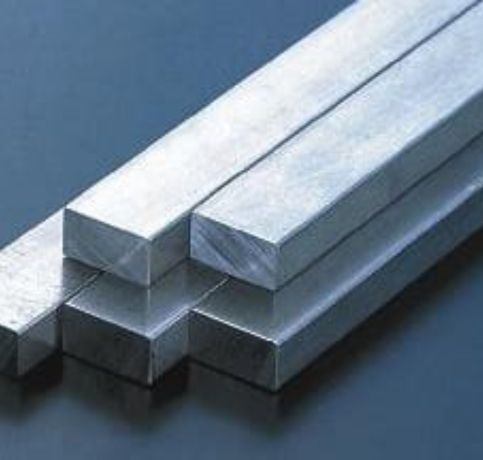

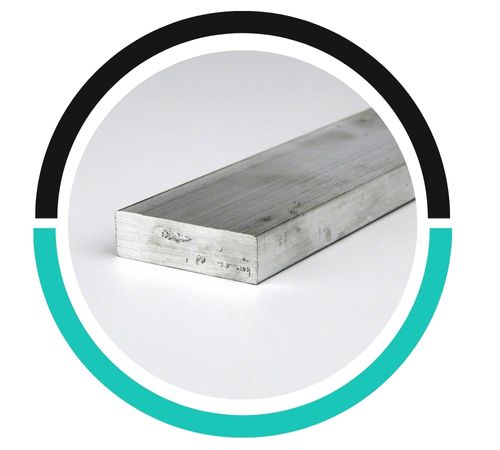

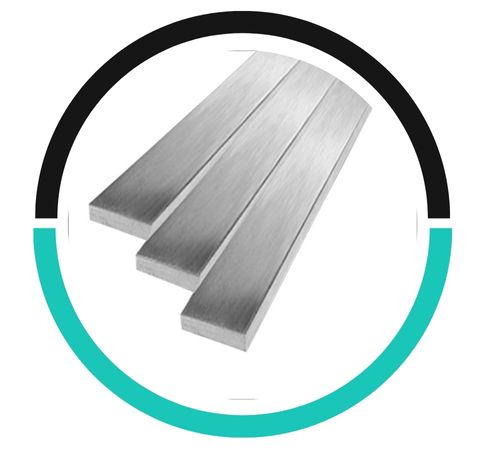

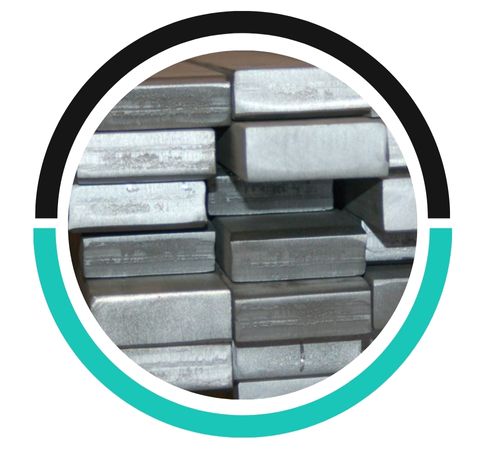

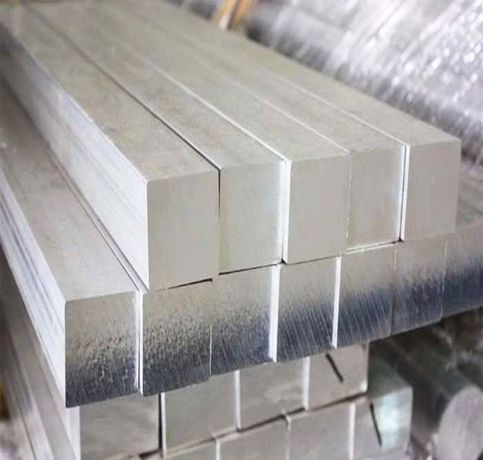

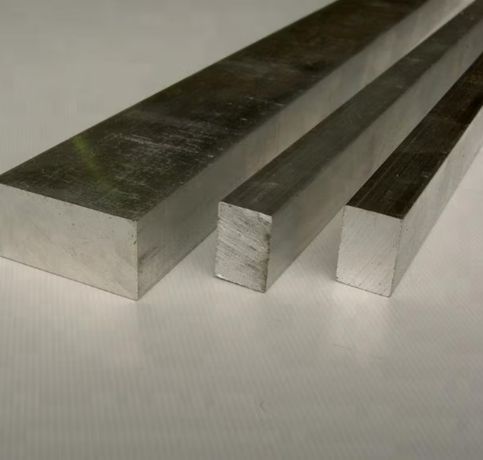

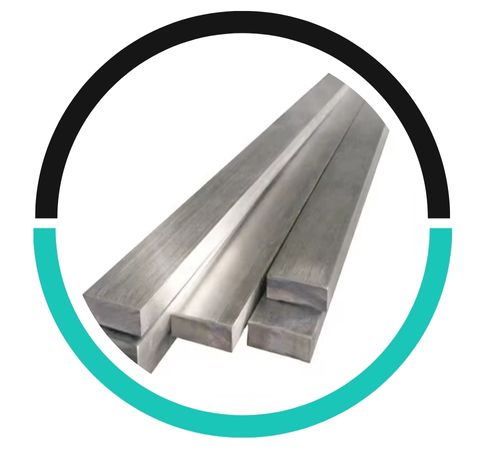

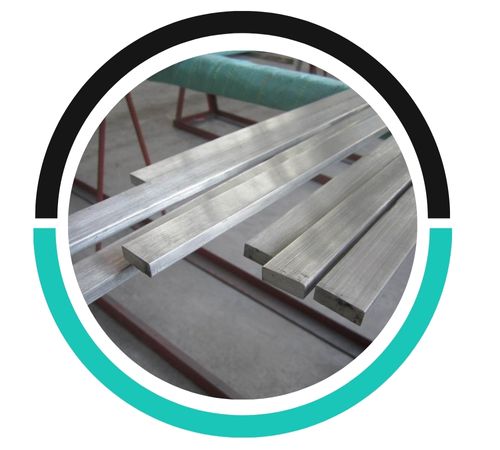

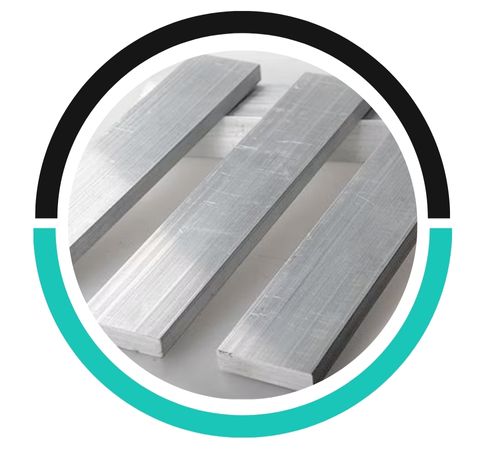

Nickel Alloy Rectangular Bars are designed for highly demanding industrial applications that demand outstanding strength, corrosion resistance, and thermal stability. Made in different grades like Inconel, Monel, and Hastelloy, the bars are versatile in shape and performance. Their rectangular shape lends itself to easy machining and integration into assemblies and fabrication work. They are made with close dimensional tolerances and smooth finishes, which make them best suited for custom-engineered components. These bars find wide applications in industries such as aerospace, marine, power generation, and petrochemical where reliability in harsh operating conditions is critical.
Nickel Alloy Rectangular Bars generally contain 60–70% nickel, with the addition of elements such as chromium, molybdenum, iron, and copper depending on the grade. These additions increase resistance to oxidation, scaling, and chemical corrosion. Mechanical properties are also different for each alloy but tend to encompass tensile strengths of 600–1000 MPa and sound ductility. Nickel alloys demonstrate strength at high temperatures and have impressive fatigue life. They also resist stress corrosion crack and structural stability in a broad range of temperatures, which makes them compatible for both cryogenic and high-temperature environments.
| Specifications | ASTM B160 / ASME SB160 |
| Dimension Standard | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Bar Diameter | 3 ~ 800mm | Rectangular Bars | Size: 33 x 30mm to 295 x 1066mm. Thickness: 3.0 to 12.0mm. |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients requirements |
| Bar Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Rolled Bars Condition | Hardened & tempered, annealed |
| Cold Rolled Bar Technique | Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Ni | Fe | C | Mn | Si | Cu | Mg | Ti | S |
|---|---|---|---|---|---|---|---|---|
| 99.0 Min | 0.4 Max | 0.02 Max | 0.35 Max | 0.2 Max | 0.25 Max | 0.15 Max | 0.1 Max | 0.01 Max |
| 99.0 Min | 0.4 Max | 0.15 Max | 0.35 Max | 0.1 Max | 0.25 Max | – | – | 0.01 Max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.9 G/Cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@aimanmetals.com
Nickel Alloy Rectangular Bars are employed in severe stress environments like heat exchangers, pressure vessels, chemical reactors, and exhaust systems. Their rectangular shape is particularly ideal for structural pieces, support plates, brackets, and frames where flat surface contact or even loading distribution is necessary. These bars are perfect for aerospace, chemical processing, marine engineering, and power plant industries. Their resistance to corrosive chemicals, thermal creep, and oxidation guarantees long life and durability in hostile operating environments. They are also employed in machined-to-size components for pumps, turbines, and sealing systems.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
