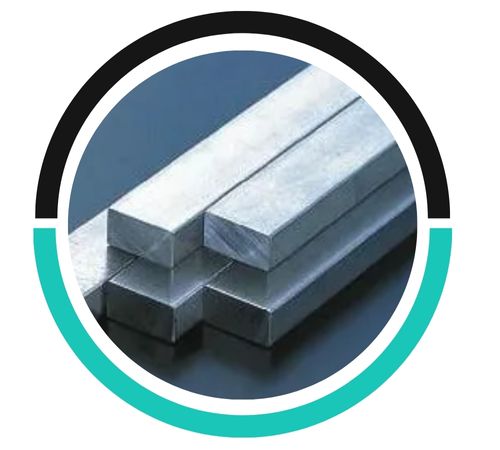

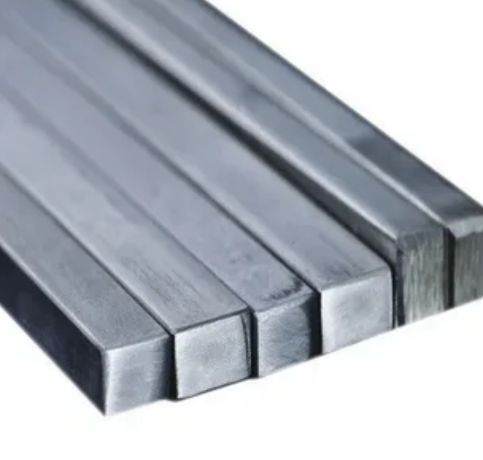

Aiman Metals stands out as a top-notch manufacturer and supplier of premium Stainless Steel 304 Square Bars and Rods, proudly based in Kuala Lumpur, Malaysia. Renowned for their commitment to product quality and exceptional customer service, Aiman Metals delivers stainless steel solutions that adhere to global standards across a variety of industries. Their SS 304 square bars come in multiple dimensions and surface finishes, catering to a wide array of applications, from construction and fabrication to engineering and manufacturing. With a strong emphasis on precision, durability, and timely delivery, Aiman Metals has earned a solid reputation in Malaysia’s stainless steel supply sector.
Stainless Steel 304 Square Bars and Rods are mainly made up of iron, featuring 18–20% chromium and 8–10.5% nickel, which provide outstanding corrosion resistance and formability. They also contain controlled amounts of carbon, manganese, silicon, phosphorus, and sulfur. SS 304 boasts a tensile strength of about 515 MPa and a yield strength of 205 MPa, along with impressive elongation (~40%) and remarkable toughness, even at cryogenic temperatures. In its annealed state, it is non-magnetic and is well-suited for welding, machining, and forming, making it one of the most adaptable stainless steel grades available.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| C | Mn | Si | P | S | Cr | Ni | N | |
|---|---|---|---|---|---|---|---|---|
| 304 | 0.07max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 10.5 | — |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304 | 515 | 205 | 40 | 92 | 201 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 304 Square Bars and Rods find extensive use across various industries, thanks to their superb corrosion resistance, ease of fabrication, and attractive appearance. In construction, they serve as frameworks, supports, and reinforcements. In the food and beverage sector, they are perfect for equipment and surfaces that require hygiene and easy cleaning. Other applications include automotive components, architectural structures, storage tanks, and piping systems. SS 304 square bars are also frequently utilized in general fabrication, machining parts, and furniture manufacturing, making them a versatile option for both industrial and commercial projects.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
