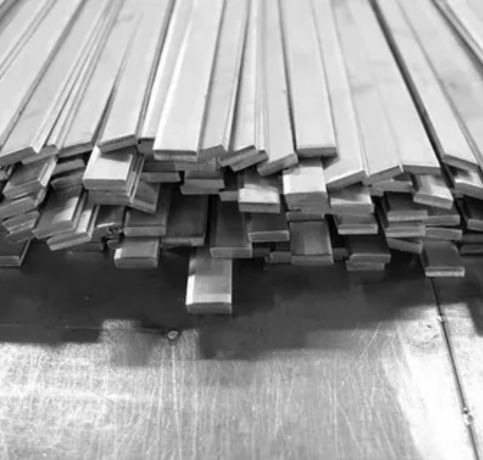

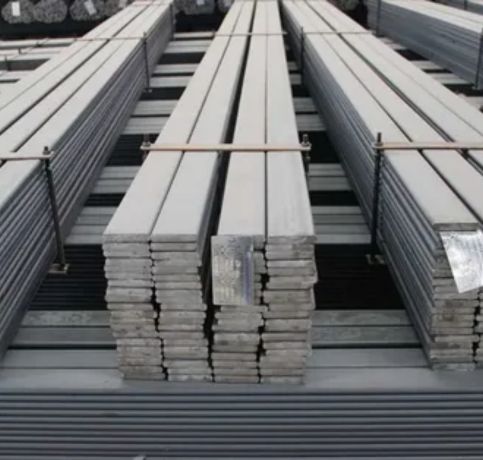

Stainless Steel 316 Flat Bars are primarily composed of iron, featuring around 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, which significantly boosts their corrosion resistance—especially in environments rich in chlorides. They also contain trace amounts of carbon, manganese, phosphorus, silicon, and sulfur. These bars boast a tensile strength of approximately 515 MPa, a yield strength of 205 MPa, and impressive ductility with an elongation of about 40%. They retain their toughness even at high and cryogenic temperatures, ensuring reliable performance in challenging conditions. Additionally, SS 316 flat bars are non-magnetic and well-suited for welding and forming processes.
Standard : ASTM A276, ASME SA276
Dimensions : EN, DIN, JIS, ASTM, BS, ASME, AISI, ASTM, ASME
Flat Bar Size : 2mm ~ 100mm
Thickness : 1/8″ – 3″
Width : 3/8” – 8”

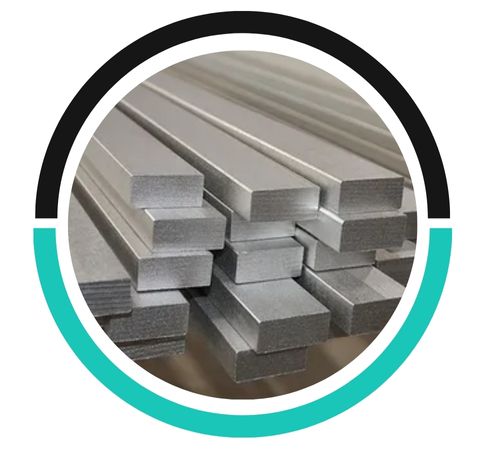

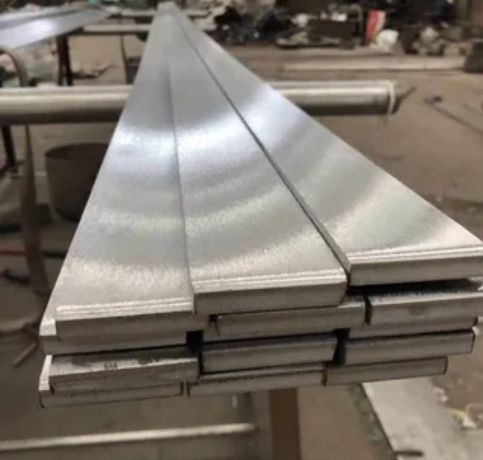

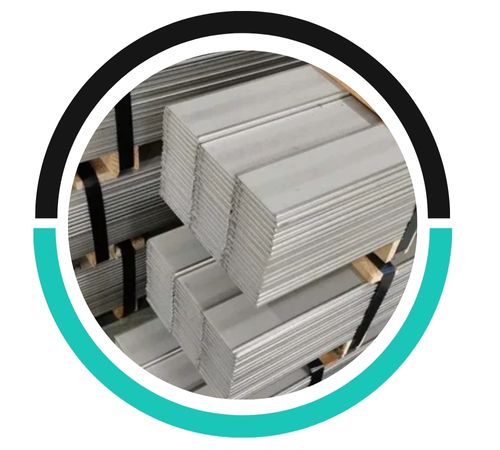

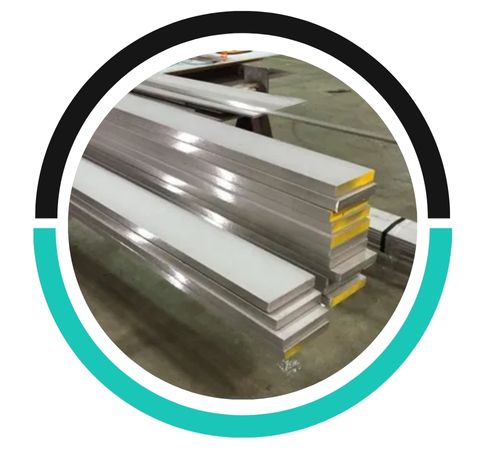

finish : Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black
| Element | SS 316 |
| C | 0.08 max |
| Mn | 2.0 max |
| Si | 1.0 max |
| P | 0.045 max |
| S | 0.030 max |
| Cr | 16 – 18 |
| Ni | 11 – 14 |
| Mo | 2 – 3 |
| Fe | 67.845 min |
| Element | SS 316 |
| Density | 8.0 g/cm3 |
| Melting Point | 1400 °C (2550 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17-11-02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
Stainless Steel 316 Flat Bars find extensive use in industries that demand exceptional corrosion resistance, particularly in harsh environments exposed to chlorides. They are perfect for marine components, chemical processing equipment, and offshore platforms due to their durability and resistance to pitting. In the food and pharmaceutical industries, their hygienic properties and ease of cleaning are highly valued. SS 316 flat bars are also utilized in architectural frameworks, bridges, brackets, and support structures where both strength and aesthetics are crucial. Their excellent formability and weldability further enhance their versatility in various applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
