Aiman Metals is a reputable manufacturer and supplier of top-notch stainless steel products based in Kuala Lumpur, Malaysia. They specialize in Stainless Steel 317 Hex Bars and Rods, providing outstanding solutions for industries that need exceptional corrosion resistance, particularly in acidic and chloride-heavy environments. These hex bars are crafted to meet international standards, ensuring precision, strength, and durability for demanding applications. With a strong focus on quality and customer satisfaction, Aiman Metals caters to a diverse range of sectors, including chemical processing, marine, pharmaceuticals, and pulp & paper industries, both in Malaysia and beyond, offering reliable and tailored stainless steel products.

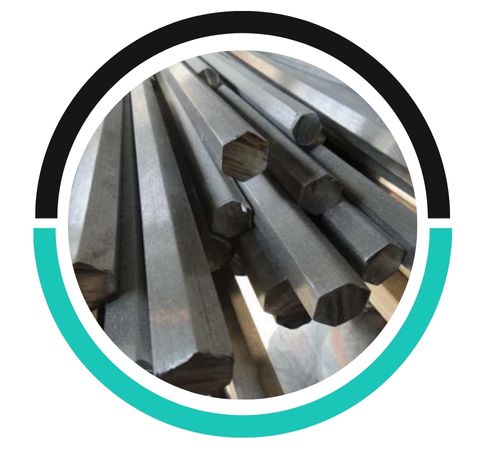

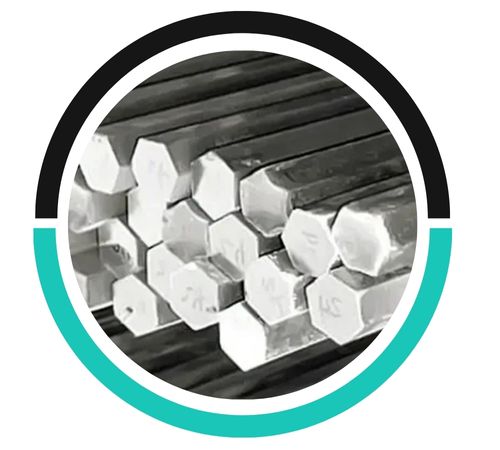

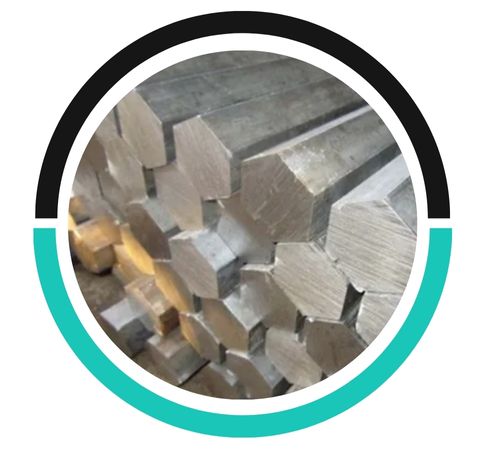

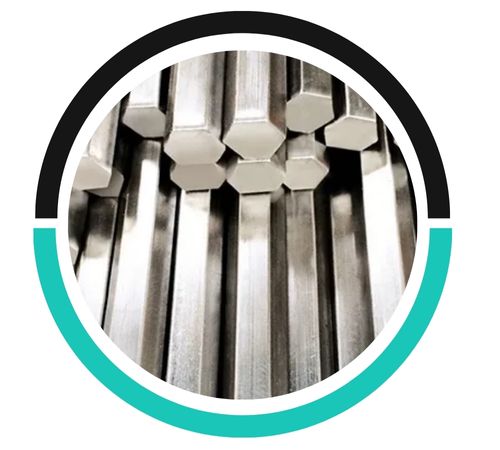

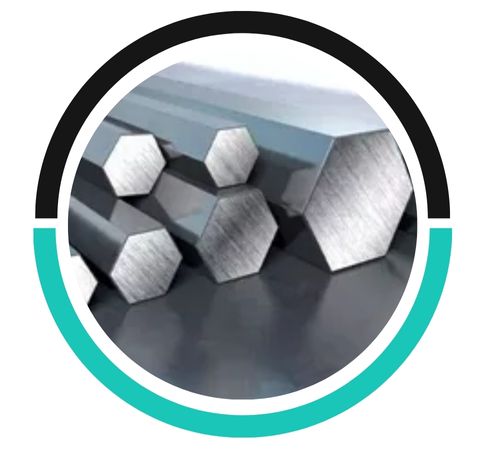

Stainless Steel 317 Hex Bar/Rod is an austenitic chromium-nickel-molybdenum stainless steel known for its superior corrosion resistance. Its typical makeup consists of 18–20% Chromium, 11–15% Nickel, and 3–4% Molybdenum, which enhances its ability to resist pitting and crevice corrosion in harsh environments. The maximum carbon content is 0.08%. It boasts a tensile strength of around 515 MPa, yield strength of 205 MPa, and elongation of 35–40%. SS 317 retains excellent mechanical properties even under high temperatures and corrosive conditions, making it perfect for structural and load-bearing applications in tough industrial settings.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 317 | 0.08 max. | 18.0 – 20.0 | 2.00 max. | 11.0 – 14.0 | 0.045 max. | 0.03 max. | 1.00 max. |
| Element | Density | Melting Range,℃ | Tensile Strength | Yield Strength | Elongation | Hardness (Brinell) |
| SS 317 | 8 | 1454 ℃ | 515 | 205 | 40 | 217 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 317 Hex Bars and Rods find extensive use in applications that demand high corrosion resistance and mechanical strength. They are commonly utilized in industries such as chemical and petrochemical processing, marine engineering, pulp and paper production, food and beverage manufacturing, and pharmaceuticals. These hex bars are perfect for components like fasteners, valves, pump shafts, heat exchangers, and pressure vessels that are exposed to acidic and chloride-rich environments. The hexagonal shape not only provides a better grip but also enhances performance in various applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
