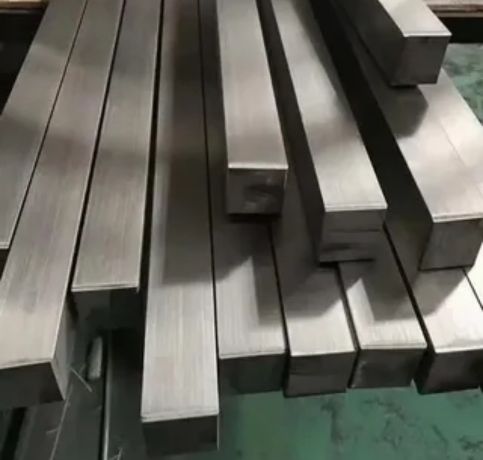

Aiman Metals stands out as a top-notch manufacturer and supplier of high-quality stainless steel products, proudly based in Kuala Lumpur, Malaysia. They specialize in Stainless Steel 317 Square Bars and Rods, offering materials that are engineered to perform exceptionally well in tough, corrosive industrial settings. SS 317 is an austenitic stainless steel alloy known for its remarkable resistance to chemical attacks, particularly in environments rich in chloride and sulfur. Aiman Metals ensures that their precision-crafted products meet international standards, delivering outstanding durability, strength, and quality. They cater to various sectors, including chemical processing, marine, pharmaceuticals, and food production, making Aiman Metals a trusted name for dependable stainless steel solutions.
Stainless Steel 317 Square Bars and Rods are made up of about 18–20% Chromium, 11–15% Nickel, and 3–4% Molybdenum, with a maximum carbon content of 0.08%. This specific composition greatly boosts resistance to pitting, crevice corrosion, and chemical attacks. The material boasts a tensile strength of around 515 MPa, a yield strength of 205 MPa, and an elongation of 35–40%. SS 317 retains its mechanical integrity even in highly corrosive and high-temperature environments. Its austenitic structure also allows for good formability and weldability, making it an excellent choice for fabrication and structural applications in challenging conditions.
Stainless Steel 317 Square Bars Specification :
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 317 | 0.08 max. | 18.0 – 20.0 | 2.00 max. | 11.0 – 14.0 | 0.045 max. | 0.03 max. | 1.00 max. |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi ” 75000, MPa ” 515 | Psi ” 30000, MPa ” 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 317 | 1.4449 | S31700 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 317 Square Bars and Rods are perfect for applications that demand outstanding corrosion resistance and structural strength. They are commonly used in chemical processing equipment, petrochemical refineries, food and beverage machinery, marine components, and pharmaceutical manufacturing. The high molybdenum content provides extra protection against chloride-induced corrosion, making SS 317 ideal for heat exchangers, storage tanks, evaporators, and piping systems. Its square shape not only adds strength but also makes it easier to work with in various applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Aiman Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Kuala lumpur, Malaysia
