Aiman Metals is a prominent manufacturer, supplier, and stockist of Stainless Steel 202 Bars and Rods, located in Kuala Lumpur, Malaysia. We supply large amounts of bars of various grades, specifications, and sizes with the option of custom cuts to suit customer needs. Manufactured from high-quality raw materials with the latest forging methods, Aiman Metals SS 202 bars and rods are free of manufacturing faults and are subjected to careful heat treatment processes to increase strength. With the possibility of various surface finishes, these bars are of high accuracy and performance. Exported to national and international customers, Aiman Metals provides safe and customized stainless steel solutions.
Stainless Steel 202 Bars and Rods contain predominantly iron, 17–19% chromium, 4–6% nickel, and 7.5–10% manganese, with trace amounts of carbon, silicon, and phosphorus. With this composition, the material has superior corrosion resistance, strength, and durability in various environments. In a mechanical sense, SS 202 has a tensile strength of around 520 MPa, yield strength of 205 MPa, and 40–50% medium elongation. The balanced attributes of the alloy render it ideal for hex bars, rods, and structural elements, providing dependability for demanding industrial, construction, and engineering uses where strength and performance are paramount.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 317l | 0.03 max. | 18.0 – 20.0 | 2.00 max. | 11.0 – 14.0 | 0.045 max. | 0.03 max. | 1.00 max. |
| Element | Density | Melting Range,℃ | Tensile Strength | Yield Strength | Elongation | Hardness (Brinell) |
| SS 317l | 8 | 1450 ℃ | 515 | 205 | 40 | 217 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |

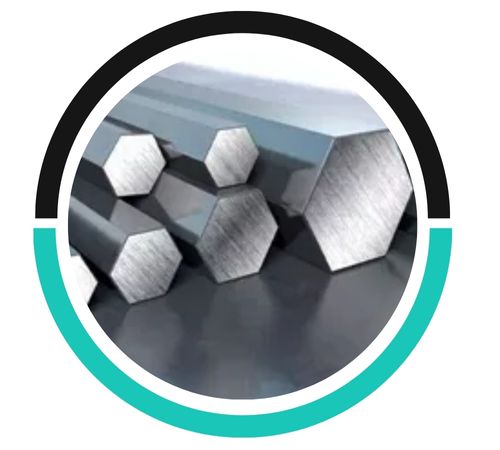

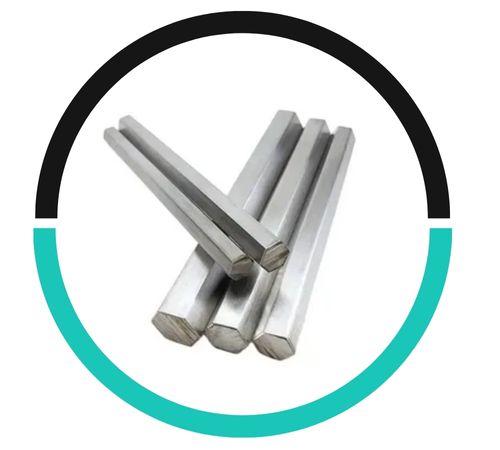

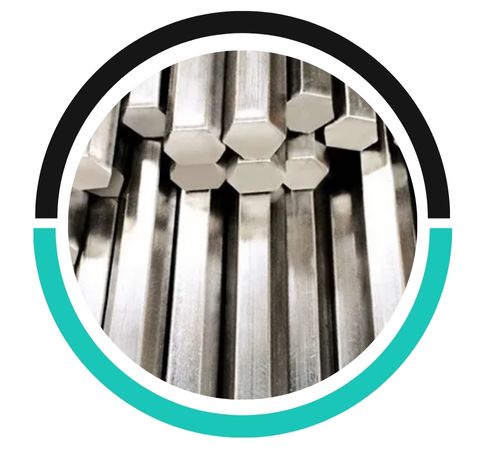

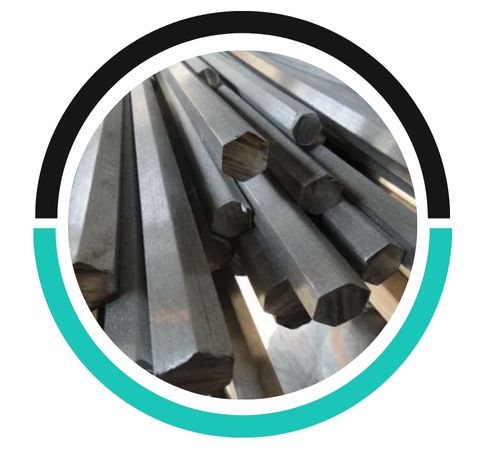

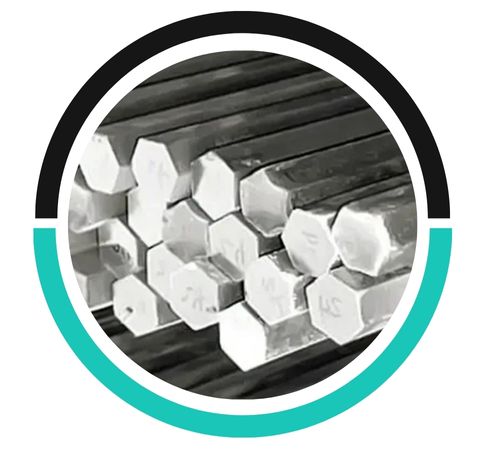

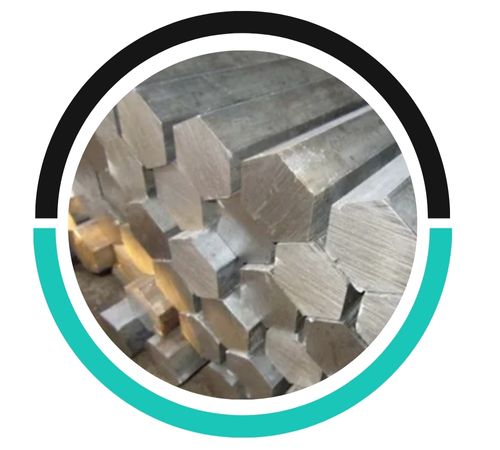

SS 317L Hex Bars/Rods are commonly used in chemical processing, marine environments, pharmaceuticals, and food processing due to their excellent corrosion resistance and high strength. They are ideal for handling aggressive chemicals, including sulfuric acid, bleaching solutions, and pulp liquor. In construction, they are used for structural components and fittings.
SS 317L Hex Bars/Rods typically range from 6 mm to 100 mm in diameter, with lengths up to 6 meters. Tolerances generally conform to ±0.5 mm for diameter. These dimensions and tolerances ensure precision for machining, making them ideal for applications requiring high strength, corrosion resistance, and tight fit.
The high chromium (18-20%) and molybdenum (3-4%) content in SS 317L enhances its resistance to pitting and crevice corrosion by forming a passive oxide layer that protects against chloride-induced degradation. The low carbon content further reduces the risk of stress corrosion cracking, ensuring durability in harsh chloride environments.
Stainless Steel 202 Hex Rods and Hex Bars find extensive usage in sectors demanding corrosion-resistant, robust, and long-lasting materials. They are used extensively in construction for brackets, railings, structural supports, and architectural frameworks. In the industry, they are best suited for bolts, nuts, screws, shafts, and fasteners. The material’s resistance to oxidation also fits for kitchen appliances, food processing, chemical plants, and marine environments. SS 202 is also applied in car parts and machinery components where strength and long-lasting performance are needed. Their versatility provides safe and reliable service in various industrial and commercial uses.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
