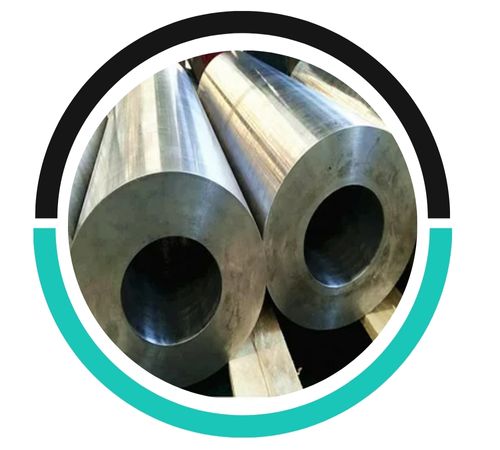

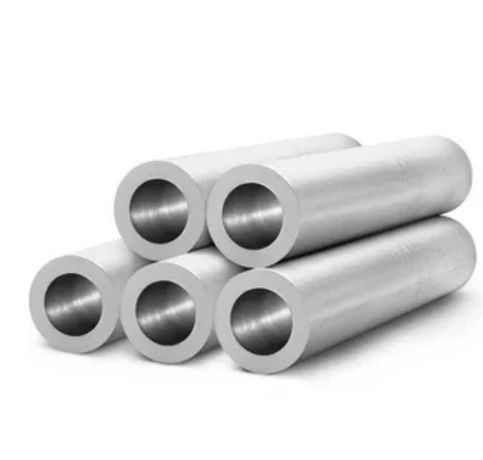

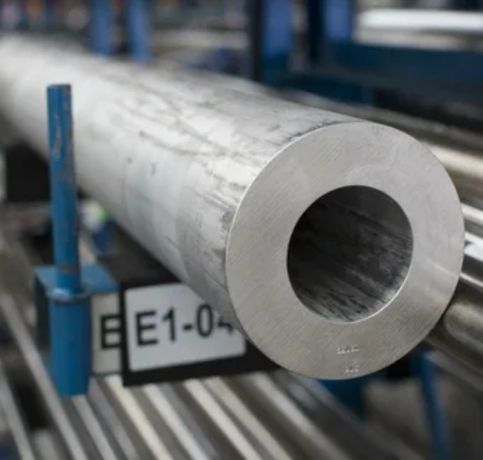

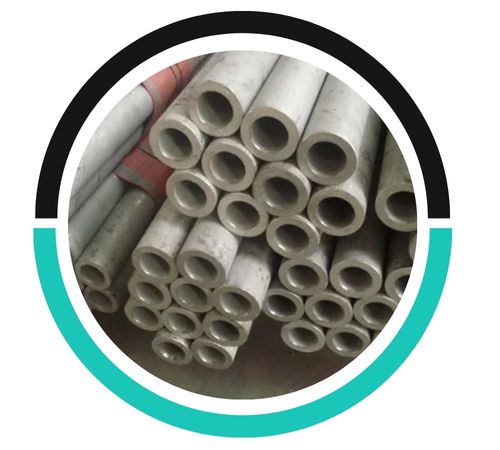

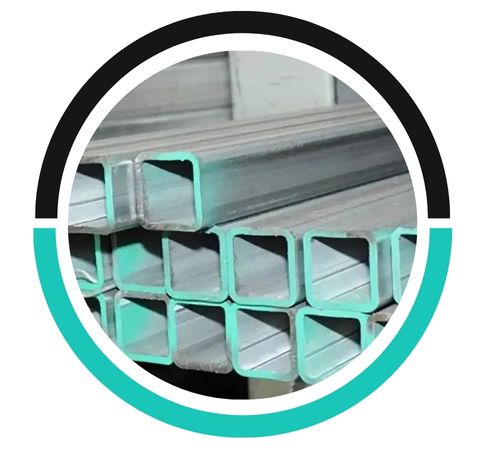

Aiman Metals, established in Kuala Lumpur, Malaysia, is a prominent producer and supplier of high-quality stainless steel products. Of our varied range, Stainless Steel 317L Hollow Bars are in great demand for their high performance in critical applications like pharma and food processing. Renowned for higher corrosion resistance, high weldability, and outstanding durability, these hollow bars offer superior performance in construction, marine, and chemical processing applications. Built to resist pitting, crevice corrosion, and elevated temperatures, SS 317L Hollow Bars provide long-term reliability. At Aiman Metals, we merge leading-edge manufacturing techniques with rigorous quality control to satisfy the most demanding operational conditions.
SS 317L Hollow Bars consist of 18–20% chromium, 12–15% nickel, 3–4% molybdenum, and up to a 0.03% carbon content to avoid carbide precipitation. This molybdenum–rich, low–carbon composition provides unparalleled chloride, sulfuric acid, and other corrosive chemical resistance. Mechanically, they provide around 570–700 MPa of tensile strength, yield strength of around 240 MPa, and elongation of 40–50%. Such properties, coupled with great weldability, high pitting resistance, and better performance under higher temperatures, make SS 317L Hollow Bars perfect for application in severe, corrosive, and high-temperature environments in a variety of pivotal industries.
Standard ASTM A276, A479 / ASME SA276, SA479
Range 3.17 MM TO 350 MM DIA
Diameter 25mm to 152mm
Size Tolerance h8, h9(DIN 671), h10, h11, ASTM A484, DIN 1013

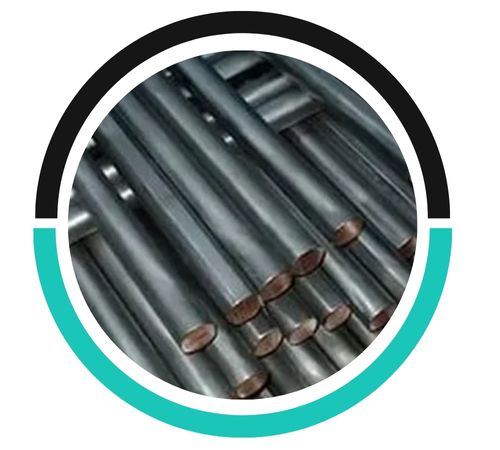

Finish Bright, Polish & Black

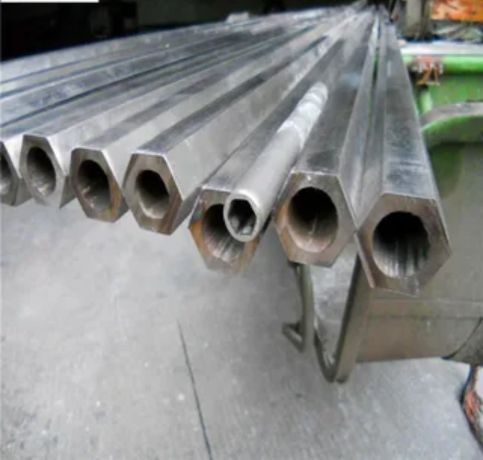

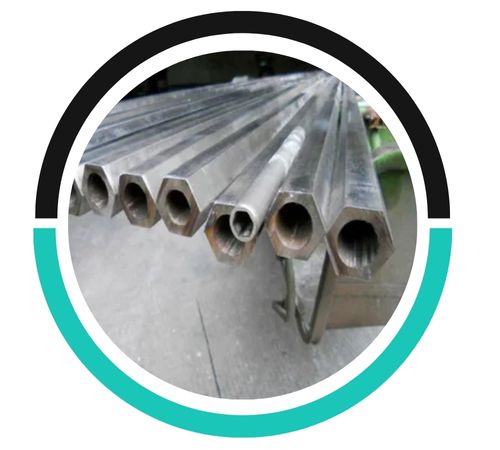

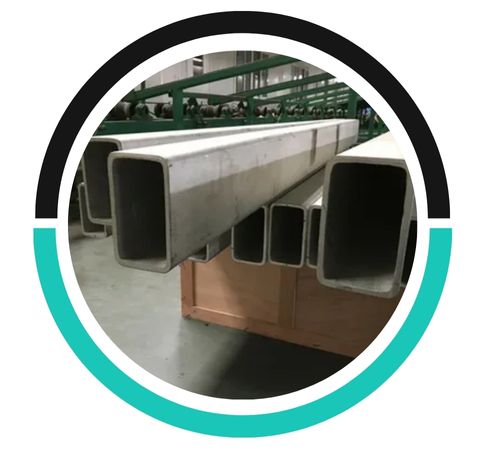

Form Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wiremesh, Billet, Ingot, Forging Etc.,
Condition Cold Drawn & Polished Cold Drawn, Centreless Ground & Polished
Other Services Machining (CNC), Centreless Grinding (CG), Heat Treatment, Anneling, Pickling, Polish, Rolling, Forging, Cutting, Bending, Minor Fabrication
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317L | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
The low carbon content of SS 317L reduces the risk of carbide precipitation at high temperatures, preventing grain boundary corrosion. This enhances its stability, weldability, and overall performance, making it more reliable in high-temperature environments, especially in corrosive conditions.
SS 317L Hollow Bars offer excellent corrosion resistance, particularly against chlorides and acidic environments, making them ideal for marine and chemical processing industries. Their high strength, durability, and resistance to pitting and crevice corrosion ensure long-lasting performance in harsh conditions.
SS 317L Hollow Bars are widely utilized where greater corrosion resistance and strength are required. They find application in pharmaceutical and food processing to use as equipment for hygienic purposes, heat exchangers, reactors, and storage tanks dealing with corrosive material. In marine industries, their corrosion resistance against seawater makes them suitable for ship construction and offshore applications. Chemical processing plants utilize them as piping systems, condensers, and vessels exposed to chlorides and acids. They also find application in construction for structural parts exposed to harsh environments. Thanks to their superior weldability, pitting resistance, and high-heat resistance, SS 317L Hollow Bars provide long-term performance in aggressive applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Aiman Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Kuala lumpur, Malaysia
