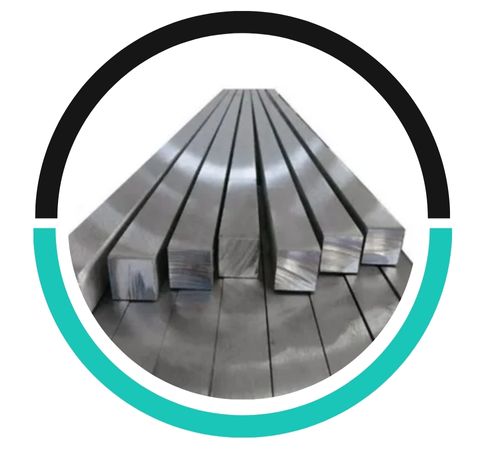

Aiman Metals, a Kuala Lumpur-based Malaysia company, is a well-known maker and supplier of high-grade Stainless Steel 317L square bars and rods. Known for providing precision-engineered products, the company supplies chemical processing, pulp and paper, marine, and pharmaceutical industries. Aiman Metals makes sure that every Stainless Steel 317L bar and rod is according to international standards, providing excellent corrosion resistance and mechanical strength. With great emphasis on quality, timely delivery, and customer satisfaction, Aiman Metals has emerged as a reliable supplier of high-performance, durable stainless steel material to both domestic and international markets.
Aiman Metals Stainless Steel 317L square bars and rods consist of iron, 18–20% chromium, 11–15% nickel, 3–4% molybdenum, and a maximum of 0.03% carbon. The increased molybdenum improves resistance to pitting, crevice corrosion, and chemical attack in acid conditions. These bars possess very good mechanical properties with a tensile strength of around 515 MPa and yield strength of around 205 MPa along with satisfactory elongation and resistance to impact. The weldability is enhanced and intergranular corrosion risk decreased by the low carbon content. Stainless Steel 317L provides the optimum combination of formability, corrosion resistance, and strength for severe applications.
Stainless Steel 317L Square Bars Specification :
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 317 | 0.03 max. | 18.0 – 20.0 | 2.00 max. | 11.0 – 15.0 | 0.045 max. | 0.03 max. | 0.75 max. |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi ” 75000, MPa ” 515 | Psi ” 30000, MPa ” 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 317 | 1.4438 | S31703 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Yes, Stainless Steel 317L square bars and rods can be recycled after use. They retain their properties and can be repurposed for new applications, making them highly sustainable.
To ensure the quality of Stainless Steel 317L square rods, source them from reputable suppliers and conduct material tests such as chemical composition and mechanical properties. Additionally, check for compliance with relevant industry standards and certifications.
Yes, Stainless Steel 317L square bars can be used for underground applications due to their excellent corrosion resistance, particularly in environments with high moisture or chloride exposure. Their durability ensures long-lasting performance in such conditions.
Stainless Steel 317L square bars and rods find extensive application in high corrosion-resistant industries, especially in severe chemical and marine environments. They are widely used in the fabrication of tanks, piping systems, and heat exchangers for petrochemical and chemical plants. In the pulp and paper mills, 317L is employed in bleach washers and digesters because of its resistance to sulfur compounds. These bars are also appropriate for naval equipment, food processing machines, and pharmaceutical production equipment. They feature a great resistance to chlorides and acidic media and are therefore suitable for critical structural and mechanical parts under severe conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
