Aiman Metals is a reputable manufacturer and supplier of top-notch stainless steel products located in Kuala Lumpur, Malaysia. One of their standout offerings is the Stainless Steel 321 Hollow Bar, which excels in high-temperature and corrosive settings. This titanium-stabilized austenitic stainless steel boasts remarkable resistance to intergranular corrosion, particularly after welding. Aiman Metals produces these hollow bars to comply with international standards, ensuring they have exceptional dimensional accuracy, mechanical strength, and corrosion resistance. Catering to industries like chemical processing, aerospace, and thermal systems, Aiman Metals provides dependable and tailored solutions for clients throughout Malaysia and beyond.

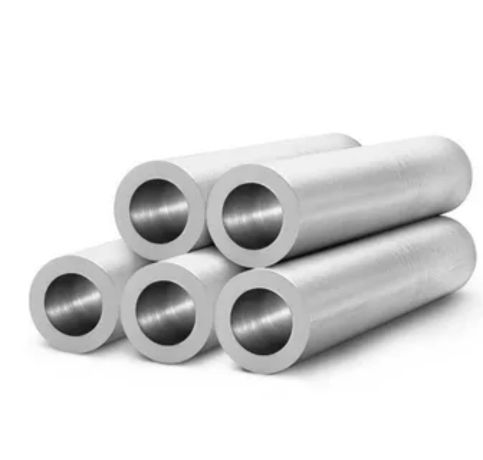

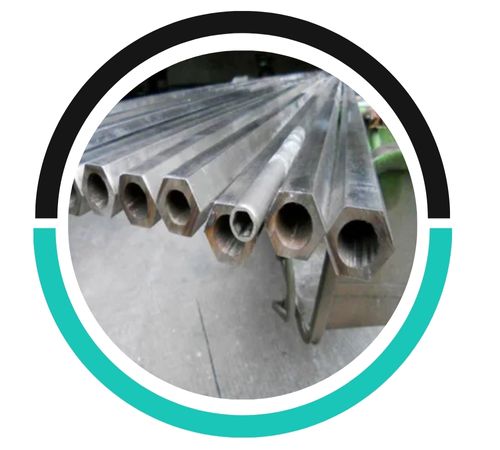

Stainless Steel 321 Hollow Bar is an austenitic stainless steel alloy that’s stabilized with titanium, effectively preventing carbide precipitation during welding. It generally contains 17–19% Chromium, 9–12% Nickel, and Titanium in quantities at least five times that of the carbon content, which has a maximum of 0.08%. This alloy is known for its excellent resistance to oxidation and intergranular corrosion at temperatures reaching up to 870°C. Its mechanical properties include a tensile strength of about 515 MPa, yield strength of 205 MPa, and a 40% elongation over 50 mm. The hollow design offers strength while keeping the weight down, making it perfect for structural and fluid-handling applications.
| Standard | ASTM A276 / A479, ASME SA276 / A479 |
| Round Bar Size | 3mm~ 800mm |
| Square Bar Size | 4mm* 4mm ~100mm* 100mm |
| Flat Bar Size | 2mm ~ 100mm |
| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 5(C+N) – 0.70 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| Denstiy lbm/in3 | Coefficient of Thermal Expansion (min/in)-°F | Thermal Conductivity BTU/hr-ft-°F | Specific Heat BTU/lbm -°F | Modules of Elasticity (annealed)2-psi | |
|---|---|---|---|---|---|
| at 68 °F | at 68 – 212°F | at 68 – 1832°F | at 200°F | at 32 – 212°F | in tension (E) |
| 0.286 | 9.2 | 20.5 | 9.3 | 0.12 | 28 x 106 |
Stainless Steel 321 Hollow Bars find extensive use in environments that demand high temperatures, pressure, and resistance to corrosion. They are primarily utilized in heat exchangers, superheaters, furnace components, exhaust manifolds, and fluid transmission systems within chemical and petrochemical facilities. Thanks to the titanium stabilization, they are particularly suited for welded assemblies, effectively preventing intergranular corrosion during and after the welding process. Their hollow structure not only provides strength but also reduces overall weight, making them ideal for various applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
