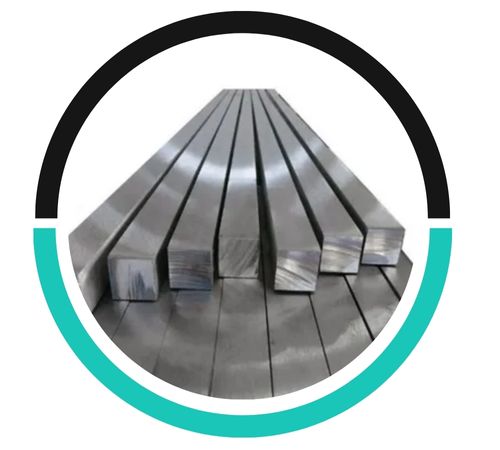

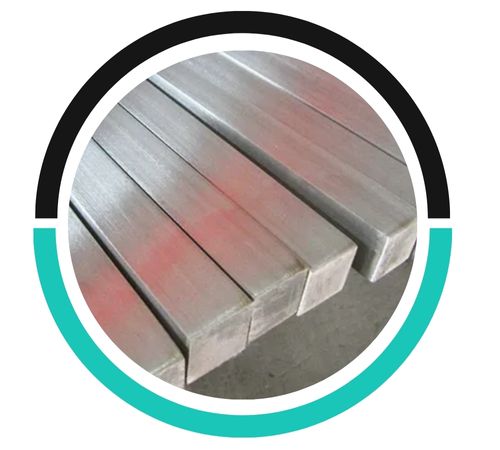

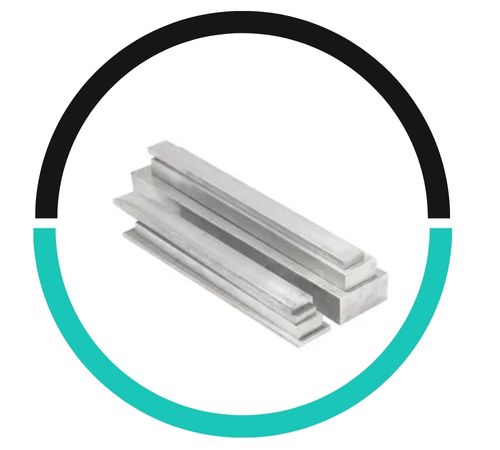

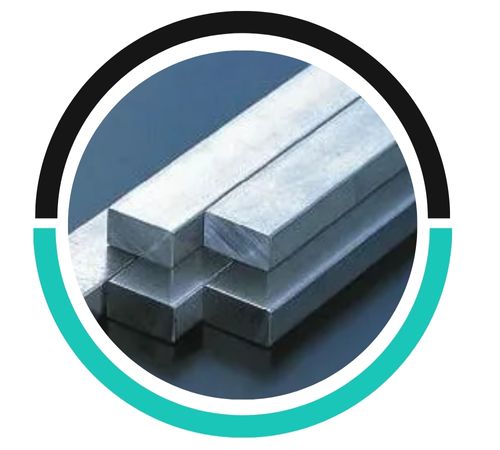

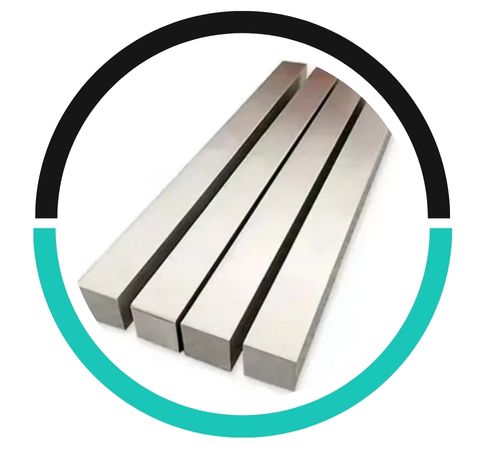

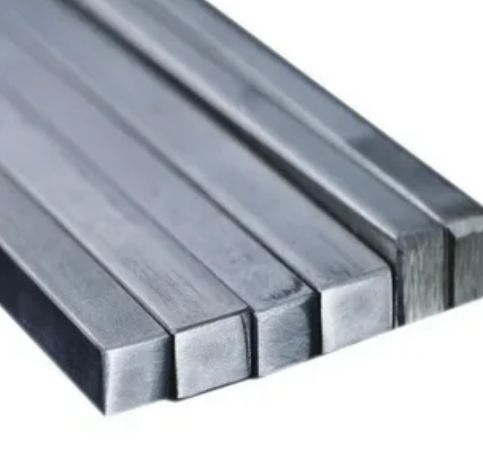

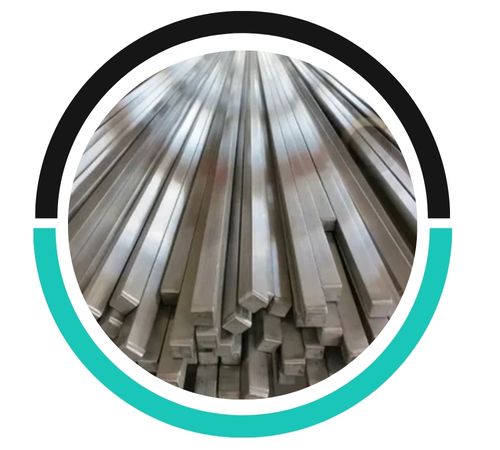

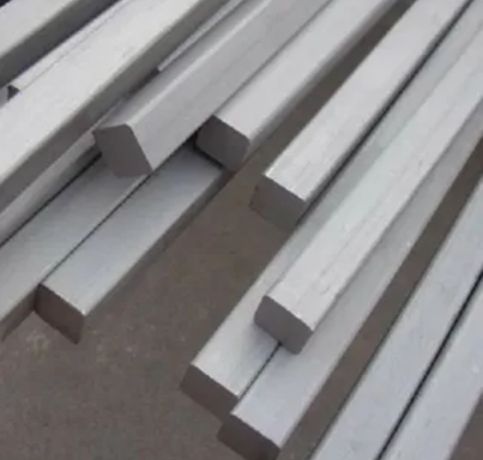

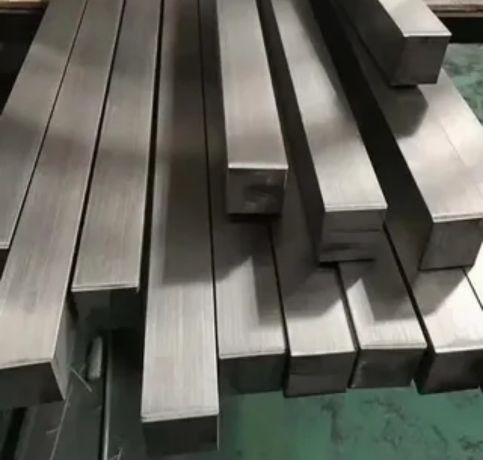

Aiman Metals stands out as a top-notch manufacturer and supplier of high-quality stainless steel products, proudly based in Kuala Lumpur, Malaysia. Among their impressive range, you’ll find Stainless Steel 321 Square Bars and Rods, designed to excel in high-temperature and corrosive settings. This titanium-stabilized austenitic stainless steel is known for its remarkable resistance to intergranular corrosion, particularly after welding. Aiman Metals is committed to ensuring that every product adheres to international quality standards, delivering clients durable, precise, and trustworthy materials. Catering to sectors like aerospace, petrochemical, thermal processing, and food manufacturing, Aiman Metals has become a reliable partner for stainless steel solutions throughout Malaysia and beyond.
Stainless Steel 321 Square Bars and Rods are made up of 17–19% Chromium, 9–12% Nickel, and are stabilized with Titanium, typically in amounts at least five times the carbon content. The carbon content is kept to a maximum of 0.08% to minimize carbide precipitation. This alloy boasts excellent oxidation resistance and thermal stability at temperatures reaching up to 870°C (1600°F). Its mechanical properties include a tensile strength of around 515 MPa, yield strength of 205 MPa, and an elongation of 40%. These characteristics make SS 321 perfect for applications that require prolonged exposure to heat and stress without compromising strength.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 321 | 0.08 max. | 17.0 – 19.0 | 2.00 max. | 9.0-12.0 | 0.045 max. | 0.03 max. | 0.75 max. |
| Grade | Tensile Str (MPa) min | Yield Str 0.2% Proof (MPa) min | Elong (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 321 | 515 | 205 | 40 | 95 | 217 |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 321 | 1.4541 | S32100 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 321 Square Bars and Rods find their place in various applications where both strength and resistance to high-temperature oxidation are crucial. You’ll often see them in exhaust systems, expansion joints, furnace components, thermal oxidizers, and heat exchanger parts. Thanks to their titanium-stabilized makeup, they are particularly well-suited for welded structures, significantly lowering the risk of intergranular corrosion. In industries like aerospace, chemical processing, and power generation, SS 321 square bars are essential for supporting frameworks and components that need to withstand demanding conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
