Aiman Metals is a reputable manufacturer and supplier of top-notch stainless steel products, proudly based in Kuala Lumpur, Malaysia. They specialize in Stainless Steel 347 Hex Bars and have built a solid reputation for their dedication to excellence, precision engineering, and ensuring customer satisfaction. With years of experience in the metal industry, Aiman Metals delivers corrosion-resistant and high-strength bars that are perfect for demanding industrial applications. Their Stainless Steel 347 Hex Bars are crafted from premium-grade materials, meeting international standards to guarantee durability and performance. Aiman Metals caters to a diverse range of industries, providing reliable solutions throughout Malaysia and beyond.

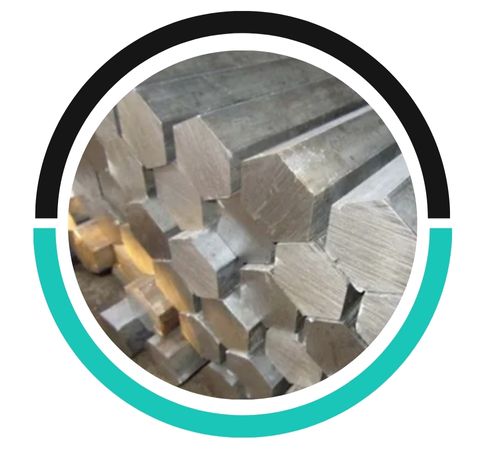

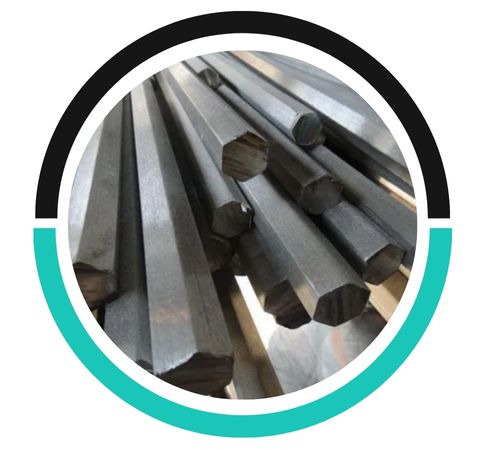

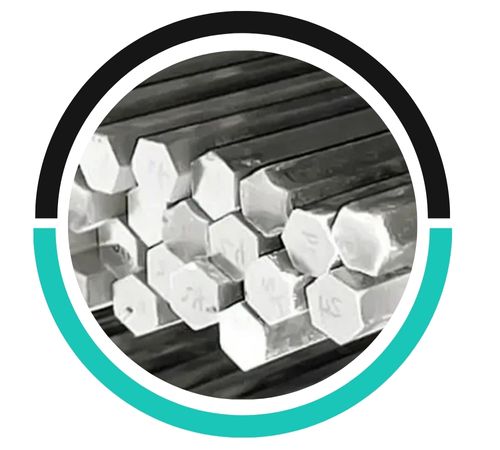

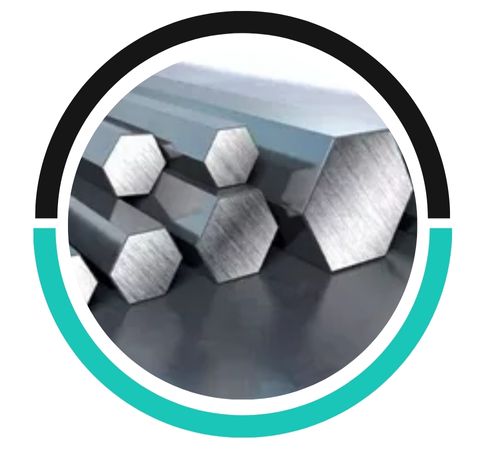

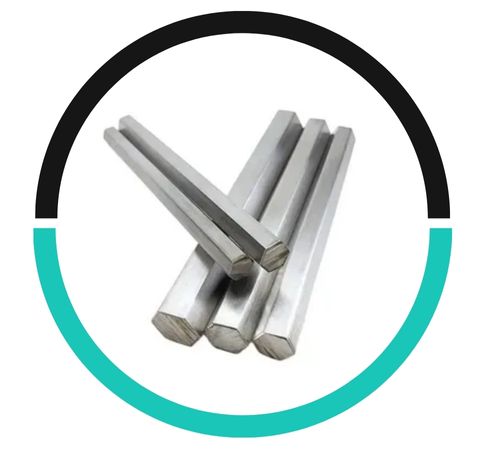

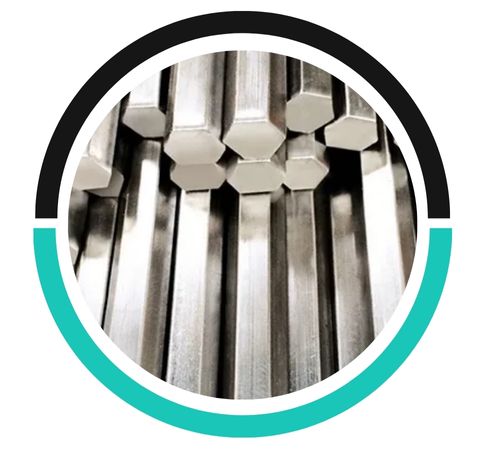

Stainless Steel 347 Hex Bar is an austenitic stainless steel alloy that’s stabilized with columbium (niobium), giving it remarkable resistance to intergranular corrosion. The typical chemical makeup consists of 17–19% Chromium, 9–13% Nickel, along with trace amounts of Columbium and Tantalum. In terms of mechanical properties, it boasts a tensile strength of about 515 MPa, a yield strength of 205 MPa, and an elongation of 40% over 50 mm. It maintains its strength even at high temperatures and offers good creep resistance. These characteristics make SS 347 an excellent choice for applications that involve high heat and corrosive environments.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 347 | 0.08 max. | 17.0 – 19.0 | 2.00 max. | 9.0-13.0 | 0.045 max. | 0.03 max. | 0.75 max |
| Element | Density | Melting Range,℃ | Tensile Strength | Yield Strength | Elongation | Hardness (Brinell) |
| SS 347 | 7.96 | 1450 ℃ | 515 | 205 | 40 | 201 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 347 Hex Bar finds its place in various industries that require high-temperature strength and corrosion resistance. You’ll often see it in heat exchangers, chemical processing equipment, aircraft exhaust manifolds, boiler casings, and furnace parts. Thanks to its impressive mechanical properties and resistance to intergranular corrosion, it’s also a great fit for the food processing, oil and gas, and petrochemical sectors. The hexagonal shape not only adds strength but also makes machining easier, making it perfect for structural and mechanical applications. Aiman Metals’ SS 347 Hex Bars deliver dependable performance even in extreme conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Aiman Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Kuala lumpur, Malaysia
