Aiman Metals stands out as a leading manufacturer and supplier of top-notch stainless steel products, proudly based in Kuala Lumpur, Malaysia. One of their standout offerings is the Stainless Steel 347H Hollow Bar, crafted to excel in high-performance settings, even in extreme conditions. Renowned for its impressive high-temperature strength and remarkable corrosion resistance, SS 347H is perfect for tough industrial tasks. Aiman Metals ensures that their precision-engineered hollow bars meet international standards, guaranteeing reliability and durability. With a strong focus on quality, innovation, and customer satisfaction, Aiman Metals caters to various industries, including petrochemical, power generation, and thermal processing, both in Malaysia and beyond.

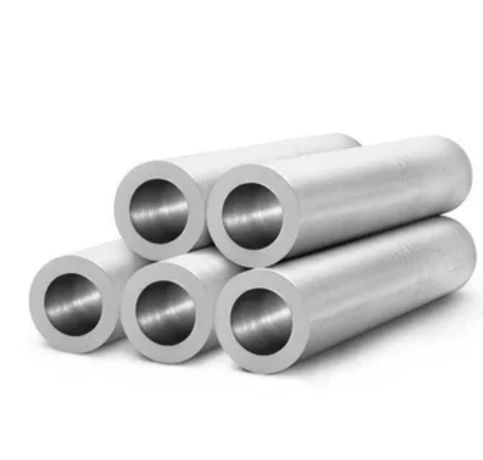

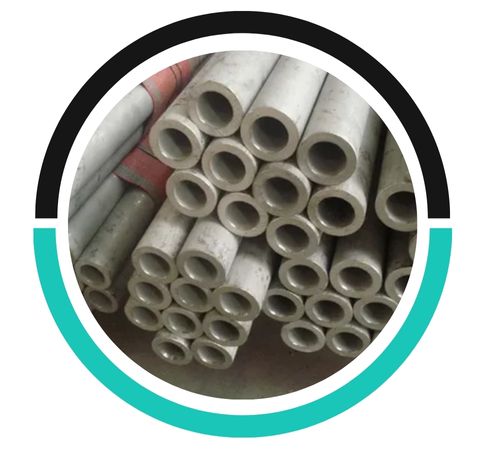

Stainless Steel 347H Hollow Bar is an austenitic stainless steel that’s stabilized with niobium (columbium) and specifically designed for high-temperature applications. It generally contains 17–19% Chromium, 9–13% Nickel, and a higher carbon content (0.04–0.10%) compared to standard 347, enhancing its creep resistance. The alloy also incorporates up to 1% niobium to prevent carbide precipitation. SS 347H boasts a tensile strength of around 515 MPa, a yield strength of 205 MPa, and an elongation of 40%. It retains excellent mechanical strength at elevated temperatures and offers good resistance to oxidation and intergranular corrosion, even after welding or extended heat exposure.
| Standard | ASTM A276 / A479, ASME SA276 / A479 |
| Round Bar Size | 3mm~ 800mm |
| Square Bar Size | 4mm* 4mm ~100mm* 100mm |
| Flat Bar Size | 2mm ~ 100mm |
| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| Grade | C | Mn | Si | P | S | Cr | Co + Ta | Ni | Fe |
| SS 347H | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.03 max | 17 – 20 | 10xC min 1.00 max | 9 – 13 | 62.74 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1454 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 347h | 1.4550 | S34700 | SUS 347 | – | 08Ch18N12B | – | X6CrNiNb18-10 |
| Stainless Steel 347h Hollow Bar Size | Chucked true to OD | Chucked true to ID | |||||||
| OD, mm | ID, mm | Max. OD, mm | Min. ID, mm | Max. OD, in. | Min. ID, in. | Max. OD, mm | Min. ID, mm | Max. OD, in. | Min. ID, in. |
| 32 | 20 | 31 | 21.9 | 1.220 | 0.862 | 30 | 21 | 1.185 | 0.827 |
| 32 | 16 | 31 | 18 | 1.220 | 0.709 | 30 | 17 | 1.181 | 0.669 |
| 36 | 25 | 35 | 26.9 | 1.378 | 1.059 | 34.1 | 26 | 1.343 | 1.024 |
| 36 | 20 | 35 | 22 | 1.378 | 0.866 | 34 | 21 | 1.339 | 0.827 |
| 36 | 16 | 35 | 18.1 | 1.378 | 0.713 | 33.9 | 17 | 1.335 | 0.669 |
| 40 | 28 | 39 | 29.9 | 1.535 | 1.177 | 38.1 | 29 | 1.500 | 1.142 |
| 40 | 25 | 39 | 27 | 1.535 | 1.063 | 38 | 26 | 1.496 | 1.024 |
| 40 | 20 | 39 | 22.1 | 1.535 | 0.870 | 37.9 | 21 | 1.492 | 0.827 |
| 45 | 32 | 44 | 33.9 | 1.732 | 1.335 | 43.1 | 33 | 1.697 | 1.299 |
| 45 | 28 | 44 | 30 | 1.732 | 1.181 | 43 | 29 | 1.693 | 1.142 |
| 45 | 20 | 44 | 22.2 | 1.732 | 0.874 | 42.8 | 21 | 1.685 | 0.827 |
| 50 | 36 | 49 | 38 | 1.929 | 1.496 | 48 | 37 | 1.890 | 1.457 |
| 50 | 32 | 49 | 34.1 | 1.929 | 1.343 | 47.9 | 33 | 1.886 | 1.299 |
| 50 | 25 | 49 | 27.2 | 1.929 | 1.071 | 47.8 | 26 | 1.882 | 1.024 |
| 56 | 40 | 55 | 42 | 2.165 | 1.654 | 54 | 41 | 2.126 | 1.614 |
| 56 | 36 | 55 | 38.1 | 2.165 | 1.500 | 53.9 | 37 | 2.122 | 1.457 |
| 56 | 28 | 55 | 30.3 | 2.165 | 1.193 | 53.7 | 29 | 2.114 | 1.142 |
| 63 | 50 | 62 | 51.9 | 2.441 | 2.043 | 61.1 | 51 | 2.406 | 2.008 |
| 63 | 45 | 62 | 47 | 2.441 | 1.850 | 61 | 46 | 2.402 | 1.811 |
| 63 | 40 | 62 | 42.2 | 2.441 | 1.661 | 60.8 | 41 | 2.394 | 1.614 |
| 63 | 36 | 62 | 38.3 | 2.441 | 1.508 | 60.7 | 37 | 2.390 | 1.457 |
| 63 | 32 | 62 | 34.4 | 2.441 | 1.354 | 60.6 | 33 | 2.386 | 1.299 |
| 71 | 56 | 69.9 | 58 | 2.752 | 2.283 | 68.9 | 57 | 2.713 | 2.244 |
| 71 | 45 | 69.9 | 47.3 | 2.752 | 1.862 | 68.6 | 46 | 2.701 | 1.811 |
| 71 | 40 | 69.9 | 42.4 | 2.752 | 1.669 | 68.5 | 41 | 2.697 | 1.614 |
| 71 | 36 | 69.9 | 38.5 | 2.752 | 1.516 | 68.4 | 37 | 2.693 | 1.457 |
| 75 | 60 | 73.8 | 62 | 2.906 | 2.441 | 72.8 | 61 | 2.866 | 2.402 |
| 75 | 50 | 73.8 | 52.2 | 2.906 | 2.055 | 72.6 | 51 | 2.858 | 2.008 |
| 75 | 40 | 73.8 | 42.5 | 2.906 | 1.673 | 72.3 | 41 | 2.846 | 1.614 |
| 80 | 63 | 78.8 | 65 | 3.102 | 2.559 | 77.8 | 64 | 3.063 | 2.520 |
| 80 | 50 | 78.8 | 52.4 | 3.102 | 2.053 | 77.4 | 51 | 3.047 | 2.008 |
| 80 | 45 | 78.8 | 47.5 | 3.102 | 1.870 | 77.3 | 46 | 3.043 | 1.811 |
| 80 | 40 | 78.8 | 42.6 | 3.102 | 1.677 | 77.2 | 41 | 3.039 | 1.614 |
| 85 | 67 | 83.7 | 69.1 | 3.295 | 2.720 | 82.6 | 68 | 3.252 | 2.677 |
| 85 | 55 | 83.7 | 57.4 | 3.295 | 2.260 | 82.3 | 56.0 | 3.240 | 2.205 |
| 85 | 45 | 83.7 | 47.6 | 3.295 | 1.874 | 82.1 | 46.0 | 3.232 | 1.811 |
| 90 | 71 | 88.6 | 73.1 | 3.488 | 2.878 | 87.6 | 72.1 | 3.449 | 2.839 |
| 90 | 63 | 88.6 | 65.3 | 3.488 | 2.571 | 87.3 | 64.0 | 3.437 | 2.520 |
| 90 | 56 | 88.6 | 58.5 | 3.488 | 2.303 | 87.1 | 57.0 | 3.429 | 2.244 |
| 90 | 50 | 88.6 | 52.6 | 3.488 | 2.071 | 87.0 | 51.0 | 3.425 | 2.008 |
| 95 | 75 | 93.5 | 77.3 | 3.681 | 3.041 | 92.4 | 76.2 | 3.641 | 2.997 |
| 95 | 67 | 93.5 | 69.3 | 3.681 | 2.728 | 92.2 | 68.0 | 3.630 | 2.677 |
| 95 | 50 | 93.5 | 52.7 | 3.681 | 2.075 | 91.8 | 51.0 | 3.614 | 2.008 |
| 100 | 80 | 98.5 | 82.3 | 3.878 | 3.240 | 97.4 | 81.2 | 3.835 | 3.197 |
| 100 | 71 | 98.5 | 73.4 | 3.878 | 2.890 | 97.2 | 72.1 | 3.827 | 2.839 |
| 100 | 63 | 98.5 | 65.5 | 3.878 | 2.579 | 97.0 | 64.0 | 3.819 | 2.520 |
| 100 | 56 | 98.5 | 58.7 | 3.878 | 2.311 | 96.8 | 57.0 | 3.811 | 2.244 |
| 106 | 80 | 104.4 | 82.5 | 4.110 | 3.248 | 103.1 | 81.2 | 4.059 | 3.197 |
| 106 | 71 | 104.4 | 73.5 | 4.110 | 2.894 | 103.0 | 72.1 | 4.055 | 2.839 |
| 106 | 63 | 104.4 | 65.7 | 4.110 | 2.587 | 102.7 | 64.0 | 4.043 | 2.520 |
| 106 | 56 | 104.4 | 58.9 | 4.110 | 2.319 | 102.5 | 57.0 | 4.035 | 2.244 |
| 112 | 90 | 110.3 | 92.5 | 4.343 | 3.642 | 109.2 | 91.4 | 4.299 | 3.598 |
| 112 | 80 | 110.3 | 82.6 | 4.343 | 3.252 | 108.9 | 81.2 | 4.287 | 3.197 |
| 112 | 71 | 110.3 | 73.7 | 4.343 | 2.902 | 108.7 | 72.1 | 4.280 | 2.839 |
| 112 | 63 | 110.3 | 65.8 | 4.343 | 2.591 | 108.5 | 64.0 | 4.272 | 2.520 |
| 118 | 90 | 116.2 | 92.7 | 4.575 | 3.650 | 114.9 | 91.4 | 4.524 | 3.598 |
| 118 | 80 | 116.2 | 82.8 | 4.575 | 3.260 | 114.6 | 81.2 | 4.512 | 3.197 |
| 118 | 71 | 116.2 | 73.8 | 4.575 | 2.906 | 114.5 | 72.1 | 4.508 | 2.839 |
| 118 | 63 | 116.2 | 66.0 | 4.575 | 2.598 | 114.2 | 64.0 | 4.496 | 2.520 |
| 125 | 100 | 123.1 | 102.7 | 4.846 | 4.043 | 121.9 | 101.5 | 4.799 | 3.996 |
| 125 | 90 | 123.1 | 92.8 | 4.846 | 3.654 | 121.7 | 91.4 | 4.791 | 3.598 |
| 125 | 80 | 123.1 | 82.9 | 4.846 | 3.264 | 121.4 | 81.2 | 4.780 | 3.197 |
| 125 | 71 | 123.1 | 74.0 | 4.846 | 2.913 | 121.3 | 72.1 | 4.772 | 2.839 |
| 132 | 106 | 130.0 | 108.8 | 5.118 | 4.283 | 128.8 | 107.6 | 5.071 | 4.236 |
| 132 | 90 | 130.0 | 93.0 | 5.118 | 3.661 | 128.4 | 91.4 | 5.055 | 3.598 |
| 132 | 80 | 130.0 | 83.1 | 5.118 | 3.272 | 128.1 | 81.2 | 5.043 | 3.197 |
| 132 | 71 | 130.0 | 74.2 | 5.118 | 2.921 | 121.2 | 72.1 | 5.035 | 2.839 |
| 140 | 112 | 137.9 | 115 | 5.429 | 4.528 | 136.6 | 113.7 | 5.378 | 4.476 |
| 140 | 100 | 137.9 | 103.1 | 5.429 | 4.059 | 136.3 | 101.5 | 5.366 | 3.996 |
| 140 | 90 | 137.9 | 93.2 | 5.429 | 3.669 | 136.1 | 91.4 | 5.358 | 3.598 |
| 140 | 80 | 137.9 | 83.3 | 5.429 | 3.280 | 135.8 | 81.2 | 5.346 | 3.197 |
| 150 | 125 | 147.7 | 128.1 | 5.815 | 5.043 | 146.5 | 126.9 | 5.768 | 4.996 |
| 150 | 106 | 147.7 | 109.3 | 5.815 | 4.303 | 146 | 107.6 | 5.748 | 4.236 |
| 150 | 95 | 147.7 | 98.4 | 5.815 | 3.874 | 145.7 | 96.4 | 5.736 | 3.795 |
| 150 | 80 | 147.7 | 83.6 | 5.815 | 3.291 | 145.3 | 81.2 | 5.720 | 3.197 |
| 160 | 132 | 157.6 | 135.3 | 6.205 | 5.327 | 156.3 | 134 | 6.154 | 5.276 |
| 160 | 122 | 157.6 | 125.4 | 6.205 | 4.937 | 156 | 123.8 | 6.142 | 4.874 |
| 160 | 112 | 157.6 | 115.5 | 6.205 | 4.547 | 155.8 | 113.7 | 6.134 | 4.476 |
| 160 | 90 | 157.6 | 94.0 | 6.205 | 3.701 | 155.2 | 91.4 | 6.110 | 3.598 |
| 170 | 140 | 167.4 | 143.5 | 6.591 | 5.650 | 166 | 142.1 | 6.535 | 5.594 |
| 170 | 130 | 167.4 | 133.6 | 6.591 | 5.260 | 165.8 | 132 | 6.528 | 5.197 |
| 170 | 128 | 167.4 | 131.6 | 6.591 | 5.181 | 165.7 | 130 | 6.524 | 5.118 |
Stainless Steel 347H Hollow Bar finds extensive use in applications that demand high-temperature and high-pressure resilience. Its robust strength and structural integrity make it perfect for boilers, heat exchangers, superheater tubes, pressure vessels, and chemical processing equipment. The hollow design not only reduces material weight but also maintains mechanical strength, making it ideal for fluid transportation systems, structural support, and high-performance piping. The niobium stabilization ensures resistance to carbide precipitation, enhancing its durability in challenging environments
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
