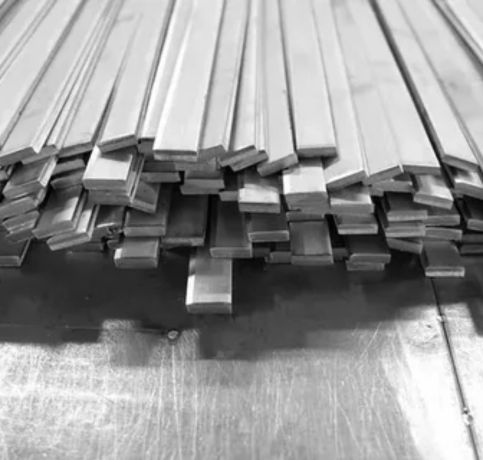

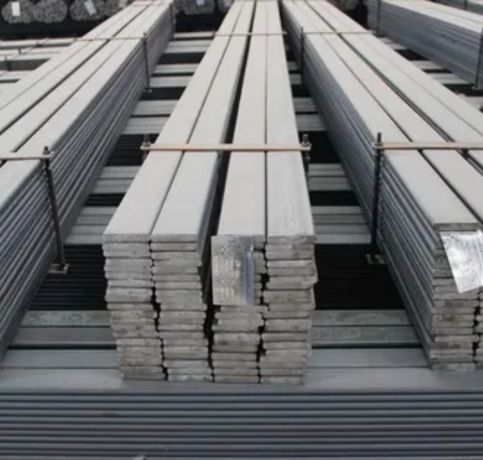

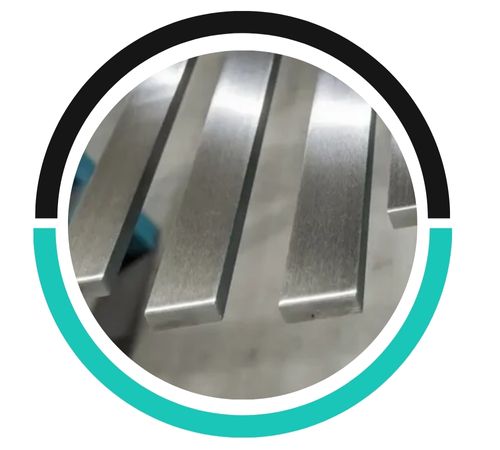

Aiman Metals stands out as a top-notch manufacturer and supplier located in Kuala Lumpur, Malaysia, with a focus on delivering high-quality stainless steel products. We take pride in our dedication to excellence and ensuring customer satisfaction, offering a diverse array of steel solutions, including our premium Stainless Steel 416 Flat Bar. Designed for durability and precision, these flat bars are popular across various industries thanks to their exceptional machinability and strength. At Aiman Metals, we guarantee timely delivery, competitive pricing, and strict adherence to international quality standards, making us a reliable partner for all your stainless steel needs in Malaysia and beyond
Stainless Steel 416 Flat Bar is a free-machining martensitic stainless steel, primarily made up of Chromium (12-14%), Carbon (0.15% max), Manganese (1.25% max), Sulfur (0.15% min), and Silicon (1.00% max). Its high sulfur content gives it excellent machinability. On the mechanical side, it boasts a tensile strength of 550-760 MPa, a yield strength of 275 MPa, and an elongation of 20%. With a Brinell hardness of 207, it’s perfect for applications that require moderate corrosion resistance and solid mechanical strength, especially when hardened and tempered.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M

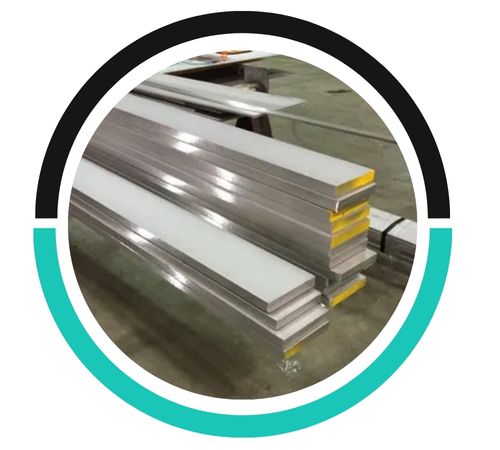

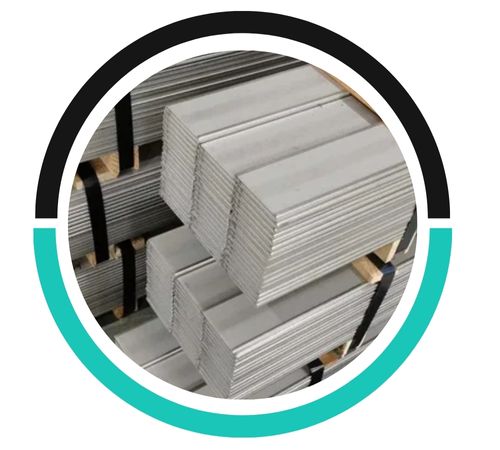

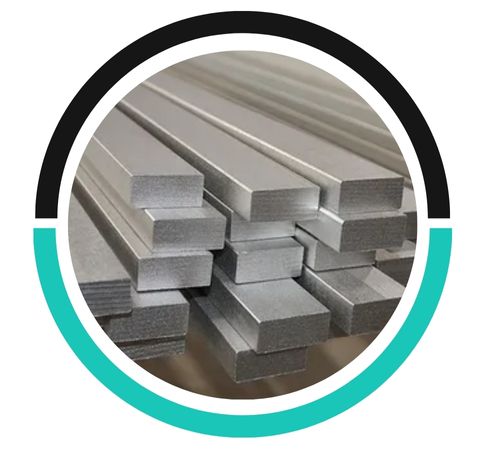

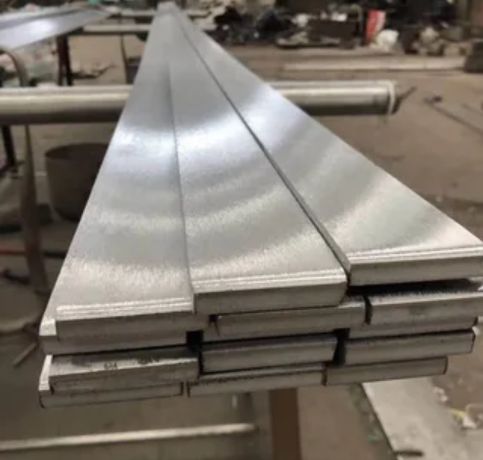

Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Range : Range – 3.17mm to 350mm dia
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 416 | 0.15 | 14.0 – 12.0 | 1.25 | – | 0.06 | 0.15 | 1 |
| Element | Density, lb/in3 | Melting Point | Electrical Resistivity |
| SS 416 | 0.282 lbs/in3 7 .80 g/cm3 | 2700 – 2790 °F (1488 – 1530 °C) | At 70 °F (21 °C): 343.0 |
| Flat Bar | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.49 | 1.60 |
| 18 | 0.62 | 2.02 |
| 20 | 0.76 | 2.49 |
| 22 | 0.92 | 3.02 |
| 25 | 1.19 | 3.90 |
| 28 | 1.49 | 4.89 |
| 28 | 1.49 | 4.89 |
| 30 | 1.71 | 5.61 |
| 32 | 1.95 | 6.38 |
| 36 | 2.46 | 8.08 |
| 38 | 2.74 | 9.00 |
| 40 | 3.04 | 9.97 |
| 45 | 3.85 | 12.62 |
| 50 | 4.75 | 12.62 |
| 56 | 8.96 | 19.55 |
| 60 | 6.84 | 22.44 |
| 65 | 8.03 | 26.34 |
| 70 | 9.31 | 30.54 |
| 75 | 10.69 | 35.06 |
| 80 | 12.16 | 39.89 |
| 90 | 15.39 | 50.49 |
| 100 | 19 | 62.34 |

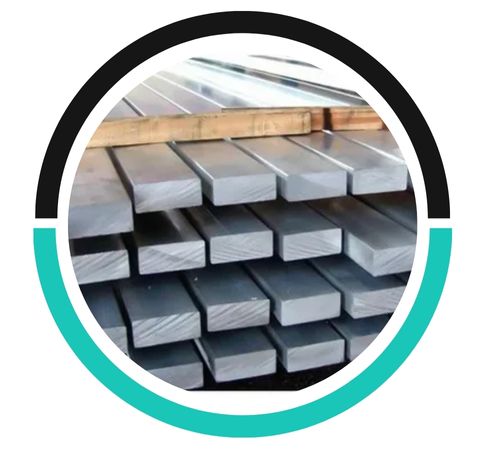

Stainless Steel 416 Flat Bar finds its place in industries that require high machinability and moderate corrosion resistance. You’ll often see it in automotive components, valves, pump shafts, gears, bolts, nuts, and precision parts. It’s especially prized in manufacturing settings where speed and precision are key. The material’s ability to be hardened also makes it suitable for cutlery, fasteners, and industrial equipment. In Malaysia, sectors like engineering, construction, marine, and transportation greatly benefit from its performance and cost-effectiveness. Its versatility truly makes the 416 flat bar a smart choice for both heavy-duty and general-purpose applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Aiman Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Kuala lumpur, Malaysia
