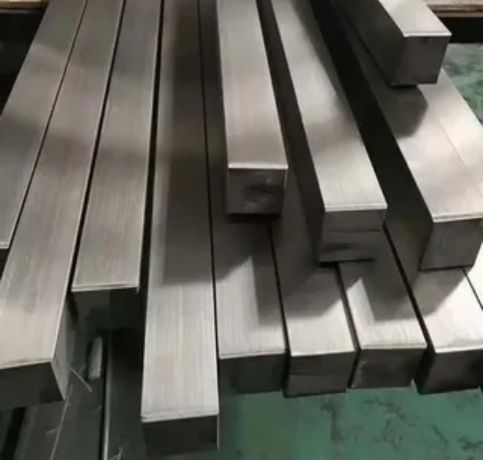

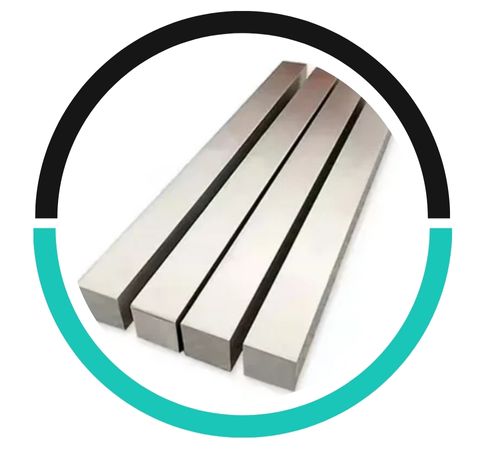

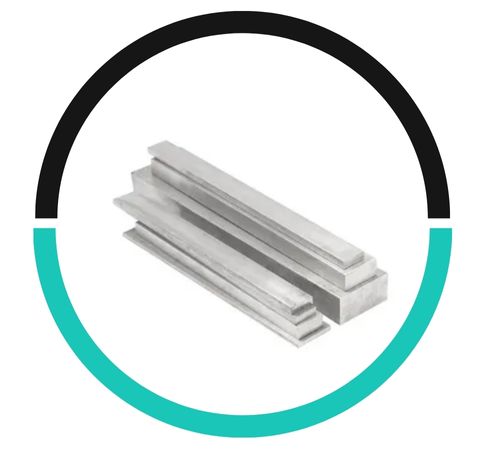

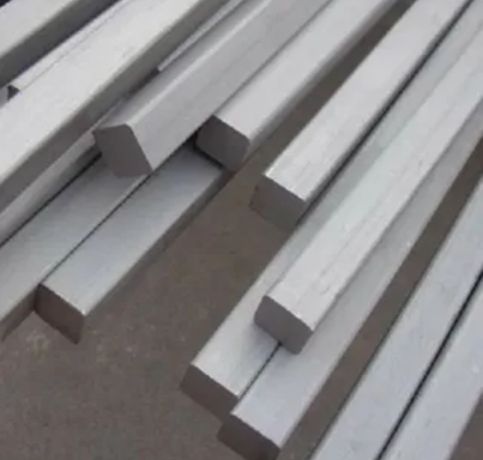

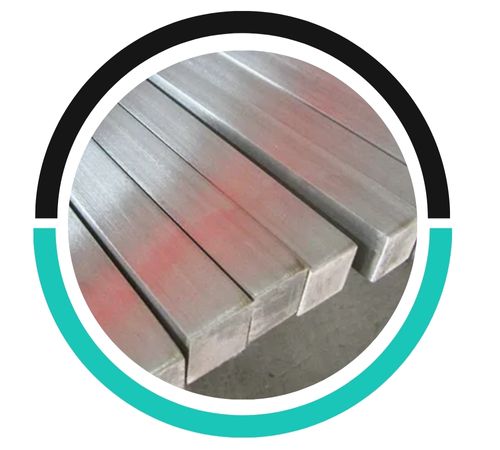

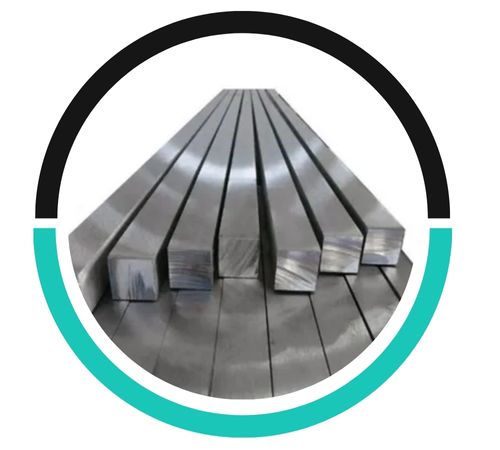

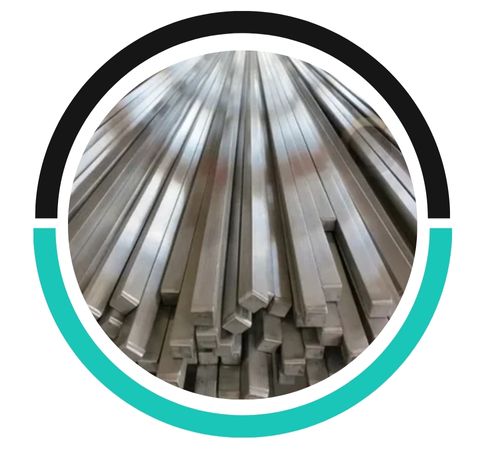

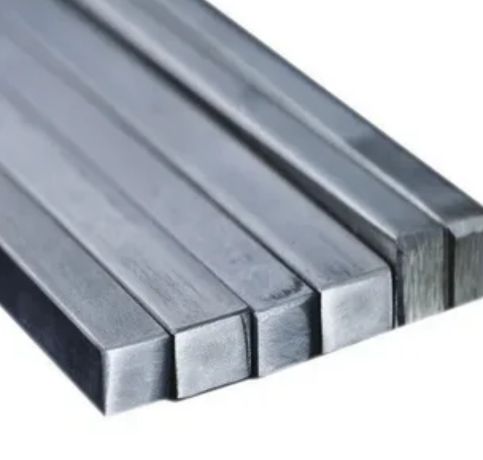

Aiman Metals, located in Kuala Lumpur, Malaysia, has made a name for itself as a top-notch manufacturer and supplier of premium stainless steel products, including Stainless Steel 420 Square Bars and Rods. With a keen emphasis on precision engineering, quality control, and dependable delivery, Aiman Metals caters to various sectors like tooling, manufacturing, automotive, and construction. Their SS 420 square bars and rods are crafted to meet stringent standards, providing outstanding hardness, strength, and polishability. Renowned for fulfilling both local and international standards, Aiman Metals is a reliable partner for clients in need of robust and high-performance stainless steel materials for challenging industrial and mechanical uses.
Stainless Steel 420 is a high-carbon martensitic stainless steel alloy that contains around 12–14% chromium and at least 0.15% carbon. It boasts good corrosion resistance, impressive hardness, and high tensile strength when heat-treated. Typical mechanical properties include tensile strength ranging from 700–1000 MPa, yield strength of about 500 MPa, and hardness levels reaching 50–55 HRC. SS 420 is magnetic and can achieve a bright polish. While it may not resist corrosion as well as austenitic grades, it excels in dry or mildly corrosive settings where strength and edge retention are crucial.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 420 | 0.15 | 14.0 | 1.00 | – | 0.04 | 0.03 | 1.00 |
| Element | Tensile Strength | Yield Strength | Elongation | Hardness |
| SS 420 | 95,000 | 50,000 | 25 | 175 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 420 | 1.4021 | S42000 | SUS 420 J1 | 420S29 | – | – | FeMi35Cr20Cu4Mo2 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 420 Square Bars and Rods find extensive use in applications that require high hardness, strength, and moderate corrosion resistance. These bars are perfect for crafting surgical instruments, cutlery, industrial blades, valve components, shafts, and machine parts where edge retention and wear resistance are vital. The square shape provides enhanced design flexibility for custom machining and fabrication projects. SS 420 is particularly popular in the tooling, manufacturing, automotive, and mechanical sectors, especially for components that experience high stress or need a fine finish. Its polishability and durability make it a go-to choice for many demanding applications
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Aiman Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Kuala lumpur, Malaysia
