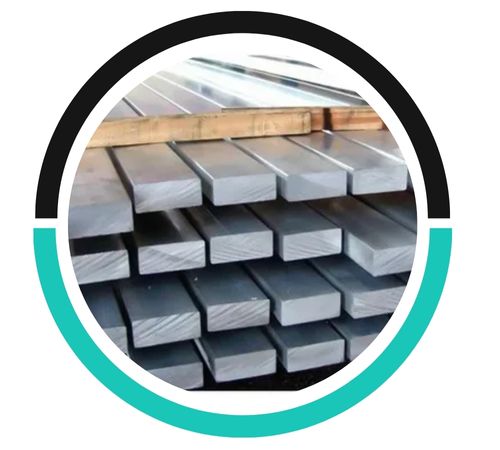

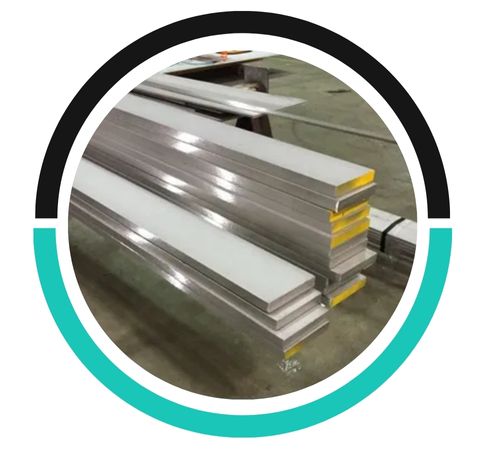

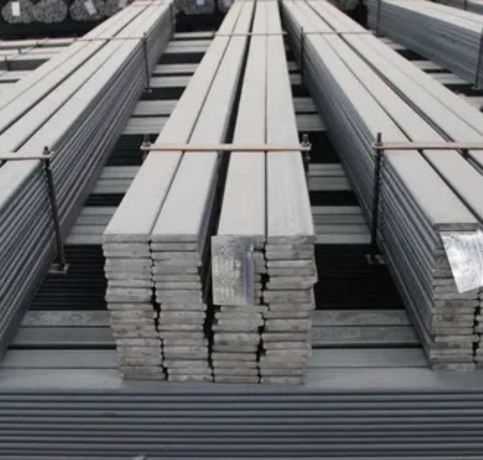

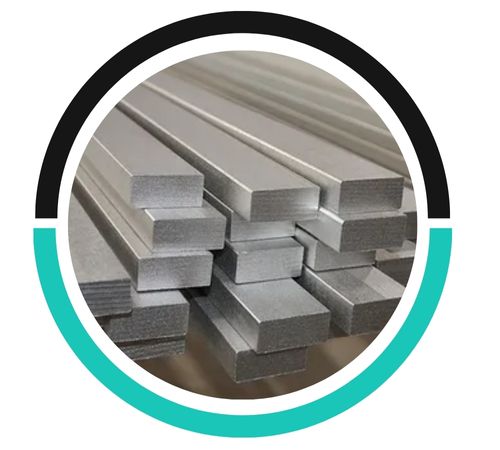

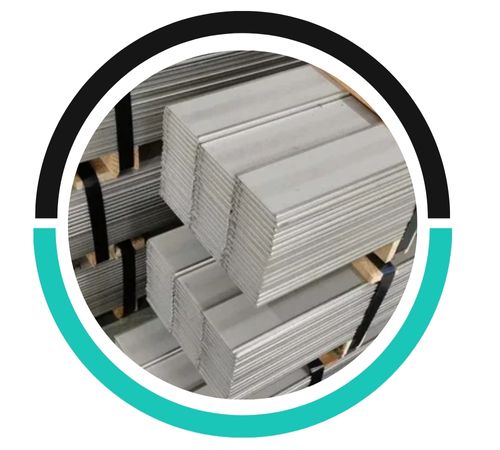

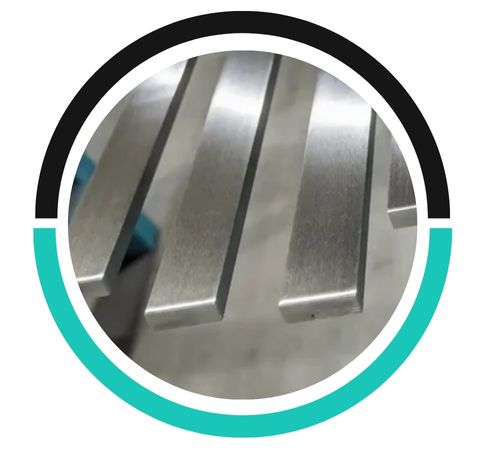

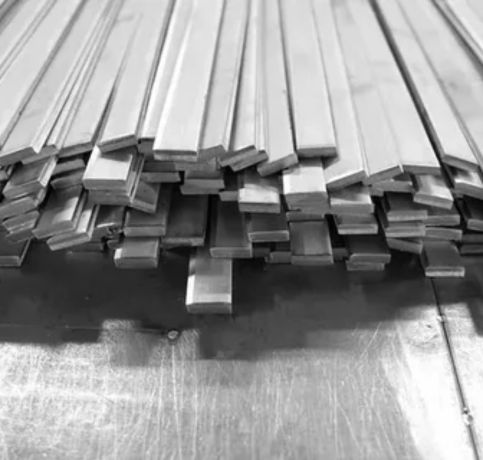

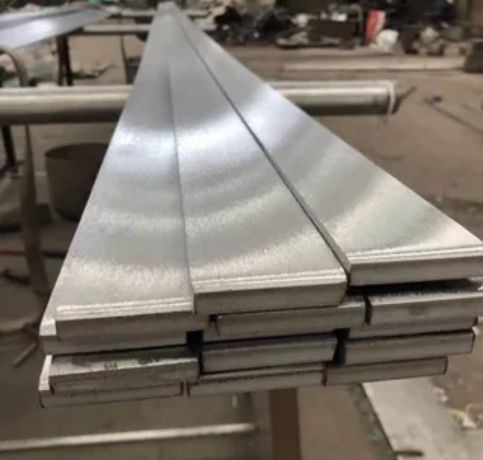

We take pride in being a reliable manufacturer and supplier of Stainless Steel 904L Flat Bars, providing top-notch products for industries that demand outstanding corrosion resistance and mechanical performance. This low-carbon, high-alloy austenitic stainless steel is rich in nickel, chromium, molybdenum, and copper, which gives it remarkable resistance to reducing acids and chloride-induced corrosion. Our flat bars are meticulously crafted to ensure a superior surface finish, strength, and precise dimensions. They stand up well in tough environments like chemical plants, marine engineering, and offshore structures. With excellent weldability, formability, and durability, 904L flat bars are a trusted choice for critical industrial applications.
Stainless Steel 904L Flat Bars generally consist of 19–23% chromium, 23–28% nickel, 4–5% molybdenum, 1–2% copper, and very low carbon content (<0.02%), with the remainder being iron. This alloy boasts a tensile strength ranging from 490–710 MPa, a yield strength of 220 MPa, an elongation of about 35%, and hardness levels between 70–90 HRB. It retains its toughness and non-magnetic properties even at lower temperatures, while offering exceptional resistance to pitting, crevice corrosion, and stress corrosion cracking. These traits make 904L flat bars perfect for environments exposed to strong acids, chlorides, and seawater.
| Standard | ASTM B649, ASME SB649 |
| Round Bar Size | 3mm~ 800mm |
| Square Bar Size | 4mm* 4mm ~100mm* 100mm |
| Flat Bar Size | 2mm ~ 100mm |
| Hex Bar Size | 2mm ~ 100mm |

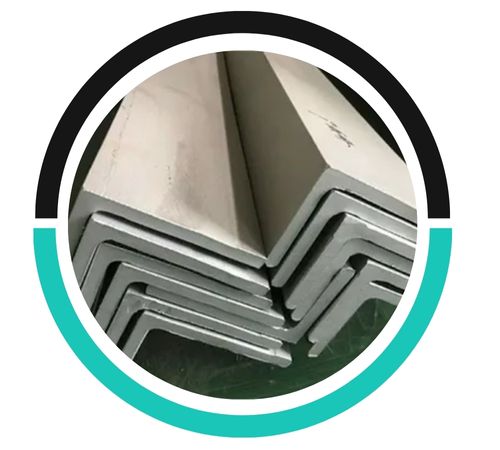

| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| Grade | Ni | Mo | Cr | Cu | C | Mn | Si | P | S |
| 904L | 23 – 28 | 4 – 5 | 19 – 23 | 1 – 2 | 0.02 max | 2.0 max | 1.0 max | 0.045 max | 0.035 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.05 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | AFNOR | JIS | BS | KS | EN |
| 904L | 1.4539 | N08904 | Z2NCUD31-20AZ | SUS 890L | 904S13 | STS 317J5L | X1NiCrMoCu25-20-5 |
Stainless Steel 904L Flat Bars find extensive use in industries where high corrosion resistance and strength are crucial. In chemical processing, they are perfect for tanks, piping, and heat exchangers that deal with aggressive chemicals. The marine and offshore industries utilize them for shipbuilding, seawater cooling systems, and platform structures. They are also employed in pulp and paper mills, desalination plants, and pollution control systems. In the pharmaceutical and food sectors, their cleanliness and durability are highly valued, making them an excellent choice for various applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
