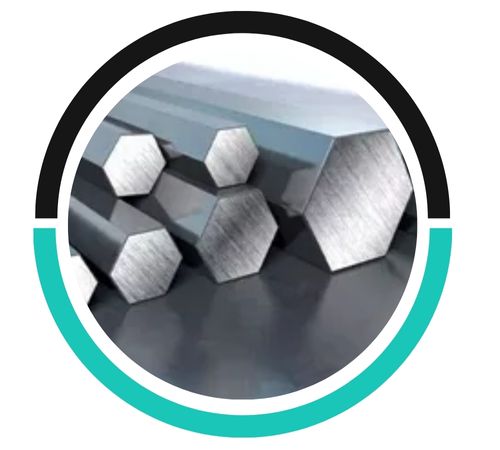

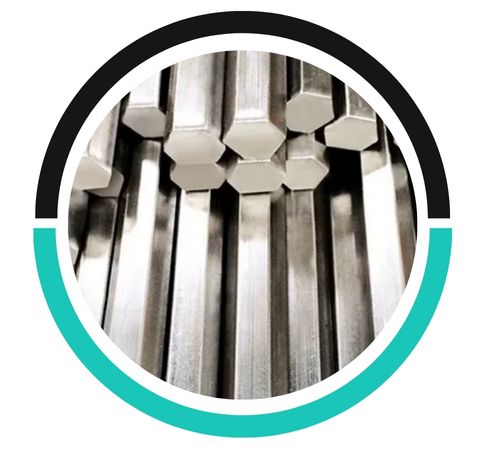

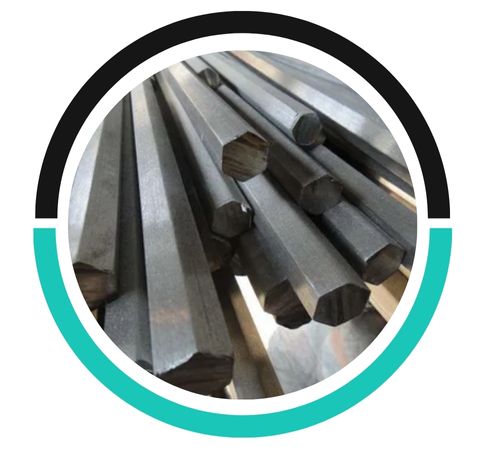

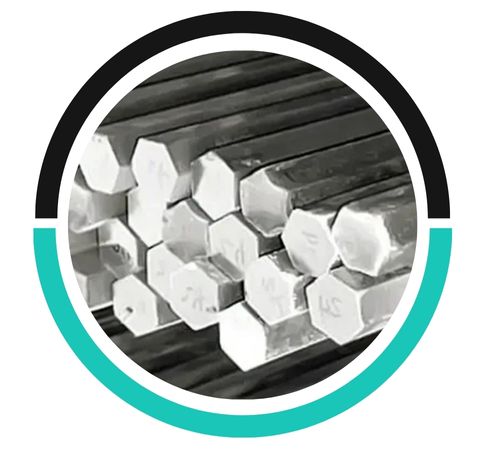

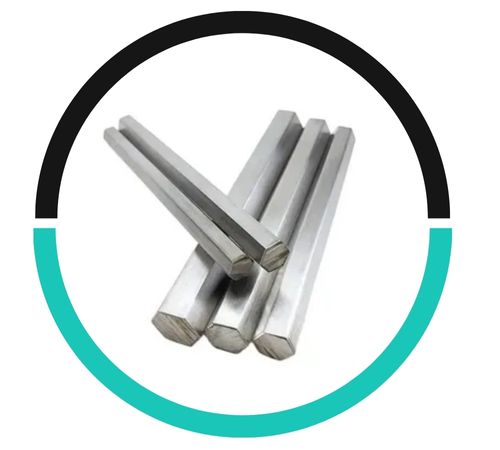

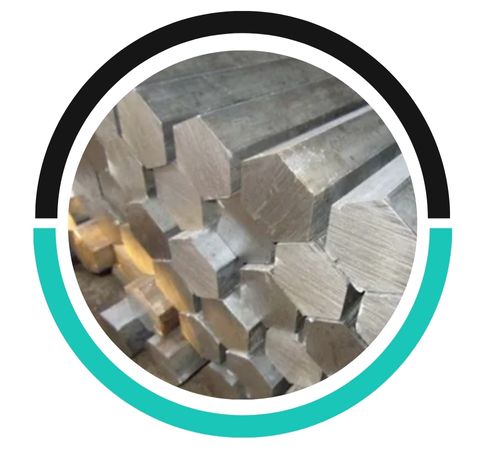

We take pride in being a trusted manufacturer and supplier of Stainless Steel 904L Hex Bars, providing top-notch solutions for tough industrial settings. This low-carbon, high-alloy austenitic stainless steel is known for its remarkable resistance to harsh reducing acids, chloride-induced stress corrosion cracking, and pitting. Our hex bars are crafted with precision, ensuring exceptional dimensional accuracy, strength, and a smooth surface finish. They’re perfect for aggressive chemical environments, marine applications, and high-temperature situations. With outstanding formability, weldability, and long-lasting durability, 904L hex bars deliver reliable performance in corrosive conditions, making them a go-to choice for chemical processing, offshore engineering, and specialized industrial equipment.
Stainless Steel 904L Hex Bars are made up of about 19–23% chromium, 23–28% nickel, 4–5% molybdenum, and 1–2% copper, with a low carbon content of less than 0.02%, and the rest being iron. This alloy boasts a tensile strength ranging from 490–710 MPa, a yield strength of 220 MPa, and an elongation of around 35%, with a hardness between 70–90 HRB. It excels in resisting sulphuric and phosphoric acids, seawater, and chloride attacks. The blend of high toughness, non-magnetic properties, and superior corrosion resistance guarantees dependable performance in situations where other stainless steels might fail.
| Specifications | ASTM B649 / ASME SB 649 |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Stainless Steel Round Bar | Outside Diameter in the range of 4mm to 500mm |
| Stainless Steel Bright Bar | Outside Diameter in the range of 4mm to 100mm |
| Stainless Steel Hex Bar | 18mm – 57mm (11/16″ to 2-3/4″) |
| Stainless Steel Square Bar | 18mm – 47mm (11/16″ to 1-3/4″) |
| Stainless Steel Flat Bar | 1/2″ to 10″ in thickness range of 2 mm to 150mm, Custom Size Stainless Steel Flats available |
| Range | 3.17 MM TO 350 MM DIA |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Finishing | Bright, Polish & Black |
| Form of | Hex, Wire (Coil Form), Wiremesh, Billet, Ingot, Forging Etc., |
| Other Services | Machining (CNC), Centreless Grinding (CG), Heat Treatment, Annealing, Pickling, Polish, Rolling, Forging, Cutting, Bending, Minor Fabrication, |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu | |
| SS 904L | Min | – | – | – | – | – | 19 | 4 | 23 | 1 |
| Max | 0.02 | 2 | 1 | 0.045 | 0.035 | 23 | 5 | 28 | 2 |
| Grade | Tensile strength (MPa) | Yield Strength 0.2% Proof(MPa) | Elongation (% in 50mm) | Hardness – Brinell |
| 904L | 490 | 220 | 36 | 70-150 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 904L Hex Bars find their place in various industries that require exceptional corrosion resistance and strength. In chemical processing, they’re essential for creating heat exchangers, reactors, and process equipment. The marine industry utilizes them for seawater cooling systems, offshore platforms, and shipbuilding. They’re also widely used in pulp and paper processing, desalination plants, and flue gas cleaning systems. In the pharmaceutical and food sectors, their hygiene and non-contaminating characteristics make them highly valued, ensuring safety and quality in sensitive applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
