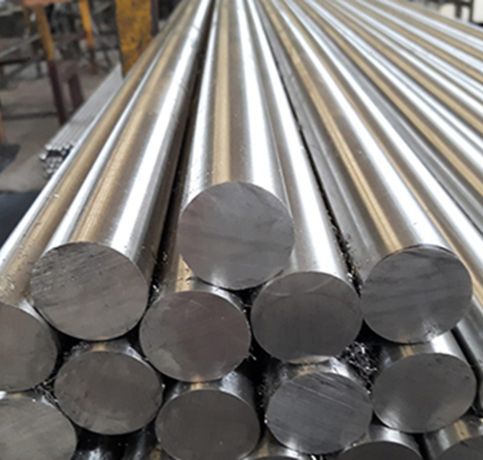

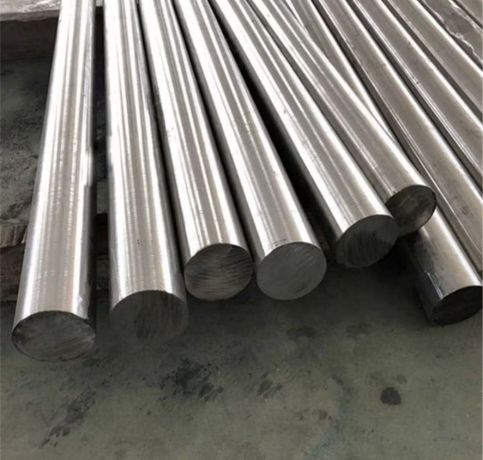

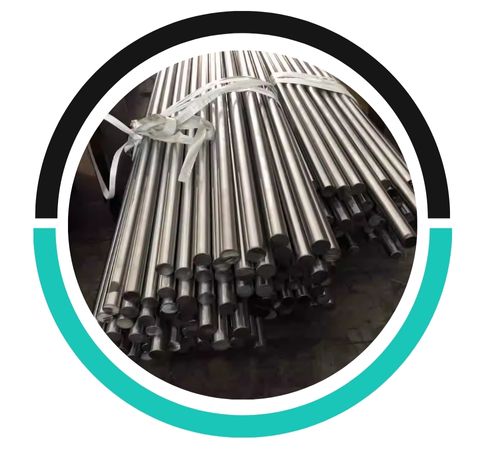

Aiman Metals stands out as a top-notch manufacturer and supplier of premium Stainless Steel Round Bars and Rods, proudly based in Kuala Lumpur, Malaysia. With a keen emphasis on precision, durability, and resistance to corrosion, Aiman Metals serves a diverse range of industries, including construction, marine, automotive, chemical, and manufacturing. The company provides stainless steel round bars and rods in various grades and sizes, tailored to meet international standards and specific customer needs. Utilizing cutting-edge techniques and rigorous quality control, Aiman Metals guarantees products with exceptional mechanical strength and a flawless surface finish, making it a reliable partner for stainless steel solutions throughout Southeast Asia and beyond.
Stainless Steel Round Bars and Rods are typically crafted from grades like 304, 316, 410, and 420, featuring compositions that include 16–25% chromium, 8–20% nickel, and optional elements such as molybdenum and manganese to enhance corrosion resistance and strength. These bars boast tensile strengths ranging from 500–1000 MPa and yield strengths between 200–600 MPa, depending on the specific grade. They are known for their outstanding ductility, toughness, and resistance to corrosion. Their perfectly round shape and smooth finish make them ideal for machining and fabrication, ensuring reliable mechanical performance in various high-stress and corrosive environments.

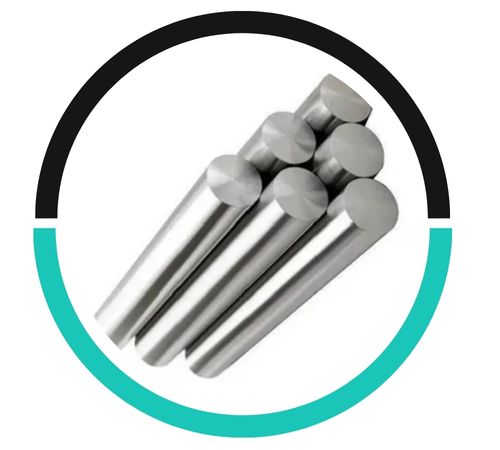

| SS Bar Standard | ASTM A276, ASTM A479, AMS 5513, AMS 5511, AMS 5647 |
|---|---|
| Stainless Steel Bar Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Stainless Steel Round bar size | Diameter: 3-~800mm |
| Stainless Steel Hex Bar size | 2-100mm A/F |
| SS Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Stainless Steel Square bar size | 4 to 100mm |
| SS Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| SS Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Stainless Steel Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| ASTM A276 Type Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| SS Threaded Bar Billet Size | 1/2 to 495mm Diameter |
| Stainless Steel Rectangular Size | 33 x 30mm to 295 x 1066mm |
| SS Hex Bars Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| ASTM A276 Type Hollow Bar Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| SUS T-Bar Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Rolled Stainless Steel Flat Bars Condition | Hardened & tempered, annealed |

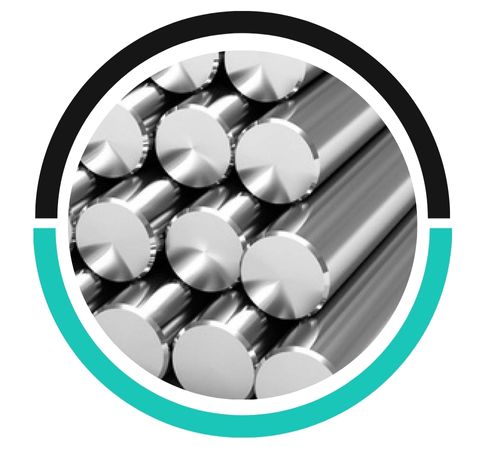

| ASTM A276 Type Cold Rolled Bar Technique | Stainless Steel Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| SS Rod Processing | Bar cutting to 650mm |

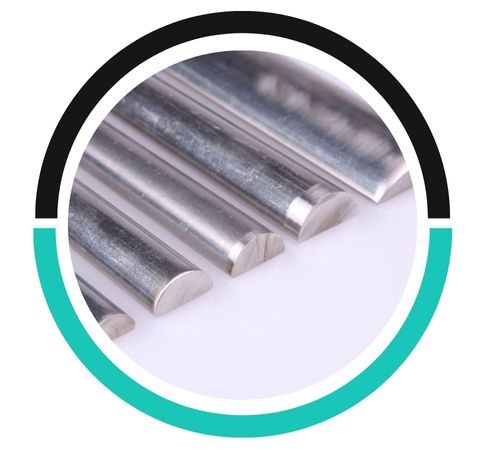

| Stainless Steel Rounds Bar Form | Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| ASTM Grade | Carbon | Manganese | Silicon | Sulfur | Phospherous | Chromium | Nickel | Molybdenum | Other |
| 304 | 0.08 max | 2.00 max | 0.75 max | 0.030 max | 0.045 max | 18.0-20.0 | 8.0 11.0 | – | – |
| 316 | 0.08 max | 2.00 max | 0.75 max | 0.030 max | 0.045 max | 16.0-18.0 | 10.0 14.0 | 2.0 3.0 | – |
| 317L | 0.035 max | 2.00 max | 0.75 max | 0.030 max | 0.045 max | 18.0-20.0 | 11.0 14.0 | 3.0 4.0 | – |
| 310 S | 0.08 max | 2.00 max | 1.5 max | 0.030 max | 0.045 max | 24.0-26.0 | 19.0 22.0 | 3.0 4.0 | – |
| 347 H | 0.04 0.10 | 2.00 max | 0.75 max | 0.030 max | 0.045 max | 17.0- 19.0 | 9.0 13.0 | – | 10C(Cb+Ta)<1.10% |
| 321 | 0.08 | 2.00 max | 0.75 max | 0.030 max | 0.045 max | 17.0-20.0 | 9.0 12.0 | – | 5C 0.70% |
| Grade | Elongation | Density | Tensile Strength | Yield Strength (0.2%Offset) | Melting Point |
| SS 202 | 40 % | 8.0 g/cm3 | 515 MPa | 275 MPa | 1454 °C (2650 °F) |
| SS 303 | 50 % | 55% | Psi – 85,000 | Psi – 45,000 | Rb 180 |
| SS 304 | 40% | 8.0 g/cm3 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 1400 °C (2550 °F) |
| SS 304L | 40% | 8.0 g/cm3 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 1400 °C (2550 °F) |
| SS 316 | 35 % | 8.0 g/cm3 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 1454 °C (2650 °F) |
| SS 316L | 40 % | 8.0 g/cm3 | 485 Min | 170 Min. | 1400 °C (2550 °F) |
| Diameter | Weight Chart | Dia | Weight Chart |
|---|---|---|---|
| (mm) | per metre (kg) | (in) | per metre (kg) |
| 3mm | 0.06 | 1/8″ | 0.06 |
| 4mm | 0.10 | 3/16″ | 0.14 |
| 5mm | 0.16 | 1/4″ | 0.25 |
| 6mm | 0.22 | 5/16″ | 0.39 |
| 7mm | 0.30 | 3/8″ | 0.56 |
| 8mm | 0.40 | 7/16″ | 0.77 |
| 10mm | 0.62 | 1/2″ | 1.00 |
| 12mm | 0.89 | 9/16″ | 1.22 |
| 14mm | 1.22 | 5/8″ | 1.56 |
| 15mm | 1.40 | 11/16″ | 1.89 |
| 16mm | 1.59 | 3/4″ | 2.25 |
| 18mm | 2.01 | 7/8″ | 3.07 |
| 20mm | 2.48 | 1″ | 4.03 |
| 22mm | 3.00 | ||
| 24mm | 3.57 | ||
| 25mm | 3.88 |
| Diameter or Width (mm) | Weight per meter | Sectional Area | Perimeter | |||
| Square (kg) | Round (kg) | Square (cm²) | Round (cm²) | Square (cm) | Round (cm) | |
| 5.0 | 0.20 | 0.15 | 0.25 | 0.20 | 2.0 | 1.57 |
| 5.5 | 0.24 | 0.19 | 0.30 | 0.24 | 2.2 | 1.78 |
| 6.0 | 0.28 | 0.22 | 0.36 | 0.28 | 2.4 | 1.88 |
| 7.0 | 0.38 | 0.30 | 0.49 | 0.38 | 2.8 | 2.20 |
| 8.0 | 0.50 | 0.39 | 0.64 | 0.50 | 3.2 | 2.51 |
| 9.0 | 0.64 | 0.50 | 0.81 | 0.64 | 3.6 | 2.83 |
| 10 | 0.73 | 0.63 | 1.00 | 0.79 | 4.0 | 3.14 |
| 11 | 0.95 | 0.75 | 1.21 | 0.95 | 4.4 | 3.46 |
| 12 | 1.13 | 0.89 | 1.44 | 1.13 | 4.8 | 3.77 |
| 14 | 1.54 | 1.21 | 1.96 | 1.54 | 5.6 | 4.40 |
| 16 | 2.01 | 1.58 | 2.56 | 2.01 | 6.4 | 5.03 |
| 18 | 2.54 | 2.00 | 3.24 | 2.54 | 7.2 | 5.65 |
| 20 | 3.14 | 2.47 | 4.00 | 3.14 | 8.0 | 6.28 |
| 22 | 3.80 | 2.98 | 4.84 | 3.80 | 8.8 | 6.91 |
| 25 | 4.91 | 3.85 | 6.25 | 4.91 | 10.0 | 7.85 |
| 28 | 6.15 | 4.83 | 7.84 | 6.16 | 11.2 | 8.80 |
| 32 | 8.04 | 6.31 | 10.24 | 8.04 | 12.8 | 10.05 |
| 36 | 10.17 | 7.99 | 12.96 | 10.18 | 14.4 | 11.31 |
| 40 | 12.56 | 9.86 | 16.00 | 12.57 | 16.0 | 12.57 |
| 45 | 15.90 | 12.49 | 20.25 | 15.90 | 18.0 | 14.14 |
| 50 | 19.62 | 15.41 | 25.00 | 19.64 | 20.0 | 15.71 |
| 56 | 24.62 | 19.34 | 31.36 | 24.63 | 22.4 | 17.59 |
| 63 | 31.16 | 24.47 | 36.69 | 31.17 | 25.2 | 19.79 |
| 71 | 39.57 | 31.08 | 50.41 | 39.59 | 28.4 | 22.31 |
| 80 | 50.24 | 39.46 | 64.00 | 50.27 | 32.0 | 25.13 |
| Type | SIZES in milimeter | SIZES in inches | Tolerance |
|---|---|---|---|

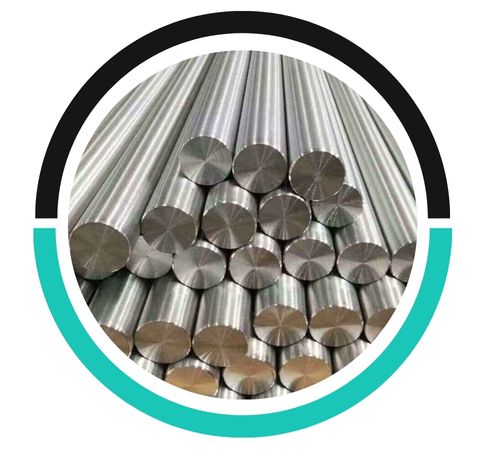

| Peeled and Polished | 40.00 – 150.00 | 1.50 – 6.00 | h11, h11-DIN 1013 |

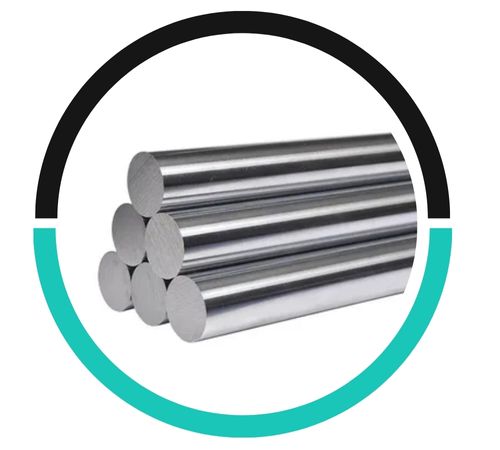

| Cold Drawn and Polish | 3.00 to 75.00 | 1/8 to3.00 | h8 to h11 |
| Cold Drawn and Ground | 10.00 to 75.00 | 5/6 to 2.50 | h8 to h11 |
| Peeled nd Ground | 20.00 – 50.00 | 3/4 – 2.00 | h9 to h11 |
Stainless Steel Round Bars and Rods find extensive applications in industries that demand strength, corrosion resistance, and pristine surface finishes. In construction, they are essential for structural supports, fasteners, and reinforcement components. In the marine and chemical sectors, they are utilized in shafts, valves, and piping systems due to their remarkable ability to withstand harsh conditions. The automotive and aerospace industries rely on them for axles, suspension components, and various mechanical parts. Additionally, they play a crucial role in food processing, medical equipment, and general manufacturing.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
