Aiman Metals stands out as a trusted manufacturer and supplier of top-notch Tantalum Bars and Rods, proudly based in Kuala Lumpur, Malaysia. Known for delivering high-performance and specialty metals, Aiman Metals offers Tantalum products that are designed to meet the demanding needs of today’s industries. These bars and rods are crafted to provide exceptional resistance to corrosion, particularly in highly acidic settings. Catering to sectors like electronics, chemical processing, aerospace, and medical, Aiman Metals guarantees that all its products adhere to international quality and metallurgical standards. With a strong focus on precision, performance, and customer satisfaction, Aiman Metals has earned its reputation as a reliable name in both Malaysian and global markets.
Tantalum Bars and Rods are made up of at least 99.9% pure tantalum, with only trace amounts of elements such as oxygen, nitrogen, carbon, and hydrogen. Tantalum is celebrated for its remarkable chemical inertness, providing outstanding resistance to corrosion, especially against acids like hydrochloric and sulfuric. This material boasts high ductility, a melting point of around 3,017°C, and tensile strength that ranges from 200 to 750 MPa, depending on its temper. Additionally, tantalum offers good electrical conductivity and biocompatibility, making it ideal for both industrial and medical applications that require stability under extreme conditions.
| Specification | ASTM B365, ASME SB365 |

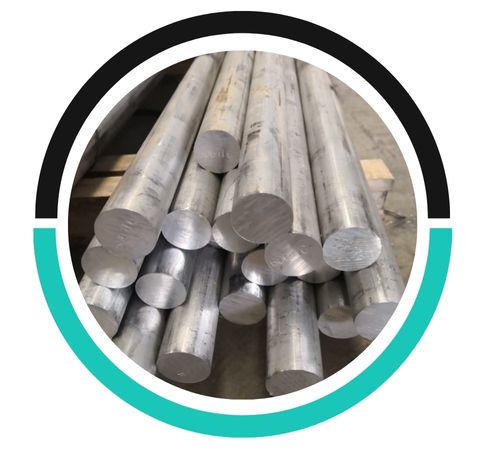

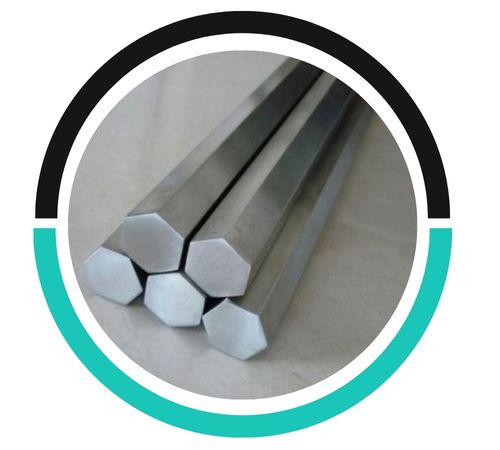

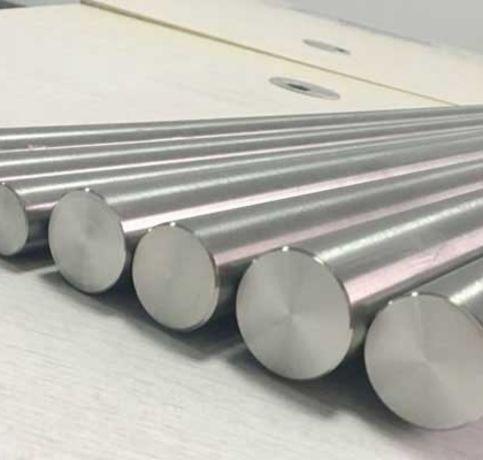

| Tantalum Bar Form | Tantalum Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |
| Tantalum Round Bar Diameter | 0.125″ (3.18mm)~2.5″ (63.5mm) |
| Length | 2-12m |
| Purity | ≥99.95% or 99.99% |
| Tantalum Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Type | Ta | W | Nb |
|---|---|---|---|
| R05200 / R05400 | Unalloyed (Pure) | – | – |
| R05252 | 97.5 % | 2.5 % | – |
| R05255 | 90 % | 10 % | – |
| R05240 | 60 % | – | 40 % |
| Type | Ultimate Tensile Strength min.psi (Mpa) | Yeild Strength min.psi (Mpa) | Elongation, % (min) |
|---|---|---|---|
| R05200 / R05400 | 25,000(172) | 15,000(103) | 25 |
| R05252 | 40,000(276) | 20,000(138) | 20 |
| R05255 | 70,000(482) | 55,000(379) | 20 |
| R05240 | 35,000(241) | 15,000(103) | 25 |
| 3/16” (4.76mm) | 25mm | 2.1/2” (63.5mm) |
| ¼” (6.35mm) | 1” (25.4mm) | 2.3/4” (69.85mm) |
| 5/16” (7.94mm) | 1.1/8” (28.58mm) | 3” (76.2mm) |
| 3/8” (9.53mm) | 30mm | 3.1/4” (82.55mm) |
| 10mm | 1.1/4” (31.75mm) | 3.1/2” (88.9mm) |
| 12mm | 1.3/8” (34.93mm) | 4” (101.6mm) |
| ½” (12.7mm) | 1.1/2” (38.1mm) | 4.1/2” (114.3mm) |
| 15mm | 40mm | 5” (127mm) |
| 5/8” (15.88mm) | 1.3/4” (44.45mm) | 5.1/2” (139.7mm) |
| ¾” (19.05mm) | 2” (50.8mm) | 6” (152.4mm) |
| 20mm | 2.1/8” (53.98mm) | 7” (177.8mm) |
| 7/8” (22.23mm) | 2.1/4” (57.15mm) | 8” (203.2mm) |
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
|---|---|---|---|---|---|---|---|---|
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 |
Tantalum Bars and Rods find extensive use in industries that require exceptional corrosion resistance and high-temperature performance. In the electronics field, tantalum is utilized for capacitors and high-reliability components. In chemical processing, it plays a crucial role in heat exchangers, reactor vessels, and piping systems that are exposed to strong acids. The medical sector employs tantalum for surgical implants and instruments due to its biocompatibility. Furthermore, aerospace and defense industries use it in engine components and high-temperature structural parts.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
