Aiman Metals stands out as a leading manufacturer and supplier of Titanium Grade 1 Forgings, proudly based in Kuala Lumpur, Malaysia. Known for their commitment to quality and precision, Aiman Metals crafts expertly forged titanium products that adhere to the highest industry standards. They specialize in corrosion-resistant and high-performance materials, catering to essential sectors like chemical processing, marine, aerospace, and medical. By employing advanced forging techniques and strict quality control measures, Aiman Metals guarantees exceptional dimensional accuracy, mechanical integrity, and surface finish. Clients throughout Malaysia and beyond rely on Aiman Metals for dependable, cost-effective titanium forging solutions tailored to their specific needs.
Titanium Grade 1 is a commercially pure titanium alloy boasting a minimum purity of 99.5%, making it the softest and most ductile of all titanium grades. It offers remarkable corrosion resistance, particularly in oxidizing and marine environments. Its mechanical properties include a tensile strength of about 240–350 MPa and a yield strength of around 170 MPa, along with impressive ductility and impact toughness. With a low density of 4.51 g/cm³ and a melting point of 1,668°C, Titanium Grade 1 forgings are perfect for applications where formability, weldability, and corrosion resistance take precedence over strength.
| Specifications | ASTM B381, ASME SB381 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |

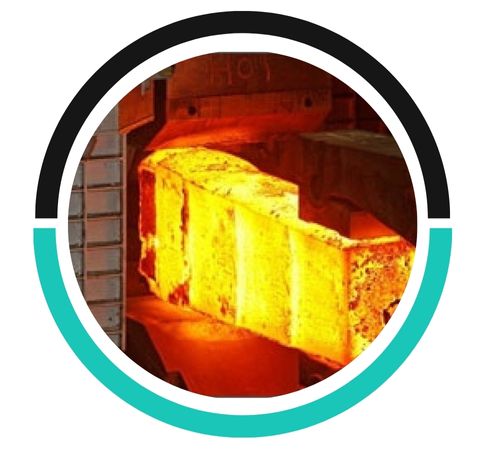

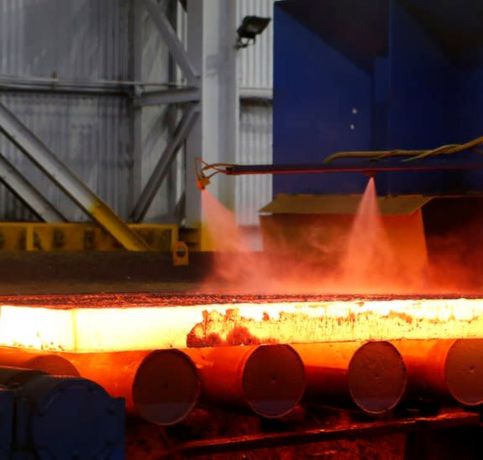

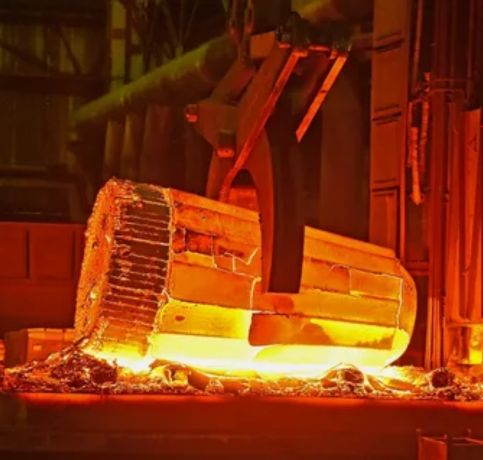

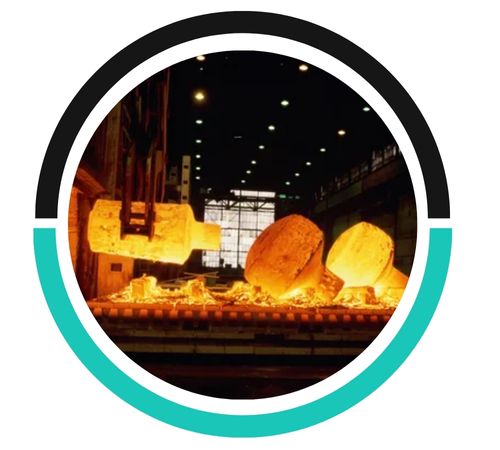

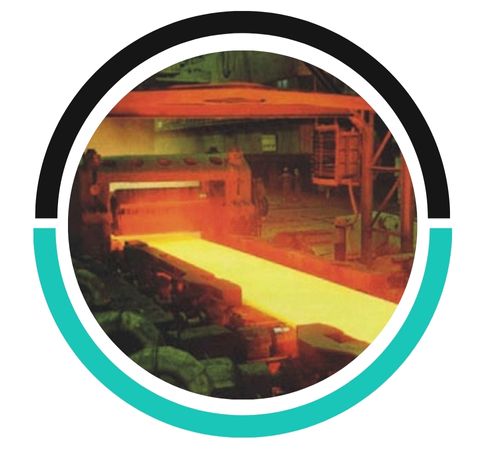

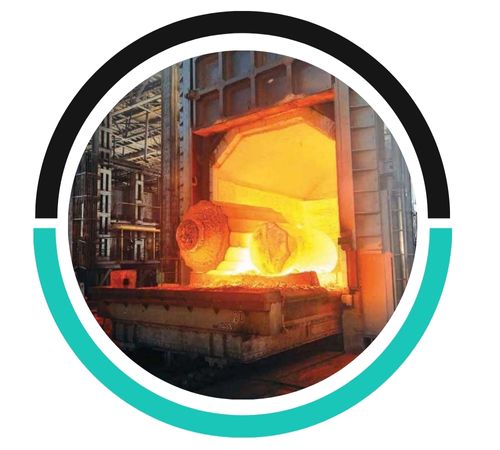

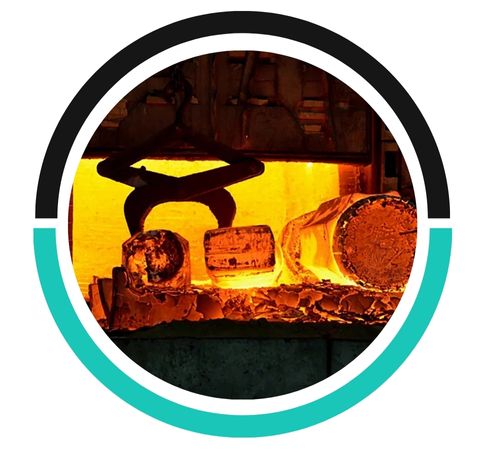

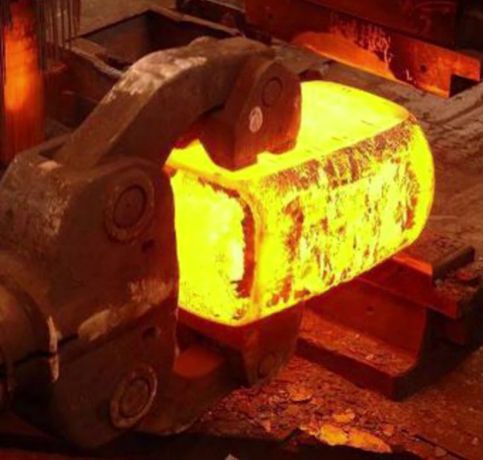

| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | C | O | N | Fe | H | Ti | I |
| Min | – | – | – | – | – | 99.095 | – |
| max | 0.080 | 0.18 | 0.030 | 0.2 | 0.015 | 100 | 0.2 |
| Grades | Tensile KSI Min | Yield KSI Min/Max | % Elongation Min |
| Titanium Gr 1 | 35 | 25/45 | 24 |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Grade 1 | 3.7025 | R50250 |
Titanium Grade 1 Forgings find extensive use in industries that demand outstanding corrosion resistance, lightweight materials, and biocompatibility. In the chemical and petrochemical fields, they are ideal for pressure vessels, heat exchangers, and piping components that face harsh corrosive environments. In marine settings, Grade 1 forgings are utilized in seawater systems, offshore structures, and ship components. The medical industry also benefits from these materials, using them for surgical tools and implantable devices due to their non-toxic nature.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
