Aiman Metals stands out as a top manufacturer and supplier of Titanium Grade 1 bars and rods, proudly based in Kuala Lumpur, Malaysia. Our commitment is to provide high-quality, corrosion-resistant titanium products that cater to a variety of industries, such as chemical processing, marine, aerospace, and medical. Titanium Grade 1 is known for being the softest and most ductile among all commercially pure titanium grades, which means it offers fantastic formability and outstanding corrosion resistance. At Aiman Metals, we prioritize precise manufacturing, compliance with international standards, and timely delivery. Our customer-centric approach makes us a trusted source for Titanium Grade 1 bars and rods throughout Malaysia and beyond.
Titanium Grade 1 is essentially commercially pure titanium, containing at least 99.5% Ti, with minimal amounts of oxygen, nitrogen, carbon, hydrogen, and iron. It boasts the highest ductility and impact toughness of all titanium grades. Typical mechanical properties include a tensile strength ranging from 240 to 350 MPa and a yield strength of about 170 MPa, along with excellent elongation and cold-forming capabilities. This grade also offers remarkable corrosion resistance in oxidizing, neutral, and mildly reducing environments. Therefore, Titanium Grade 1 bars and rods are perfect for applications where easy fabrication, corrosion resistance, and lightweight performance are essential.
| Standards : | ASTM B348, B863 / ASME SB 348, SB 863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

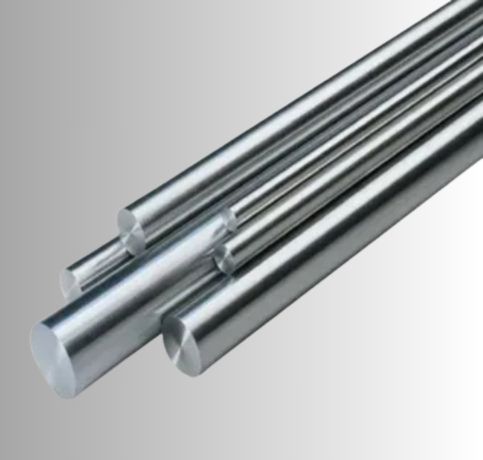

| Round bar size : | Diameter: 3-~800mm |

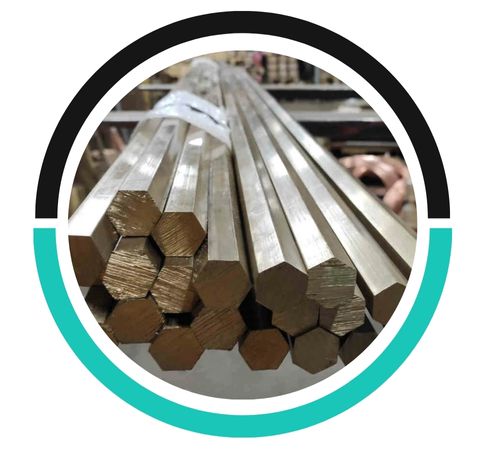

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

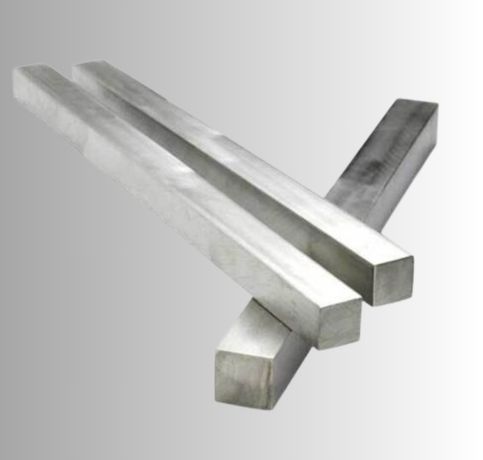

| Square bar size : | 4 to 100mm |

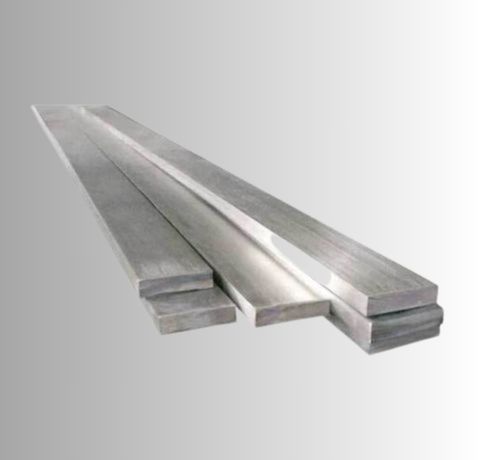

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 1 | 3.7025 | R50250 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 1 | 0.08 max | 0.03 max | 0.18 max | 0.015 max | Bal | 0.20 20 |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 240 | 170 | 24 % |
| Physical Properties | Metric | English |
|---|---|---|
| Density | 4.51Â g/cc | 0.163Â lb/inÂł |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |

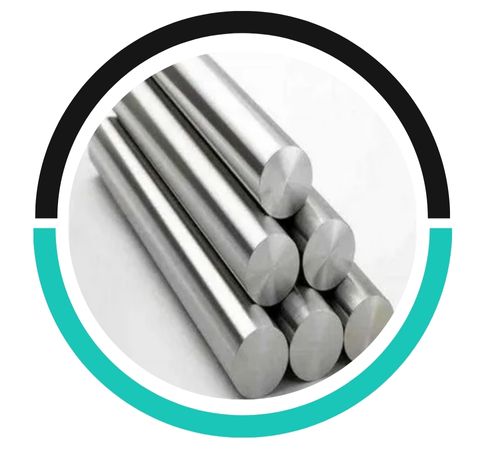

| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 1 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Titanium Grade 1 bars and rods find extensive use in applications that require exceptional corrosion resistance and superior formability. In the chemical processing sector, they are commonly used for heat exchangers, pressure vessels, and piping systems that face acidic or chloride-rich environments. In marine applications, they are ideal for components like fasteners, valves, and seawater piping due to their impressive resistance to saltwater corrosion. Additionally, Grade 1 titanium is utilized in the medical field for surgical instruments and implantable devices, thanks to its biocompatibility.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Aiman Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Kuala lumpur, Malaysia
