Aiman Metals, located in Kuala Lumpur, Malaysia, is a trusted name in the manufacturing and supply of top-notch Titanium Grade 11 bars and rods. We pride ourselves on providing corrosion-resistant and high-performance titanium products tailored for various industries, including chemical processing, marine, power generation, and environmental engineering. Titanium Grade 11 is a commercially pure titanium alloy enriched with palladium, which significantly boosts its resistance to corrosion, particularly in harsh reducing and chloride-rich environments. At Aiman Metals, we blend cutting-edge manufacturing techniques with strict quality standards to guarantee precision, durability, and timely delivery, making us a go-to supplier of Titanium Grade 11 products in Malaysia and beyond.
Titanium Grade 11 is a commercially pure titanium alloy that includes 0.12–0.25% palladium, enhancing its ability to resist crevice and reducing acid corrosion. It boasts mechanical properties similar to Grade 1 titanium, providing excellent ductility, weldability, and formability. The alloy typically has a tensile strength ranging from 240–360 MPa and a yield strength of about 170–275 MPa. Its remarkable corrosion resistance, particularly in acidic and brine environments, ensures long-lasting performance. Titanium Grade 11 bars and rods are perfect for applications that require high corrosion resistance alongside moderate strength and superb fabrication characteristics.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

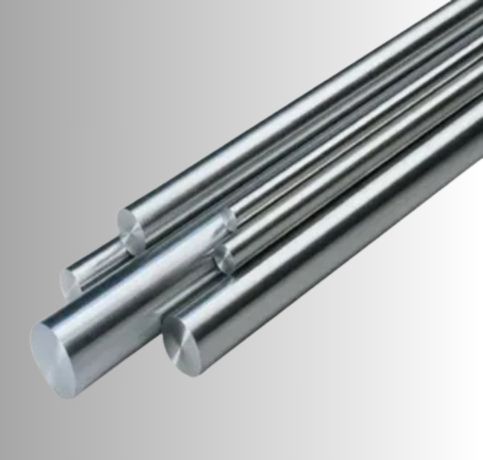

| Round bar size : | Diameter: 3-~800mm |

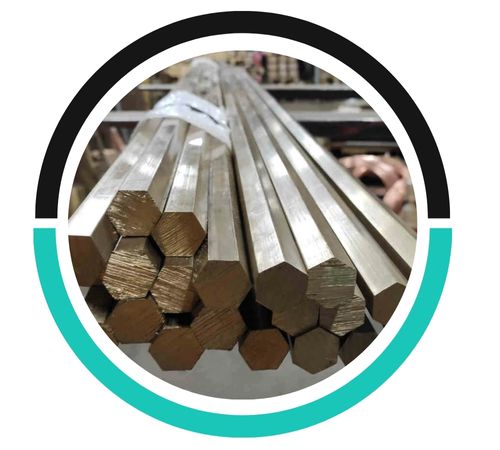

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

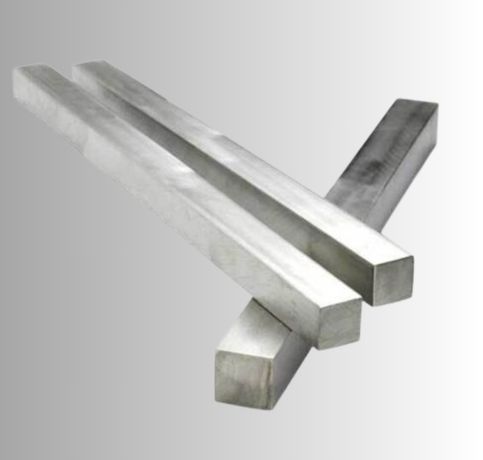

| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 11 | 3.7225 | R52250 |
| Grade | C | Fe | N | Ti | H | O |
| Titanium Gr. 11 | 0.08 max | 0.20 max | 0.03 max | Balance | 0.015 max | 0.18 max |
| Density | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.163 lb/in3, (4.51 g/cm3) | 240 | 170 | 24 % |
| Grade | C | N | O | H | Ti | Fe | Al | Pd |
|---|---|---|---|---|---|---|---|---|
| Titanium Gr 11 | .08 max | .03 max | .25 max | .015 max | Bal | 0.30 max | – | .12 – .25 |
Titanium Grade 11 bars and rods find extensive use in settings where corrosion resistance is paramount. In the chemical processing sector, they are essential for constructing tanks, piping systems, and heat exchangers that come into contact with acidic and chloride-laden solutions. Their exceptional resistance to seawater makes them ideal for marine applications, including underwater hardware, fasteners, and shafts. In the power generation field, they are utilized in cooling systems and condensers. Additionally, thanks to their biocompatibility, Grade 11 products are also used in medical applications, ensuring safety and reliability in sensitive environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
