Titanium Grade 3 Bars/Rods

Aiman Metals stands out as a premier manufacturer and supplier of top-notch Titanium Grade 3 Bars and Rods, proudly based in Kuala Lumpur, Malaysia. Renowned for our precision engineering and unwavering commitment to quality, we deliver exceptional titanium products to a diverse array of industries both locally and internationally. Our Titanium Grade 3 Bars and Rods are meticulously sourced and processed with cutting-edge technology, ensuring remarkable durability and performance. Whether you need titanium for aerospace, marine, medical, or industrial uses, Aiman Metals promises competitive pricing, prompt delivery, and strict adherence to global standards, making us a reliable partner in the metals sector.

Titanium ASTM B348 Rods Exporter in Malaysia, Ti Grade 3 Round Bars Stockist in Kuala lumpur, Titanium UNS R50550 Flat Bar Supplier in Malaysia, Titanium UNS R50550 Cold Drawn Hex Bars Distributor in Malaysia, Ti Grade 3 Rods Stockist Ipoh, Titanium UNS R50550 Hexagonal Bars Price in Ipoh, Titanium Alloy ASTM B348 Square Bar & Rods Kuala lumpur, Titanium DIN 3.7055 Bright Round Bars Supplier in Malaysia, Ti Alloy DIN 3.7055 Hex Bar Supplier in Kuala lumpur, ASTM B348 Ti Alloy Cold Drawn Rods Exporter in West Kuala lumpur

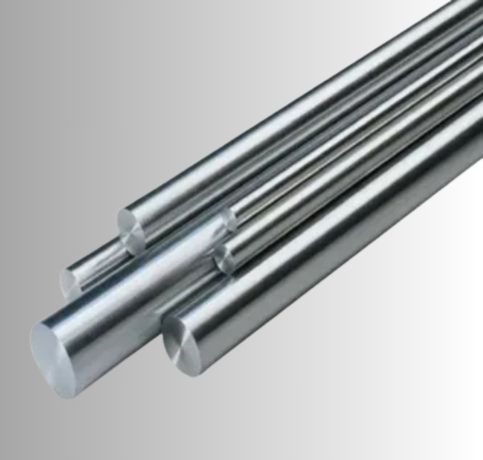

Titanium Gr. 3 Round Bars

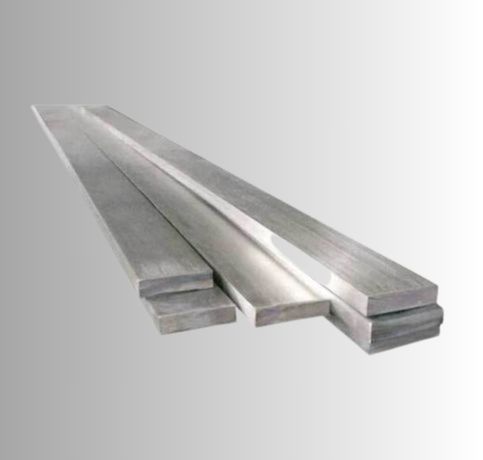

Titanium Alloy Gr.3 Rectangular Bars

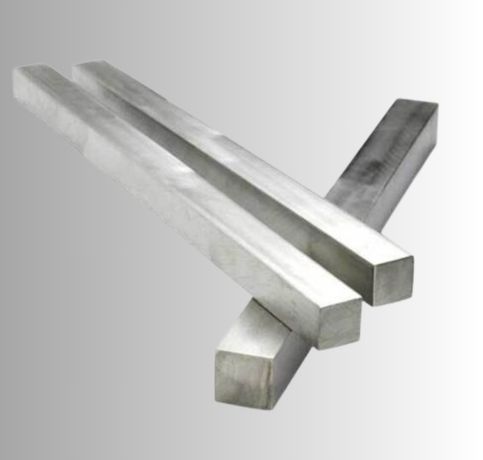

Ti Grade 3 Square Rods

What is Titanium Grade 3 Bars/ Rods?

Titanium Grade 3 Bars and Rods are composed of about 99.2% titanium, along with trace amounts of iron (0.30%), oxygen (0.35%), and other elements. This unalloyed titanium grade boasts greater strength than Grades 1 and 2 while still offering good corrosion resistance. With a tensile strength of roughly 485 MPa (70 ksi) and a yield strength of 345 MPa (50 ksi), plus an elongation of 18%, these bars also feature excellent weldability, moderate formability, and a density of 4.51 g/cm³. These mechanical properties make Grade 3 perfect for demanding structural applications.

Titanium Alloy UNS R50550 Polished Bars Exporter in Malaysia, DIN 3.7055 Titanium Bright Rods Exporter in Kuantan, Grade 3 Ti Alloy Hollow Rods Manufacturer in Ipoh, Ti UNS R50550 Rectangular Bars Distributor in Malaysia, Titanium Alloy Grade 3 Square Rods Dealer in West Kuala lumpur, Titanium Alloy UNS R50550 Square Bars Size Chart in Malaysia, Ti DIN 3.7055 Hollow Bars Stockist in Kuala lumpur, Ti Grade 3 Hexagonal Rods Price List West Kuala lumpur, Ti Bar/Rods Weight Chart

Titanium Gr.3 Bars/ Rods Specifications

Standards :	ASTM B348, B863 / ASME SB348, SB863
Dimensions :	EN, DIN, JIS, ASTM, BS, ASME, AISI
Wire :	Thickness starting from 0.05mm
Round bar size :	Diameter: 3-~800mm
Hex Bar size :	2-100mm A/F
Flat bar size :	Thickness: 2 -100mm / Width: 10 to 500mm
Square bar size :	4 to 100mm
Rectangular Bars Size :	33 x 30mm to 295 x 1066mm
Hollow Bar :	32mm OD x 16mm ID to 250mm OD x 200mm ID
Tolerance :	H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Finish :	Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish

Titanium Gr.3 Bars/ Rods Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS
Titanium Gr 3	3.7055	R50550

You Need Our Support, to Have Any Projects?

Test Certificate

Why Aiman Metals?

Packaging

Titanium Gr.3 Bars/ Rods Chemical Composition

Grade	C	N	O	H	Ti	Fe
Titanium Grade 3	0..08 max	0.05 max	0.35 max	0.015 max	Bal	0.30 max

Titanium Gr.3 Bars/ Rods Mechanical Properties

Tensile Strength	Reduction of area	Elongation	Hardness
450	30	18 %	90

Titanium Gr.3 Bars/ Rods Physical Properties

Density	0.163 lbs/in³ ,(4.51 g/cm³)
Mean Coefficient of Thermal Expansion	in/in/°F (mm/m/°C): 70- 212°F (20- 100°C) 4.78 x 10-6(8.6)
Thermal Conductivity	BTU-in/h-ft-°F (W/m-°K): At 70°F (21°C): 138 (19.9)
Modulus of Elasticity, ksi (MPa)	15.2 x 10³ (105 x 10³) in tension
Melting Point	3020°F (1660°C)

Titanium Grade 3 Bar and Rods Sizes

Type	SIZES (mm)	SIZES (Inches)	ISO Tolerance
Cold Drawn and Ground	10.00 – 75.00	5/6″ – 2.50″	h8-h9-h10-h11
Peeled and Polished	40.00 – 150.00	1.50″ – 6.00″	h11, h11-DIN 1013
Peeled and Ground	20.00 – 50.00	3/4″ – 2.00″	h9-h10-h11
Cold Drawn and Polish	3.00 – 75.00	1/8″ – 3.00″	h8-h9-h10-h11

Titanium Grade 3 Round Bars Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).

5.0	45.0
6.0	50.0
7.0	55.0
8.0	60.0
9.0	65.0
10.0	70.0
12.0	75.0
16.0	80.0
20.0	90.0
25.0	100.0
30.0	130.0
35.0	160.0
40.0	200.0

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Titanium Grade 3 Bar and Rods Types

Ti Grade 3 Rods Dealer in West Kuala lumpur, Titanium UNS R50550 Round Bars Manufacturer in West Kuala lumpur, Titanium Alloy DIN 3.7055 Cold Drawn Round Bar Dimensions Kuantan, Titanium ASTM B348 Hex Bars Size Chart, Titanium Alloy Grade 3 Rods Price in Ipoh, Stockist of Ti ASTM B348 Rectangular Bars in Kuala lumpur, Ti Grade 3 Flat Rods Supplier in Malaysia, Alloy UNS R50550 Round Bar Price List in Kuala lumpur, Ti Alloy Rectangular Bar and Rods Weight Chart

Titanium Grade 3 Bars and Rods Uses

Titanium Grade 3 Bars and Rods find extensive use in industries that demand exceptional strength and corrosion resistance. They are commonly utilized in heat exchangers, condenser tubing, pressure vessels, and marine components, thanks to their durability in tough environments. In the aerospace industry, they play a crucial role in airframe structures and engine components where a high strength-to-weight ratio is vital. The chemical processing sector benefits from their resistance to oxidizing agents and chlorides. Additionally, Grade 3 titanium is used in medical implants and surgical instruments, where biocompatibility is essential. Its versatility and performance make it an excellent choice for a wide range of applications.
