Titanium Grade 4 Bars/Rods

Aiman Metals is a well-respected manufacturer and supplier located in Kuala Lumpur, Malaysia, that specializes in top-notch Titanium Grade 4 Bars and Rods. With a keen emphasis on precision engineering, durability, and ensuring customer satisfaction, Aiman Metals serves a variety of industrial sectors that need dependable titanium components. Their Titanium Grade 4 products are celebrated for their remarkable strength, resistance to corrosion, and reliable performance even in extreme conditions. Aiman Metals guarantees that all materials comply with international standards, offering clients trustworthy solutions for critical applications. Their dedication to quality and competitive pricing has made them a favored supplier throughout Malaysia and beyond.

Titanium ASTM B348 Rods Exporter in Malaysia, Ti Grade 4 Round Bars Stockist in Kuala lumpur, Titanium UNS R50700 Flat Bar Supplier in Malaysia, Titanium UNS R50700 Cold Drawn Hex Bars Distributor in Malaysia, Ti Grade 4 Rods Stockist Ipoh, Titanium UNS R50700 Hexagonal Bars Price in Ipoh, Titanium Alloy ASTM B348 Square Bar & Rods Kuala lumpur, Titanium DIN 3.7065 Bright Round Bars Supplier in Malaysia, Ti Alloy DIN 3.7065 Hex Bar Supplier in Kuala lumpur, ASTM B348 Ti Alloy Cold Drawn Rods Exporter in West Kuala lumpur

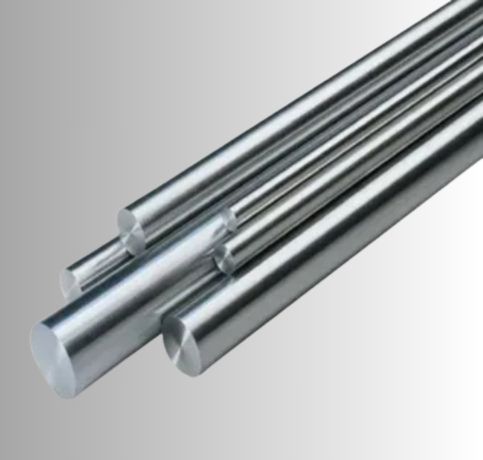

Titanium Gr. 4 Round Bars

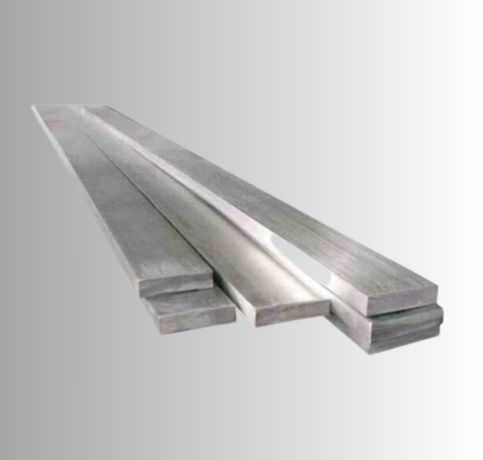

Titanium Alloy Gr.4 Rectangular Bars

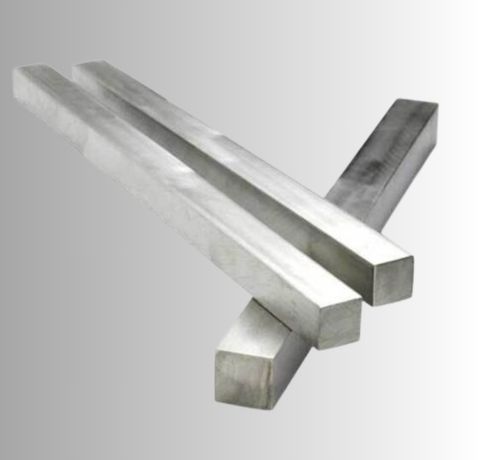

Ti Grade 4 Square Rods

What is Titanium Grade 4 Bars/ Rods?

Titanium Grade 4 Bars and Rods are primarily made of titanium (≥99%) along with trace amounts of elements like iron (≤0.5%), oxygen (≤0.4%), carbon (≤0.08%), nitrogen (≤0.05%), and hydrogen (≤0.015%). This unalloyed grade boasts the highest strength among commercially pure titanium grades. Its mechanical properties include a tensile strength of about 550 MPa, a yield strength of around 480 MPa, and excellent ductility and weldability. It also offers outstanding corrosion resistance, especially in oxidizing and mildly reducing environments. These characteristics make Grade 4 titanium an excellent choice for demanding structural and chemical processing applications.

Titanium Alloy UNS R50700 Polished Bars Exporter in Malaysia, DIN 3.7065 Titanium Bright Rods Exporter in Kuantan, Grade 4 Ti Alloy Hollow Rods Manufacturer in Ipoh, Ti UNS R50700 Rectangular Bars Distributor in Malaysia, Titanium Alloy Grade 4 Square Rods Dealer in West Kuala lumpur, Titanium Alloy UNS R50700 Square Bars Size Chart in Malaysia, Ti DIN 3.7065 Hollow Bars Stockist in Kuala lumpur, Ti Grade 4 Hexagonal Rods Price List West Kuala lumpur, Ti Bar/Rods Weight Chart

Titanium Gr.4 Bars/ Rods Specifications

Standards :	ASTM B348, B863 / ASME SB348, SB863
Dimensions :	EN, DIN, JIS, ASTM, BS, ASME, AISI
Wire :	Thickness starting from 0.05mm
Round bar size :	Diameter: 3-~800mm
Hex Bar size :	2-100mm A/F
Flat bar size :	Thickness: 2 -100mm / Width: 10 to 500mm
Square bar size :	4 to 100mm
Rectangular Bars Size :	33 x 30mm to 295 x 1066mm
Hollow Bar :	32mm OD x 16mm ID to 250mm OD x 200mm ID
Tolerance :	H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Finish :	Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish

Titanium Gr.4 Bars/ Rods Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS
Titanium Gr 4	3.7065	R50700

You Need Our Support, to Have Any Projects?

Test Certificate

Why Aiman Metals?

Packaging

Titanium Gr.4 Bars/ Rods Chemical Composition

Grade	C	N	O	H	Ti	Fe
Titanium Grade 4	0..08 max	0.05 max	0.40 max	0.015 max	Bal	0.50 max

Titanium Gr.4 Bars/ Rods Mechanical Properties

Tensile Strength	Reduction of area	Elongation	Hardness
552	25 %	15 %	100

Titanium Gr.4 Bars/ Rods Physical Properties

Density	Electrical conductivity (% IACS)	Thermal conductivity (BTU-in/hr-ft²-°F)	Specific heat (BTU/lb-°F)	Thermal expansion (1/°F)	Melting Point (°F)
0.163	2.87	119	0.127	0.00000478	3020

Titanium Grade 4 Bar and Rods Sizes

Type	SIZES (mm)	SIZES (Inches)	ISO Tolerance
Cold Drawn and Ground	10.00 – 75.00	5/6″ – 2.50″	h8-h9-h10-h11
Peeled and Polished	40.00 – 150.00	1.50″ – 6.00″	h11, h11-DIN 1013
Peeled and Ground	20.00 – 50.00	3/4″ – 2.00″	h9-h10-h11
Cold Drawn and Polish	3.00 – 75.00	1/8″ – 3.00″	h8-h9-h10-h11

Titanium Grade 4 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).

5.0	45.0
6.0	50.0
7.0	55.0
8.0	60.0
9.0	65.0
10.0	70.0
12.0	75.0
16.0	80.0
20.0	90.0
25.0	100.0
30.0	130.0
35.0	160.0
40.0	200.0

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Titanium Grade 4 Bar and Rods Types

Ti Grade 4 Rods Dealer in West Kuala lumpur, Titanium UNS R50700 Round Bars Manufacturer in West Kuala lumpur, Titanium Alloy DIN 3.7065 Cold Drawn Round Bar Dimensions Kuantan, Titanium ASTM B348 Hex Bars Size Chart, Titanium Alloy Grade 4 Rods Price in Ipoh, Stockist of Ti ASTM B348 Rectangular Bars in Kuala lumpur, Ti Grade 4 Flat Rods Supplier in Malaysia, Alloy UNS R50700 Round Bar Price List in Kuala lumpur, Ti Alloy Rectangular Bar and Rods Weight Chart

Titanium Grade 4 Bars and Rods Uses

Titanium Grade 4 Bars and Rods find extensive use in industries that require high strength, biocompatibility, and resistance to corrosion. In the medical sector, they are utilized for surgical implants and orthopedic instruments due to their non-toxic properties. Aerospace manufacturers incorporate them into structural components and fasteners that face harsh conditions. In marine settings, Grade 4 titanium is perfect for offshore structures and desalination systems. Chemical processing facilities use it for heat exchangers, pressure vessels, and piping systems.

Our Products

Other Products

Other Material

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
