Aiman Metals is a reputable manufacturer and supplier of Titanium Grade 6 (Ti-5Al-2.5Sn) Bars and Rods, proudly based in Kuala Lumpur, Malaysia. Renowned for its commitment to high-quality, precision-engineered titanium products, Aiman Metals caters to a diverse array of industries, including aerospace, marine, power generation, and chemical processing. The Titanium Grade 6 bars and rods are highly regarded for their excellent weldability, moderate strength, and outstanding corrosion resistance. With cutting-edge manufacturing capabilities and rigorous quality assurance, Aiman Metals guarantees that all products comply with international standards and meet specific client needs, providing reliable and durable solutions for both local and global markets.
Titanium Grade 6, or Ti-5Al-2.5Sn, is an alpha titanium alloy that consists of about 5% aluminum and 2.5% tin. It boasts improved strength and stability compared to commercially pure titanium while still offering remarkable corrosion resistance and weldability. Typical mechanical properties include a tensile strength of around 620 MPa, a yield strength of approximately 483 MPa, and good creep resistance at higher temperatures. This alloy has a density of 4.48 g/cm³ and maintains its structural integrity even in high-temperature and oxidizing environments, making it ideal for specialized industrial applications.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

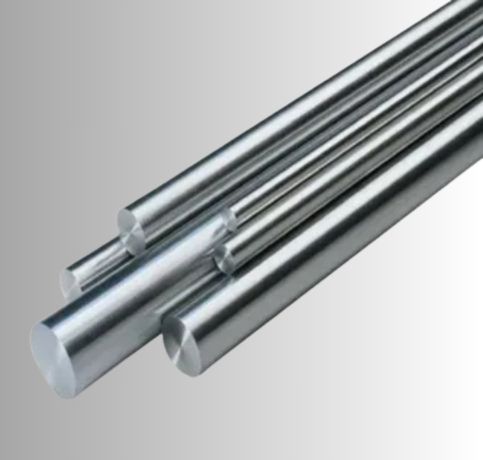

| Round bar size : | Diameter: 3-~800mm |

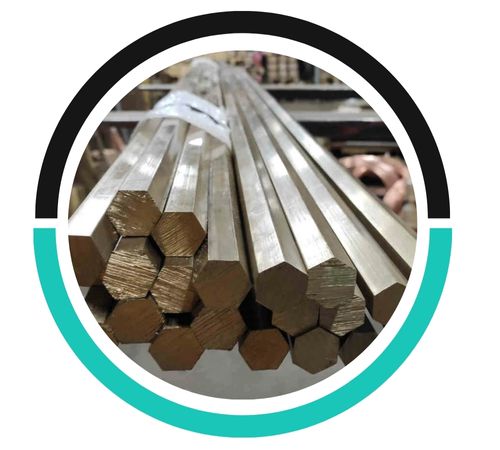

| Hex Bar size : | 2-100mm A/F |

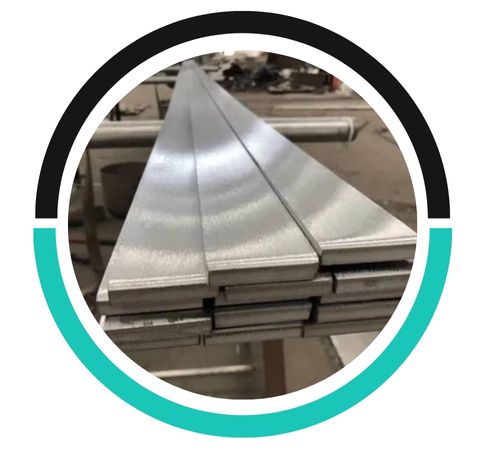

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

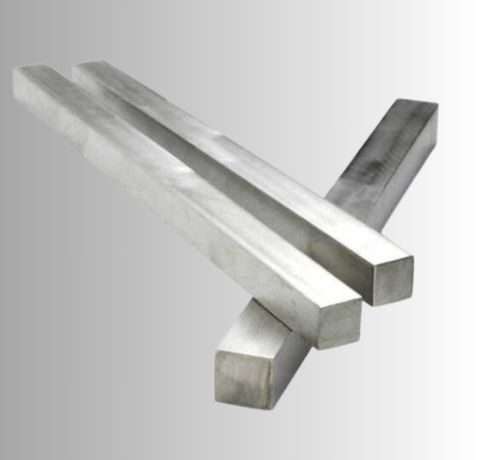

| Square bar size : | 4 to 100mm |

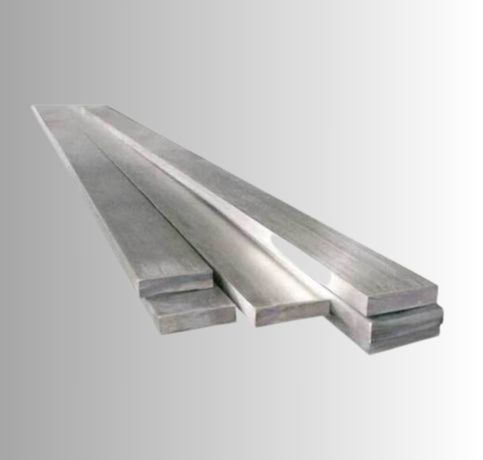

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |

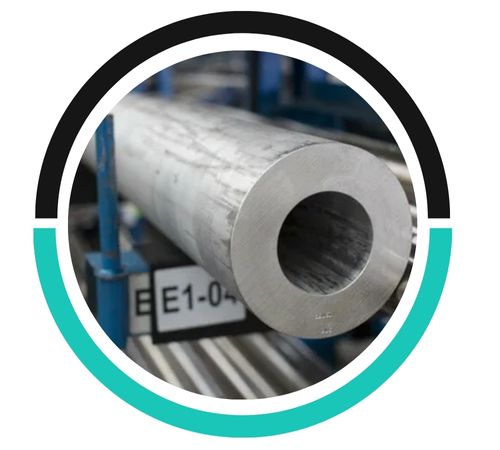

| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 6 | 3.7114 | R54520 |
| Grade | C | Fe | N | Ti | H | O | Al | Sn |
| Titanium Gr. 6 | .08 max | 0.50 max | .05 max | Balance | .0175 – .020 | .20 max | 4.0 – 6.0 | 2.0 – 3.0 |
| Element | Min.Tensile(KSI) | Min.Yield(KSI) | Hardness | Tensile Modulus | Poisson’s Ratio |
| Ti Grade 6 | 50 | 40 | 14.9 | 103 GPa | 0.34-0.10 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |

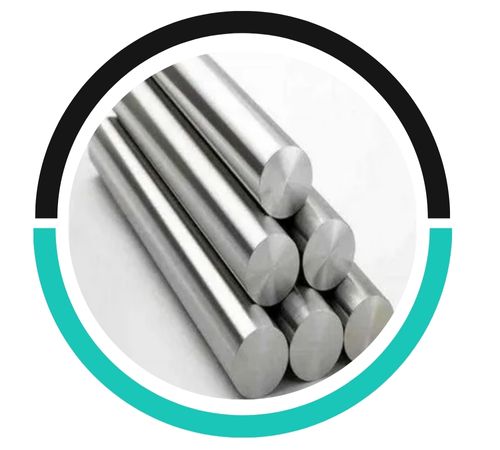

| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 6 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Titanium Grade 6 Bars and Rods find their place in various applications that require a blend of moderate strength, corrosion resistance, and good weldability. In the aerospace sector, they are used for hydraulic systems, airframe components, and engine parts that operate under high temperatures. The power generation industry employs them in turbine components and heat exchangers, thanks to their stability under thermal stress. In the marine industry, Grade 6 is utilized for seawater-resistant fittings and structural components. Additionally, it plays a crucial role in chemical processing equipment, ensuring durability and reliability in challenging environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
